4. Pull the module straight out.
5. Insert the new module onto the rails and push it straight in.
6. Tighten the top and bottom screws to fasten the module in place.

Changing Module Labels

The labels on the extraction handles or levers can be changed.
Slide the clear label cover sideways as shown in the figure below and insert a desired
label in place.
Important - Rack must be set in the rack disarm mode before any module is
removed. Be sure to read "Disarm" chapter thoroughly and understand it.
SKF Multilog On-Line System IMx-M
User Manual

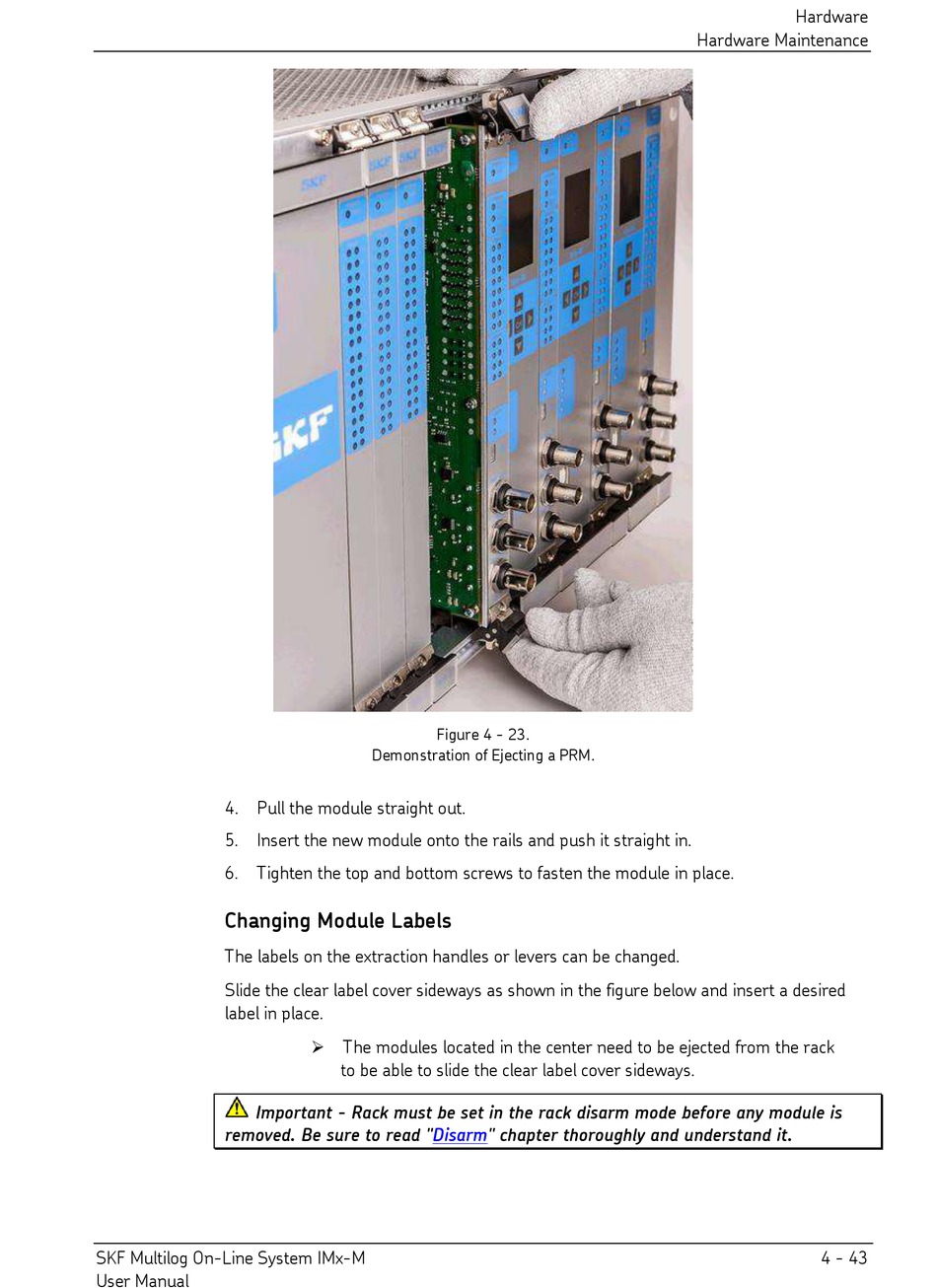

Figure 4 - 23.
Demonstration of Ejecting a PRM.
 The modules located in the center need to be ejected from the rack
to be able to slide the clear label cover sideways.
