Configuration Examples

Absolute Shaft Vibration

SKF Multilog On-Line System IMx-M
User Manual
Configuring a Casing Vibration Channel
Edit an analog channel setting by setting the Type to Casing vibration, the
Math Method to Single integration, the Engineering Units (EU) to µm, and the
Detection type to Peak-to-Peak (PtP), P (true Peak) or RMS (true Root Mean
Square Averaging).
The channel selected must be one of a channel pair (i.e. If channel 3 is selected,
the shaft vibration channel must be channel 4, or if channel 6 is selected, the
shaft vibration channel must be channel 5).

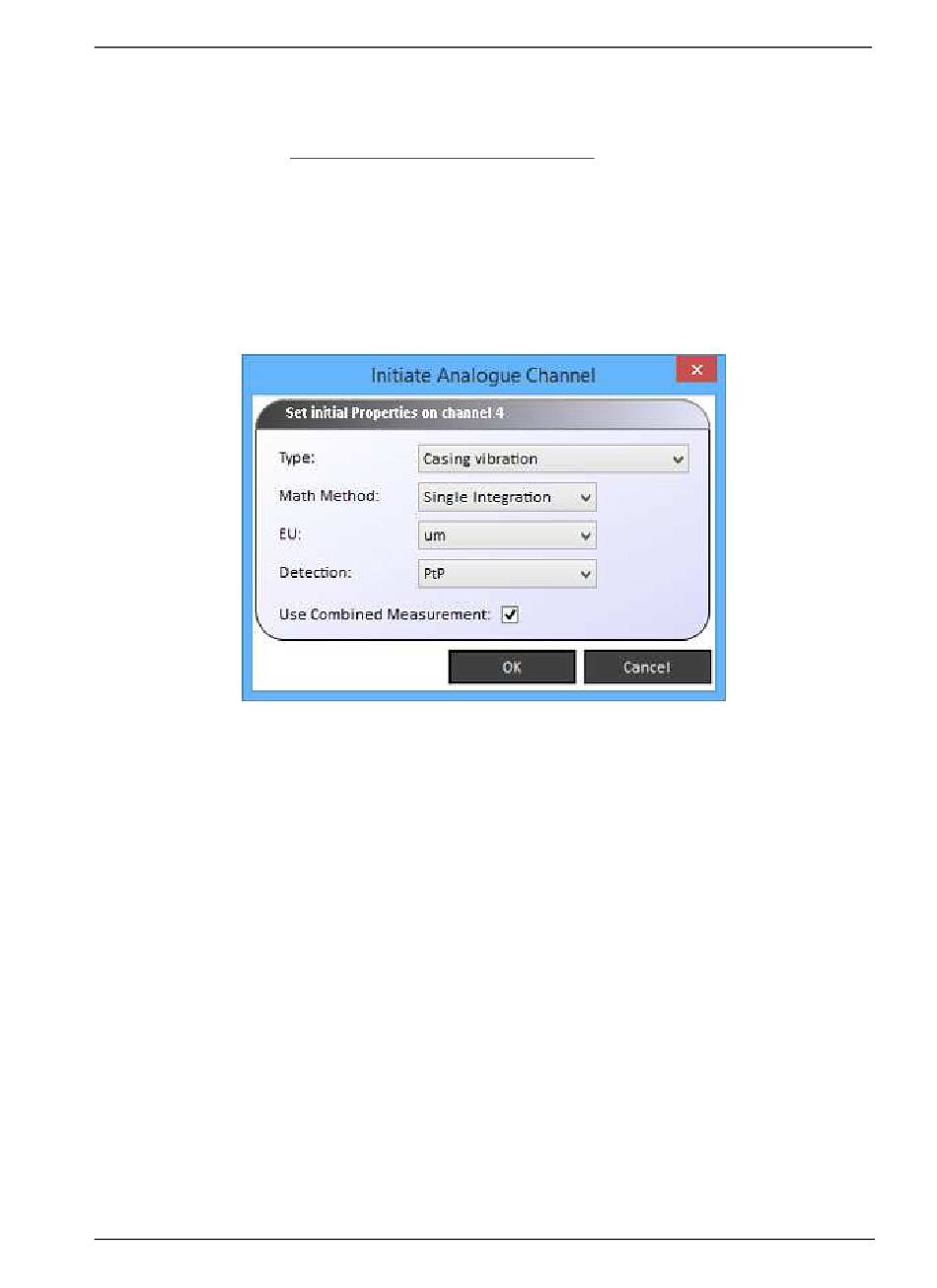

Figure 2 - 105.
Initiating a Casing Vibration Analog Channel.
For this example, we will configure the casing vibration channel as shown in
the three figures below.
Protection Module Configuration with IMx-M Manager
Protection
2 - 143
