Advanced Analog and Digital Channel Setup

Although basic "n out of N" voting logic is a very powerful technique for configuring
relay logic, there are circumstances where it is simply not versatile enough. For those
situations, the IMx-M Manager allows for the flexible logic grouping of up to three
separate conditions, simply by selecting the Advanced... Channel Setup option.
For an example: RELAY = (CH1 OR CH2) AND (CH3 OR CH4) AND (CH5 OR CH6)
We would configure the Channel Setup dialog as shown in the figure below.
SKF Multilog On-Line System IMx-M
User Manual
Protection Module Configuration with IMx-M Manager

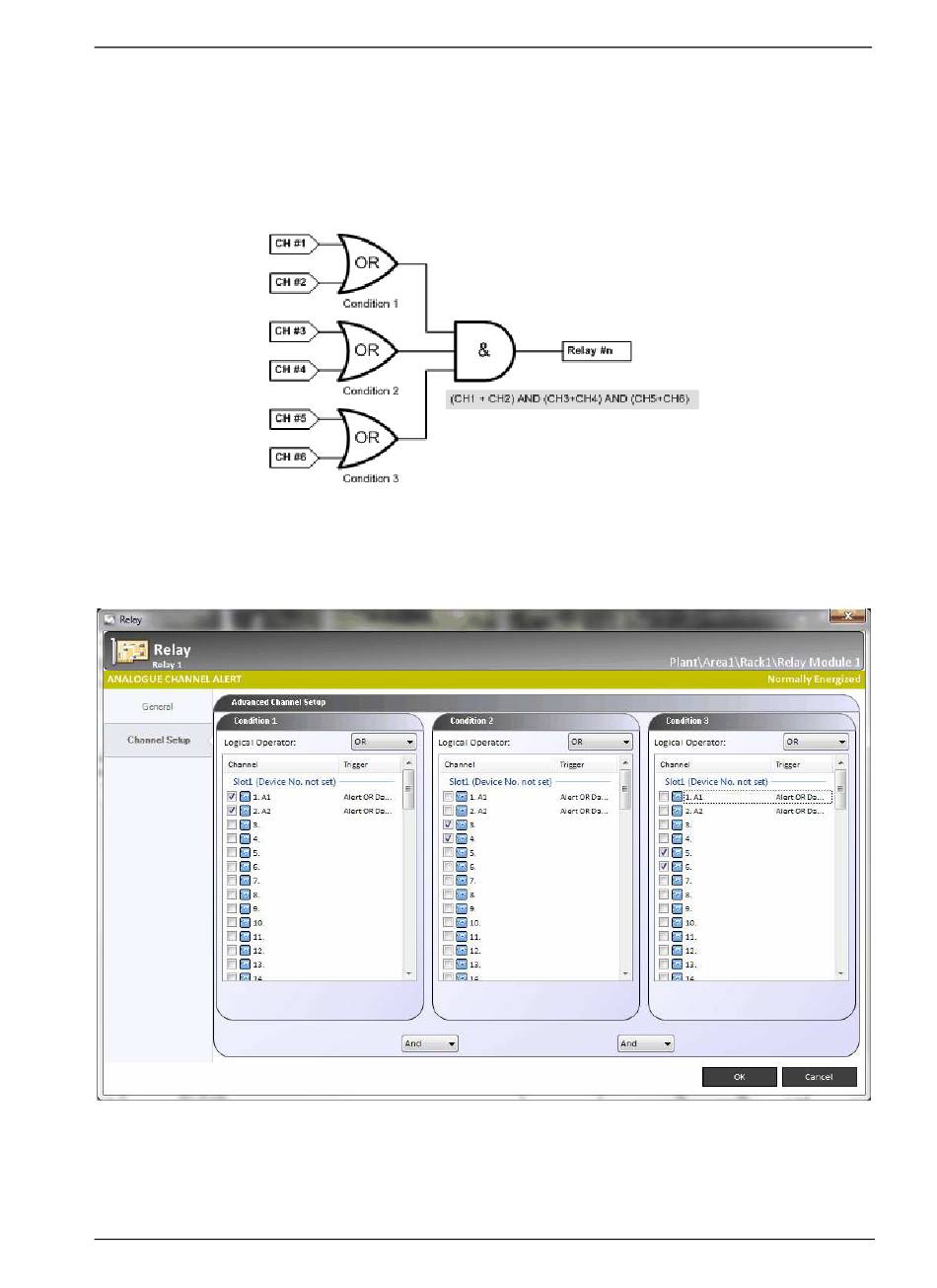

Figure 2 - 103.
Example of Advanced Channel Setup.
Figure 2 - 104.
Configuring an Advanced Channel Setup.
