Hardware
Hardware Configuration

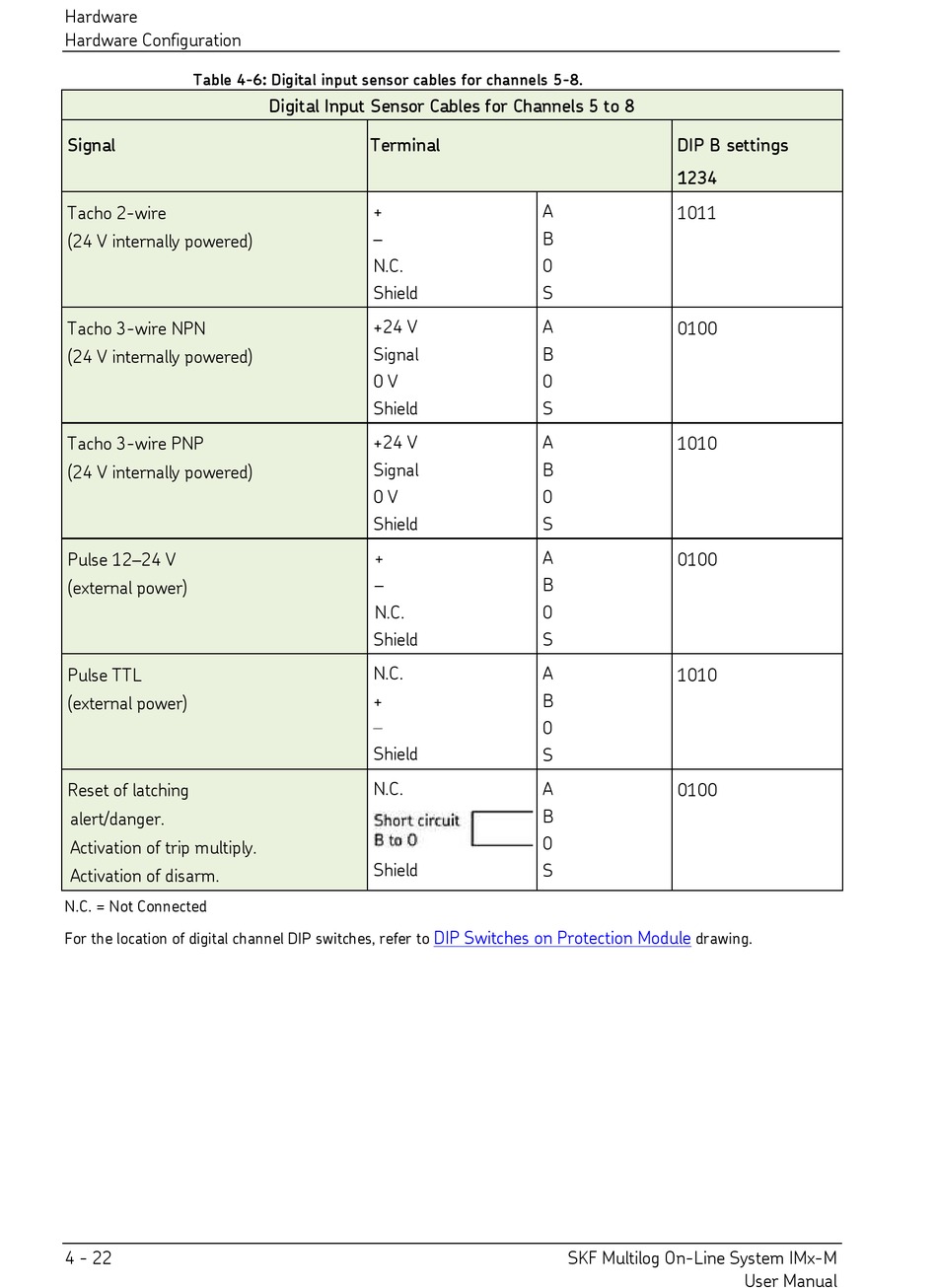

Table 4-6: Digital input sensor cables for channels 5-8.
Signal
Tacho 2-wire
(24 V internally powered)
Tacho 3-wire NPN
(24 V internally powered)
Tacho 3-wire PNP
(24 V internally powered)
Pulse 12–24 V
(external power)
Pulse TTL
(external power)
Reset of latching
alert/danger.
Activation of trip multiply.
Activation of disarm.
N.C. = Not Connected
For the location of digital channel DIP switches, refer to
4 - 22
Digital Input Sensor Cables for Channels 5 to 8
Terminal
+
–
N.C.
Shield
+24 V
Signal
0 V
Shield
+24 V
Signal
0 V
Shield
+
–
N.C.
Shield
N.C.
+

Shield
N.C.
Shield
DIP Switches on Protection Module
DIP B settings
1234
A
1011
B
0
S
A
0100
B
0
S
A
1010
B
0
S
A
0100
B
0
S
A
1010
B
0
S
A
0100
B
0
S
drawing.
