Condition Monitoring Module (CMM)

The following table summarizes the behavior of LED indicators on each condition
monitoring module.
Table 4-10: CMM LED indicators.
LED Indicator
STATUS Ready
Con
Link1, Link2
Act1, Act2

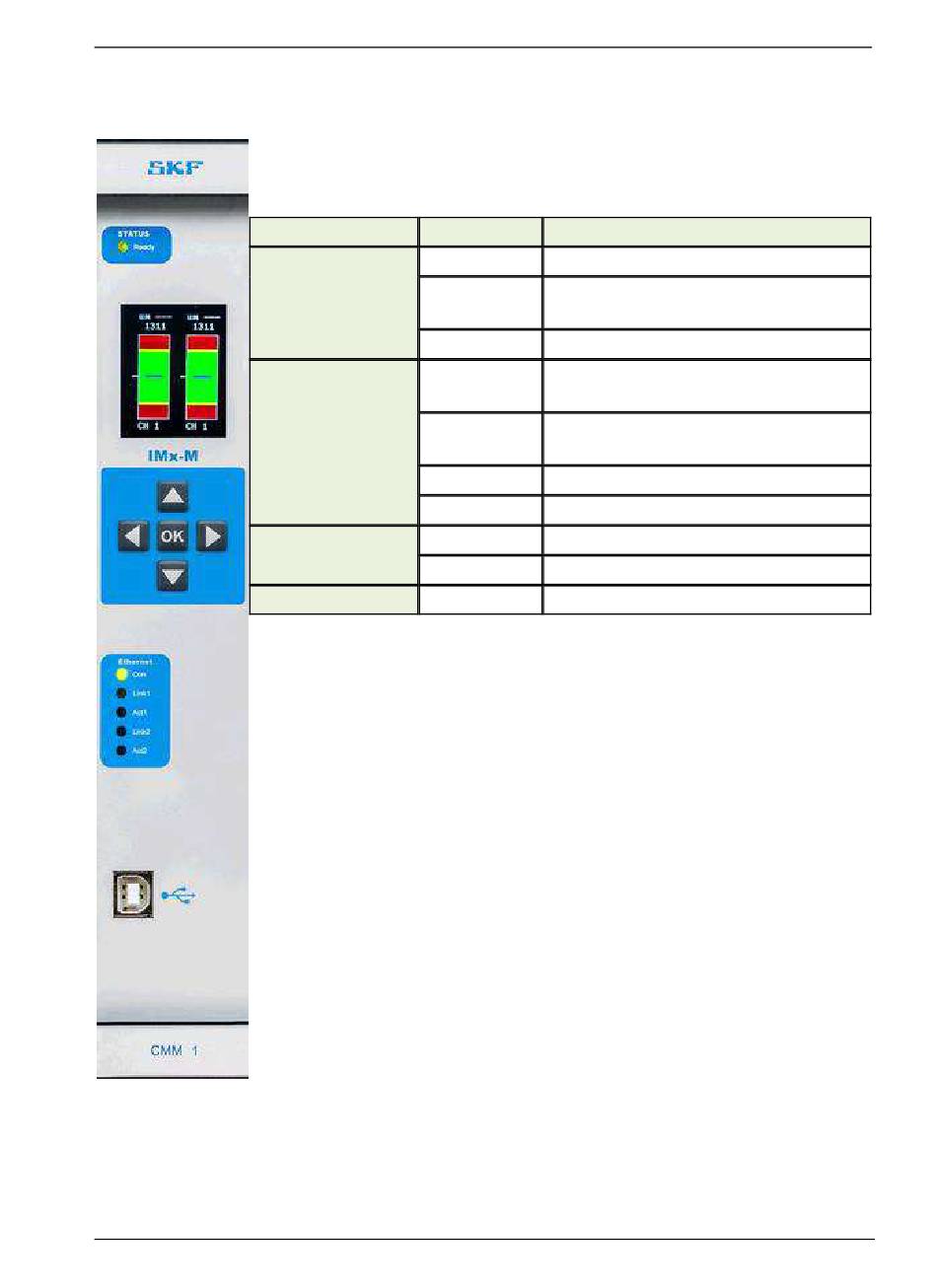

Figure 4 - 21.
CMM Front View.
SKF Multilog On-Line System IMx-M
User Manual
Behavior Description
Red Internal CMM error
Green slow CMM configured & running
flash
Green fast flash CMM startup
Green on SKF @ptitude Observer Monitor is
connected
Green slow Trying to connect SKF @ptitude Observer
flash Monitor
Green fast flash Server forced the connection
Off Server not connected
Green on Ethernet link connected
Yellow flash Traffic on the network
Off Ethernet link not connected
