Protection
IMx-M Manager
2 - 72

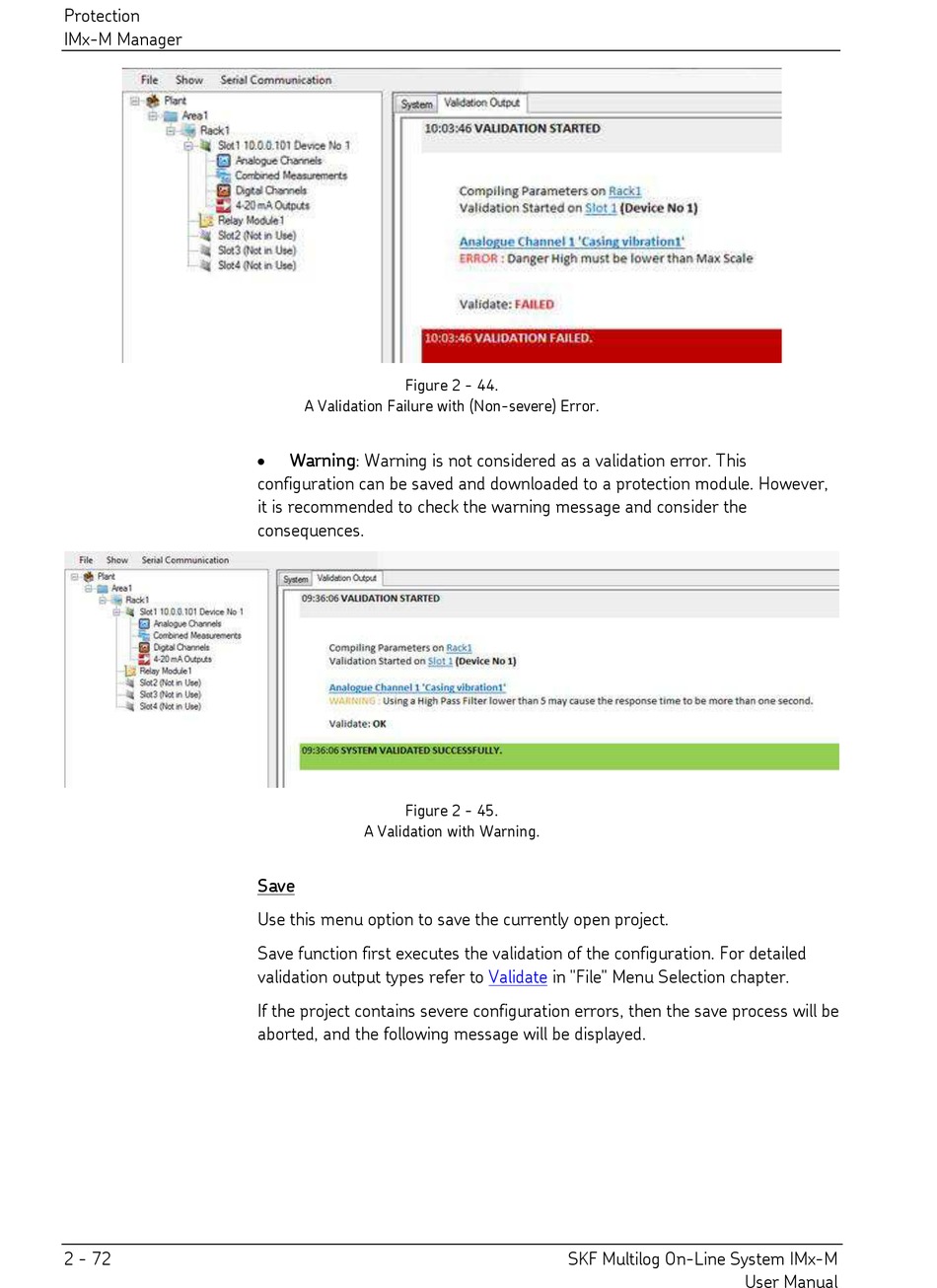

Figure 2 - 44.
A Validation Failure with (Non-severe) Error.
Warning: Warning is not considered as a validation error. This
configuration can be saved and downloaded to a protection module. However,
it is recommended to check the warning message and consider the
consequences.
Figure 2 - 45.
A Validation with Warning.
Save
Use this menu option to save the currently open project.
Save function first executes the validation of the configuration. For detailed
validation output types refer to
If the project contains severe configuration errors, then the save process will be
aborted, and the following message will be displayed.
Validate
in "File" Menu Selection chapter.
SKF Multilog On-Line System IMx-M
User Manual
