Technical Data
Drawings and Connections

CMM + PRM Slot Connections

Analog Inputs

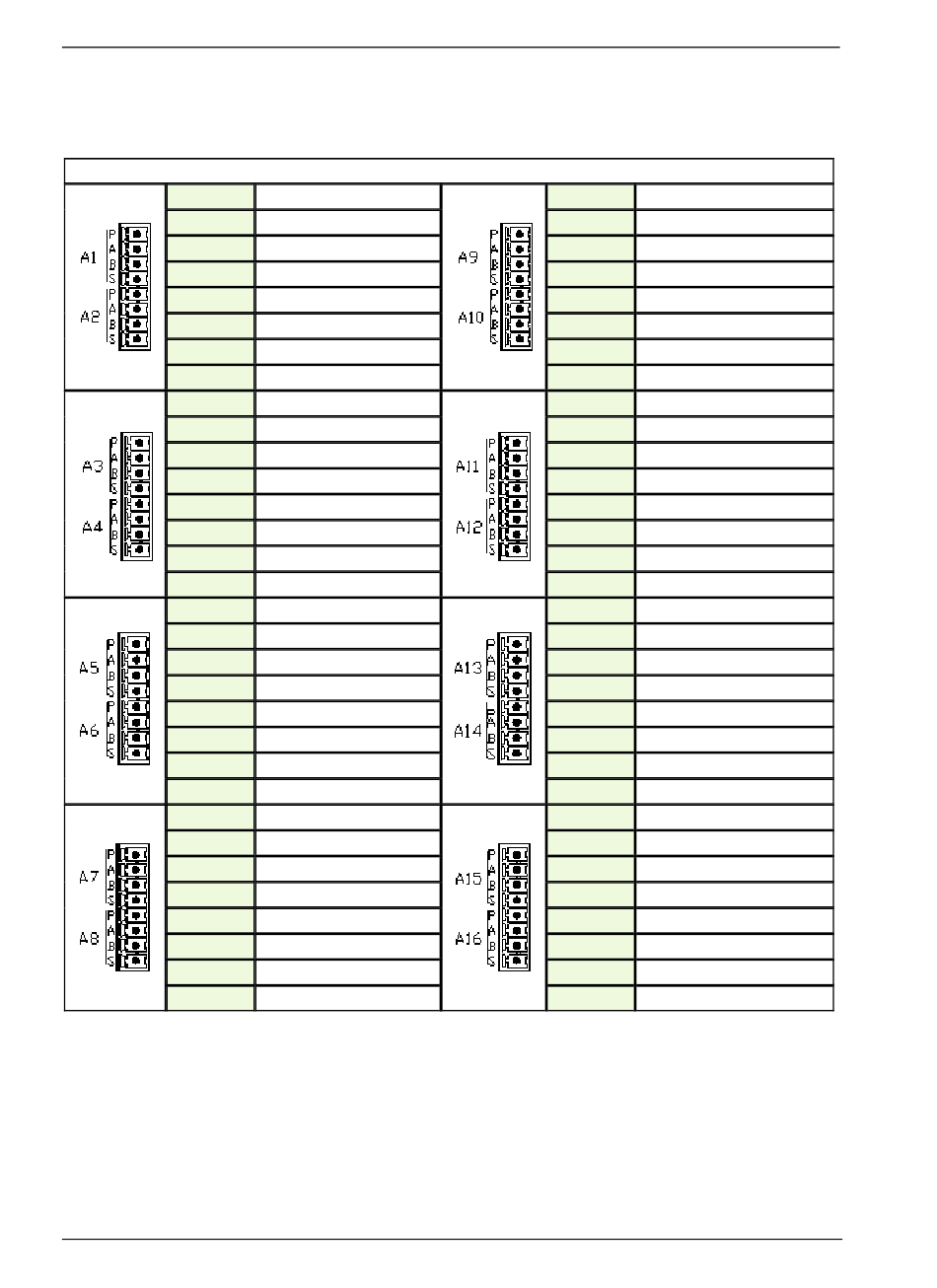

Table 7-1: CMM + PRM slot connections - Analog Inputs.
A1 P
A1 A
A1 B
A1 S
A2 P
A2 A
A2 B
A2 S
A3 P
A3 A
A3 B
A3 S
A4 P
A4 A
A4 B
A4 S
A5 P
A5 A
A5 B
A5 S
A6 P
A6 A
A6 B
A6 S
A7 P
A7 A
A7 B
A7 S
A8 P
A8 A
A8 B
A8 P
7 - 14
Analog Inputs on the back of CMM+PRM Slot
Analog ch 1 Power
Analog ch 1 A
Analog ch 1 B
Analog ch 1 Shield
Analog ch 2 Power
Analog ch 2 A
Analog ch 2 B
Analog ch 2 Shield
Analog ch 3 Power
Analog ch 3 A
Analog ch 3 B
Analog ch 3 Shield
Analog ch 4 Power
Analog ch 4 A
Analog ch 4 B
Analog ch 4 Shield
Analog ch 5 Power
Analog ch 5 A
Analog ch 5 B
Analog ch 5 Shield
Analog ch 6 Power
Analog ch 6 A
Analog ch 6 B
Analog ch 6 Shield
Analog ch 7 Power
Analog ch 7 A
Analog ch 7 B
Analog ch 7 Shield
Analog ch 8 Power
Analog ch 8 A
Analog ch 8 B
Analog ch 8 Shield
A9 P Analog ch 9 Power
A9 A Analog ch 9 A
A9 B Analog ch 9 B
A9 S Analog ch 9 Shield
A10 P Analog ch 10 Power
A10 A Analog ch 10 A
A10 B Analog ch 10 B
A10 S Analog ch 10 Shield
A11 P Analog ch 11 Power
A11 A Analog ch 11 A
A11 B Analog ch 11 B
A11 S Analog ch 11 Shield
A12 P Analog ch 12 Power
A12 A Analog ch 12 A
A12 B Analog ch 12 B
A12 S Analog ch 12 Shield
A13 P Analog ch 13 Power
A13 A Analog ch 13 A
A13 B Analog ch 13 B
A13 S Analog ch 13 Shield
A14 P Analog ch 14 Power
A14 A Analog ch 14 A
A14 B Analog ch 14 B
A14 S Analog ch 14 Shield
A15 P Analog ch 15 Power
A15 A Analog ch 15 A
A15 B Analog ch 15 B
A15 S Analog ch 15 Shield
A16 P Analog ch 16 Power
A16 A Analog ch 16 A
A16 B Analog ch 16 B
A16 S Analog ch 16 Shield
