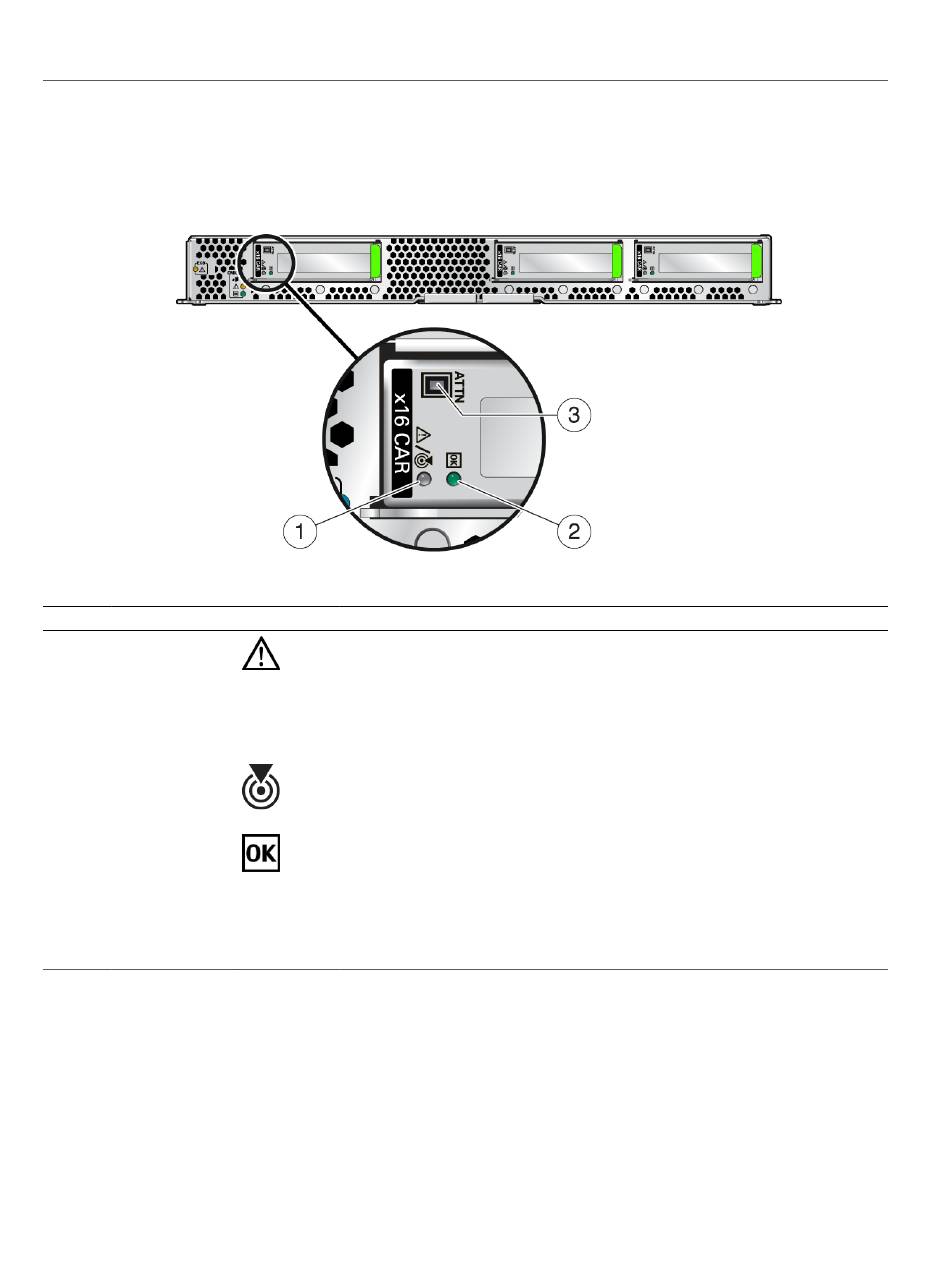

PCIe Card Carrier LEDs and Controls

No. LED
1 Service Required
(amber) and
Locator LED
2 OK (green)
3 Attention
Required
Related Information
"Checking for Faults" on page 35
■
"Interpreting LEDs" on page 44
■
Icon Description
The Service Required LED indicates that service is required.
The show faulty command provides details about any faults that cause this indicator to
light.
The Locator LED blinks to indicate the locate functionality.
Indicates these conditions:
■ Off – PCIe card carrier is not running in its normal state.
■ Steady on – PCIe card is powered on and is running in its normal operating state. No
service actions are required. You cannot remove the PCIe card.
ATTN Indicates an operational fault. You can also press this button to alert the server to a newly
installed PCIe card.
PCIe Card Carrier LEDs and Controls
