The small connector pins on the back of the assembly are susceptible to damage. It
Caution -
is important that you align the assembly in the chassis and install the assembly slowly to avoid
bending or otherwise damaging the connector pins.

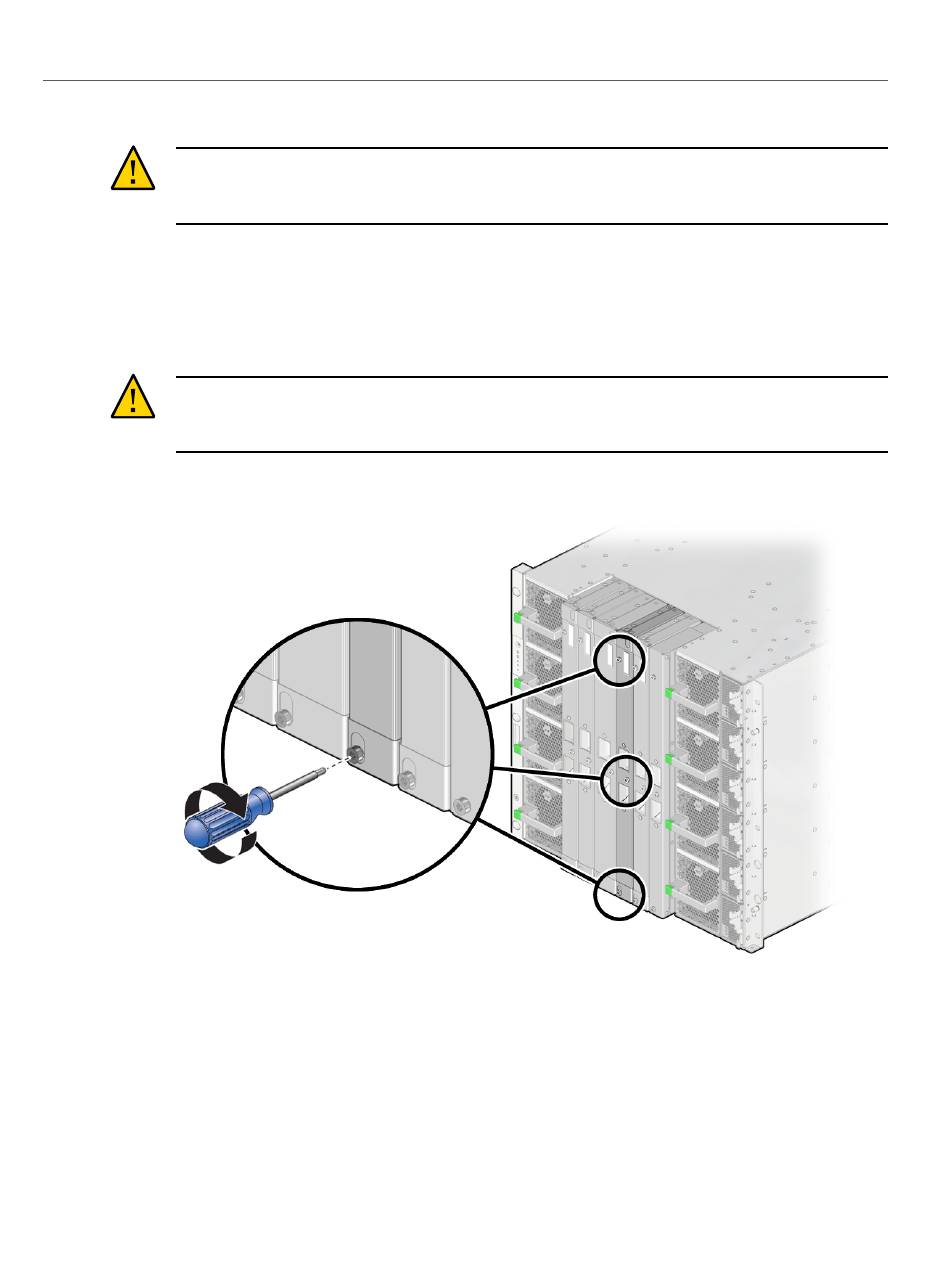

Secure the internal interconnect assembly by hand tightening the three captive
2.
screws while ensuring that the screws install smoothly into the chassis.
Install the middle screws, then the top screws, and then the bottom screws by hand. Next, use a
T20 driver to hand tighten the screws, in the same order, until they are seated snugly.
Do not overtighten the screws. The screws bear down on an internal feature to secure
Caution -
the interconnect. The screw heads will appear to float when properly tightened. You can damage
the interconnect if you overtighten the screws.
Reseat all CMIOUs.
3.
See
"Servicing CMIOUs" on page
4.
Reseat the SP tray and reinstall the SPs.
83.
Servicing Internal Interconnect Assemblies
Install an Internal Interconnect Assembly
303
