Install an SP Internal Interconnect Assembly

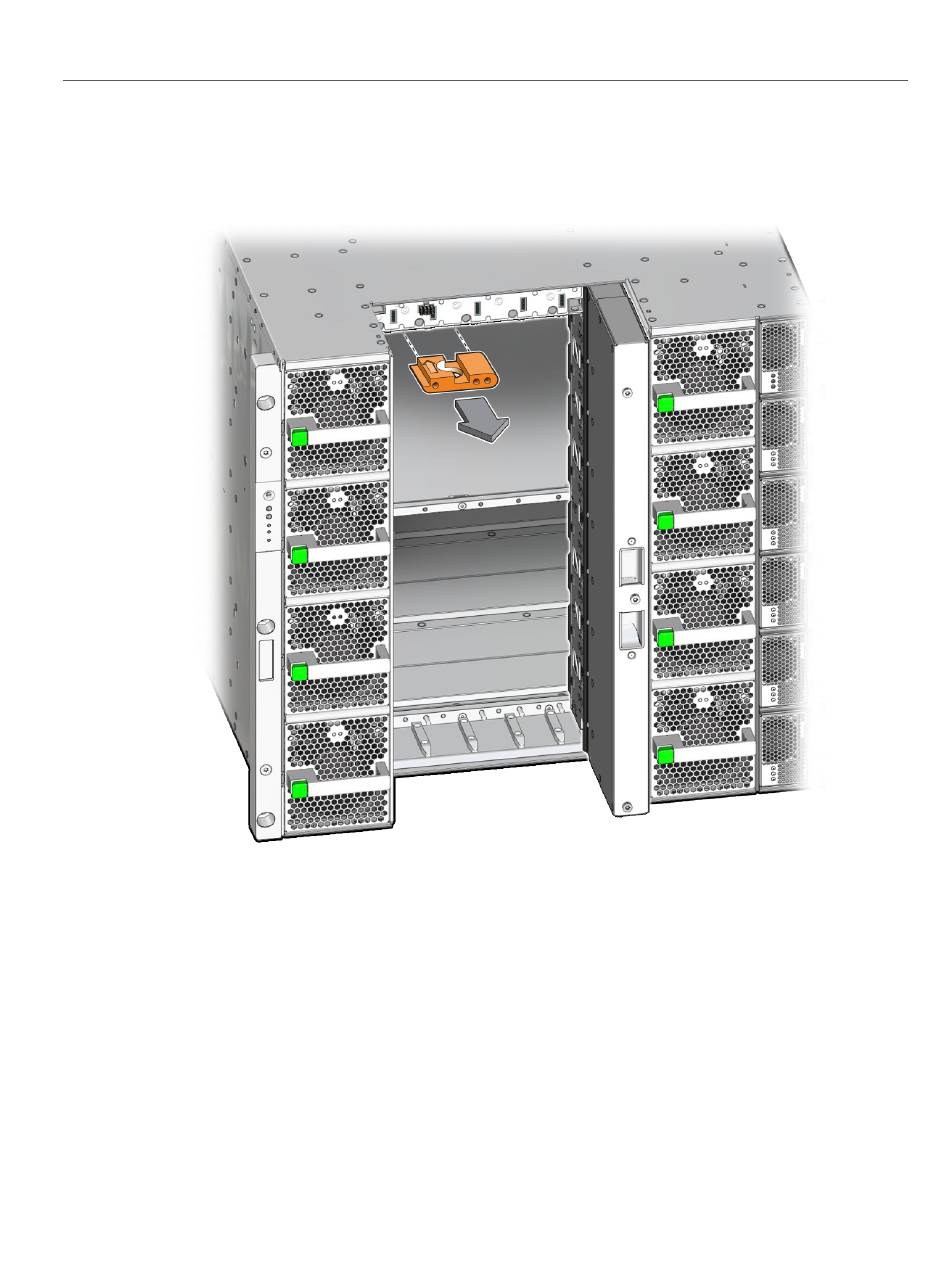

4. Remove the guide pin shield.
Complete the following steps to reinstall components you removed to service
5.
the assembly.
a. Reinstall all of the interconnect assemblies that you removed.
See
Interconnect Assemblies" on page
b. Reseat all CMIOUs or switch units from the impacted chassis.
See
294 SPARC M8 and SPARC M7 Servers Service Manual • September 2017
"Servicing Internal Interconnect Assemblies" on page 297
"Reseat a CMIOU" on page 101
305.
or "Reseat a Switch Unit" on page
or "Servicing External
196.
