Install an Internal Interconnect Assembly

Install an Internal Interconnect Assembly
Caution -
inserting one or more previously installed internal interconnect assemblies to the server (for
example, because you removed them to gain access to other components), you must return them
to their original locations in the server.

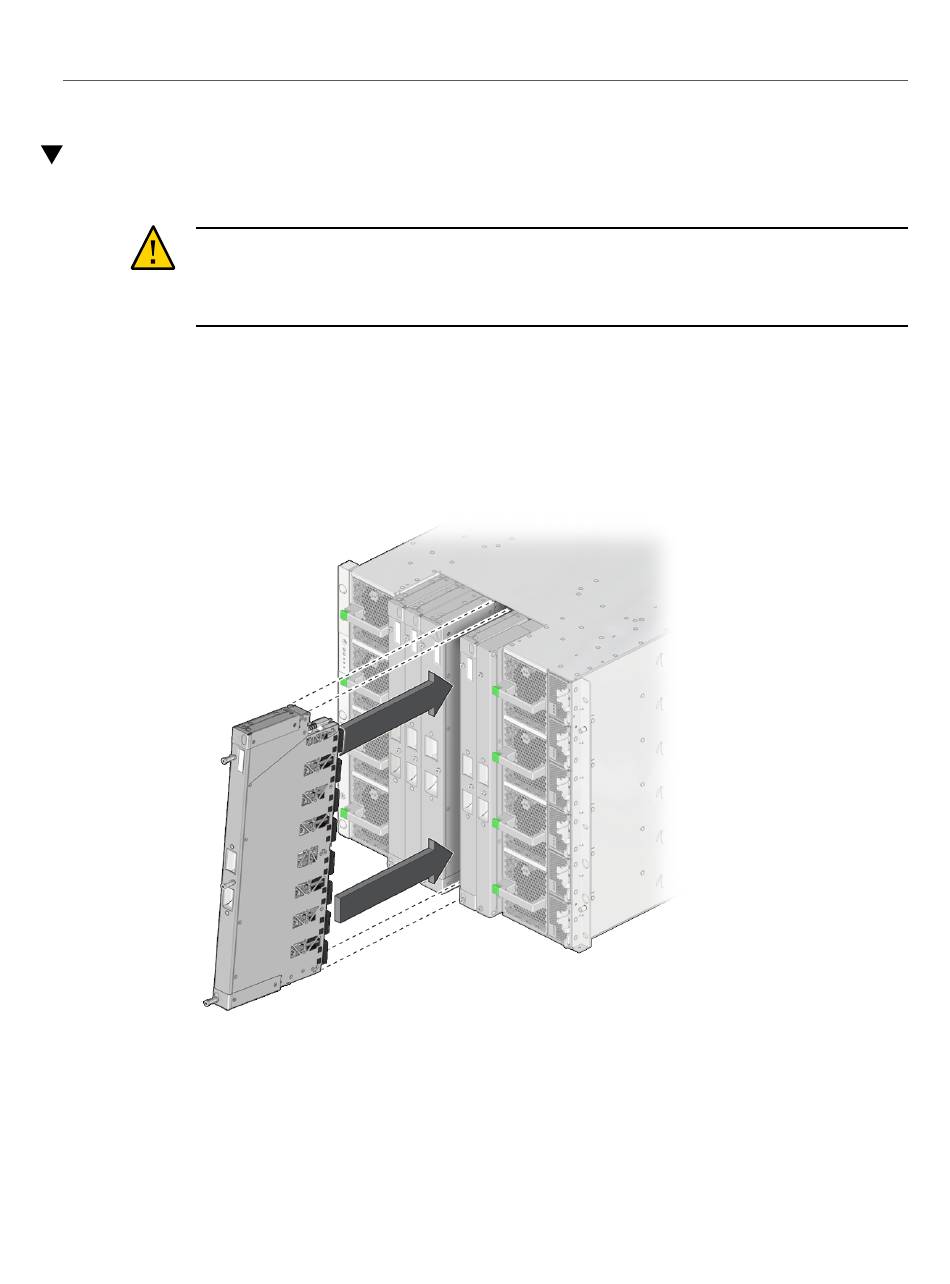

From the front of the server, carefully slide the internal interconnect assembly
1.
into the chassis.
Guide the TOP end of the assembly into place first, then guide the BOTTOM end into place.
Push the TOP end in until the safety latch clicks, then push in the BOTTOM end in.
302 SPARC M8 and SPARC M7 Servers Service Manual • September 2017
You must return internal interconnect assemblies to their original slots. If you are
