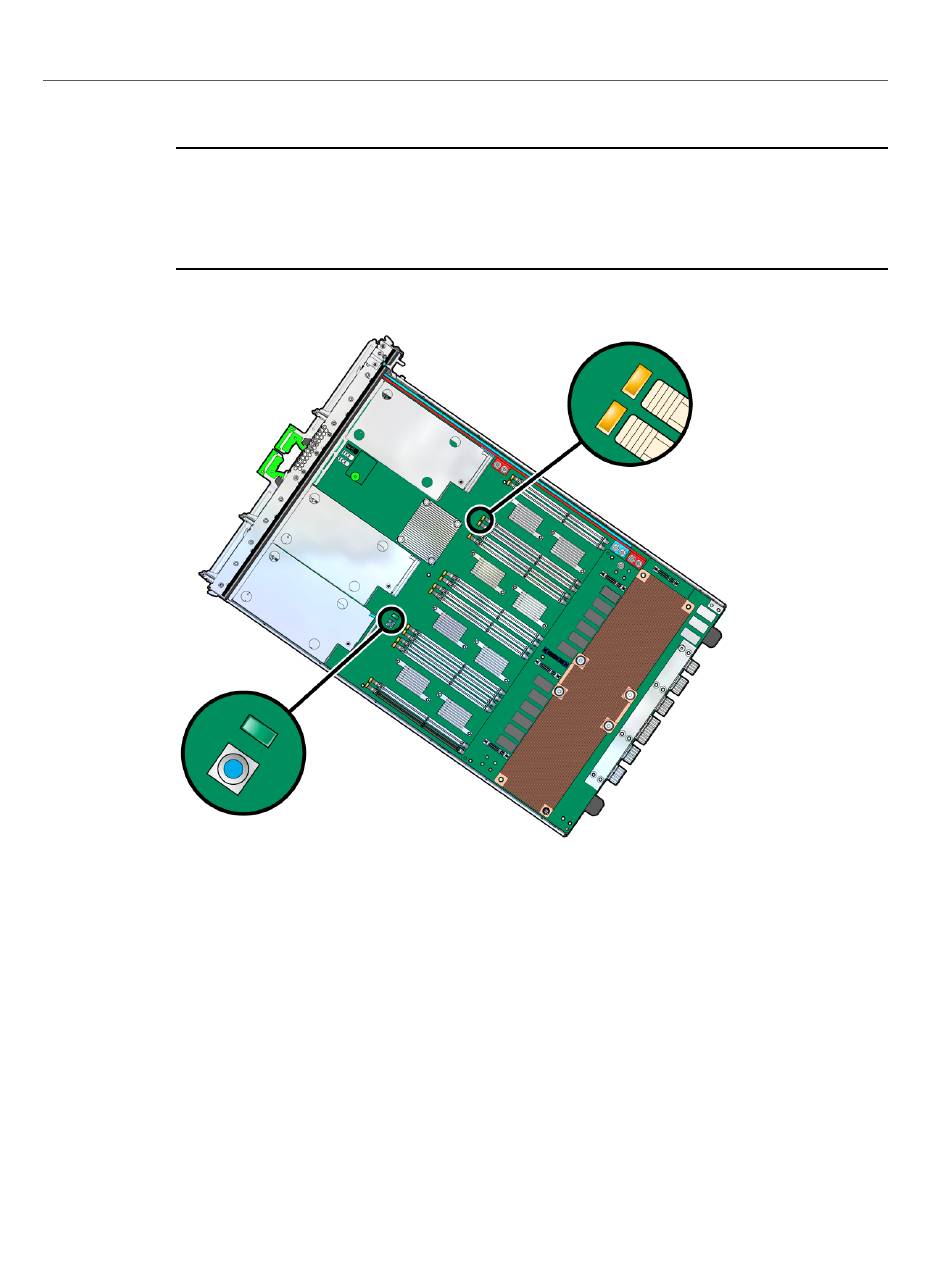

The following illustration shows the location of the green Fault Remind Power LED and
Note -
blue Fault Remind button on a SPARC M7 CMIOU. On a SPARC M8 CMIOU, the LED and
button are adjacent to the bottom DIMM slot (labeled BOB21/CH0/DIMM on the board). Although
their locations are different, the Fault Remind Power LED and Fault Remind Power button
operate the same way on both CMIOU types.
Confirm that the DIMM next to the illuminated DIMM Fault LED is the same DIMM
5.
that was reported to be faulty by the fmadm faulty command.
Read the DIMM name text printed on the board next to the slot with the illuminated DIMM
Fault LED (for example, BOB01/CH1/DIMM). See
(Oracle ILOM)" on page
Components" on page
6. Visually check to ensure that all of the other DIMMs are seated properly in their
slots.
109, "DIMM Names" on page
36.
Determine Which DIMM Is Faulty (LEDs)
"Determine Which DIMM Is Faulty
108, and "Identify Faulted
