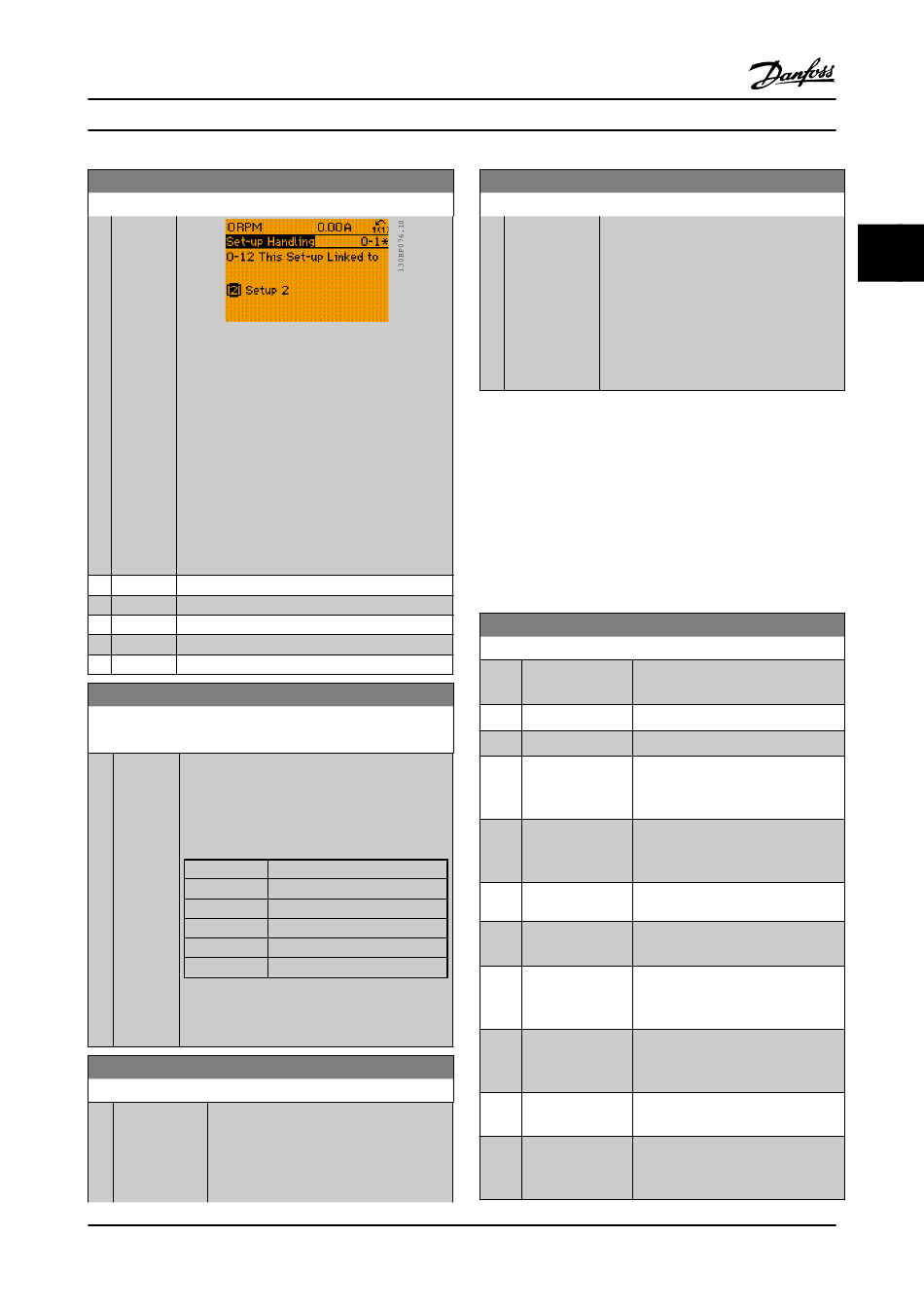

Parameter Description
0-12 This Set-up Linked to
Option: Function:
Figure 3.2
After the link is complete, 0-13 Readout: Linked
Set-ups will read {1,2} to indicate that all 'not
changeable during operation' parameters are
now the same in Set-up 1 and Set-up 2. If there
are changes to a "not changeable during
operation" parameter, e.g., 1-30 Stator Resistance
(Rs) in Set-up 2, they will also be changed
automatically in Set-up 1. A switch between Set-
up 1 and Set-up 2 during operation is now
possible.
[0] Not linked
[1] Set-up 1
[2] Set-up 2
[3] Set-up 3
[4] Set-up 4
0-13 Readout: Linked Set-ups
Array [5]
Range: Function:
0 [0 - 255 ] View a list of all the set-ups linked by means of
*
0-12 This Set-up Linked to. The parameter has one
index for each parameter set-up. The parameter
value displayed for each index represents which
set-ups are linked to that parameter set-up.
Index
0
1
2
3
4
Table 3.3 Example: Set-up 1 and Set-up 2 are
linked
0-14 Readout: Prog. Set-ups / Channel
Range: Function:
0 [-2147483648 View the setting of 0-11 Programming Set-
*
- 2147483647 ] up for each of the four different
communication channels. When the
number is displayed in hex, as it is in the
LCP, each number represents one channel.
®
VLT AQUA Drive Programming Guide
LCP value
{0}
{1,2}
{1,2}
{3}
{4}
®
MG20O622 - VLT is a registered Danfoss trademark
0-14 Readout: Prog. Set-ups / Channel
Range: Function:
Numbers 1-4 represent a set-up number; 'F'
means factory setting; and 'A' means active
set-up. The channels are, from right to left:
LCP, FC bus, USB, HPFB1.5.
Example: The number AAAAAA21h means
that the FC bus selected Set-up 2 in
0-11 Programming Set-up, the LCP selected
Set-up 1 and all others used the active set-
up.
3.2.3 0-2* LCP Display
Define the variables displayed in the Graphical Local
Control Panel.
NOTICE!
Please refer to 0-37 Display Text 1, 0-38 Display Text 2 and
0-39 Display Text 3 for information on how to write display
texts.
0-20 Display Line 1.1 Small
Option: Function:
Select a variable for display in line 1,
left position.
[0] None No display value selected
[37] Display Text 1 Present control word
[38] Display Text 2 Enables an individual text string to
be written, for display in the LCP or
to be read via serial communication.
[39] Display Text 3 Enables an individual text string to
be written, for display in the LCP or
to be read via serial communication.
[89] Date and Time Displays the current date and time.
Readout
[953] Profibus Warning Displays Profibus communication
Word warnings.
[1005] Readout Transmit View the number of CAN control
Error Counter transmission errors since the last
power-up.
[1006] Readout Receive View the number of CAN control
Error Counter receipt errors since the last power-
up.
[1007] Readout Bus Off View the number of Bus Off events
Counter since the last power-up.
[1013] Warning View a DeviceNet-specific warning
Parameter word. One separate bit is assigned to
every warning.
3 3
