Parameter Description
The data are based on the value registered by the kWh
counter in the adjustable frequency drive. This counter
value can be read in 15-02 kWh Counter containing the
accumulated value since the first power-up or latest reset
of the counter (15-06 Reset kWh Counter).
All data for the energy log are stored in counters which
can be read from 23-53 Energy Log.

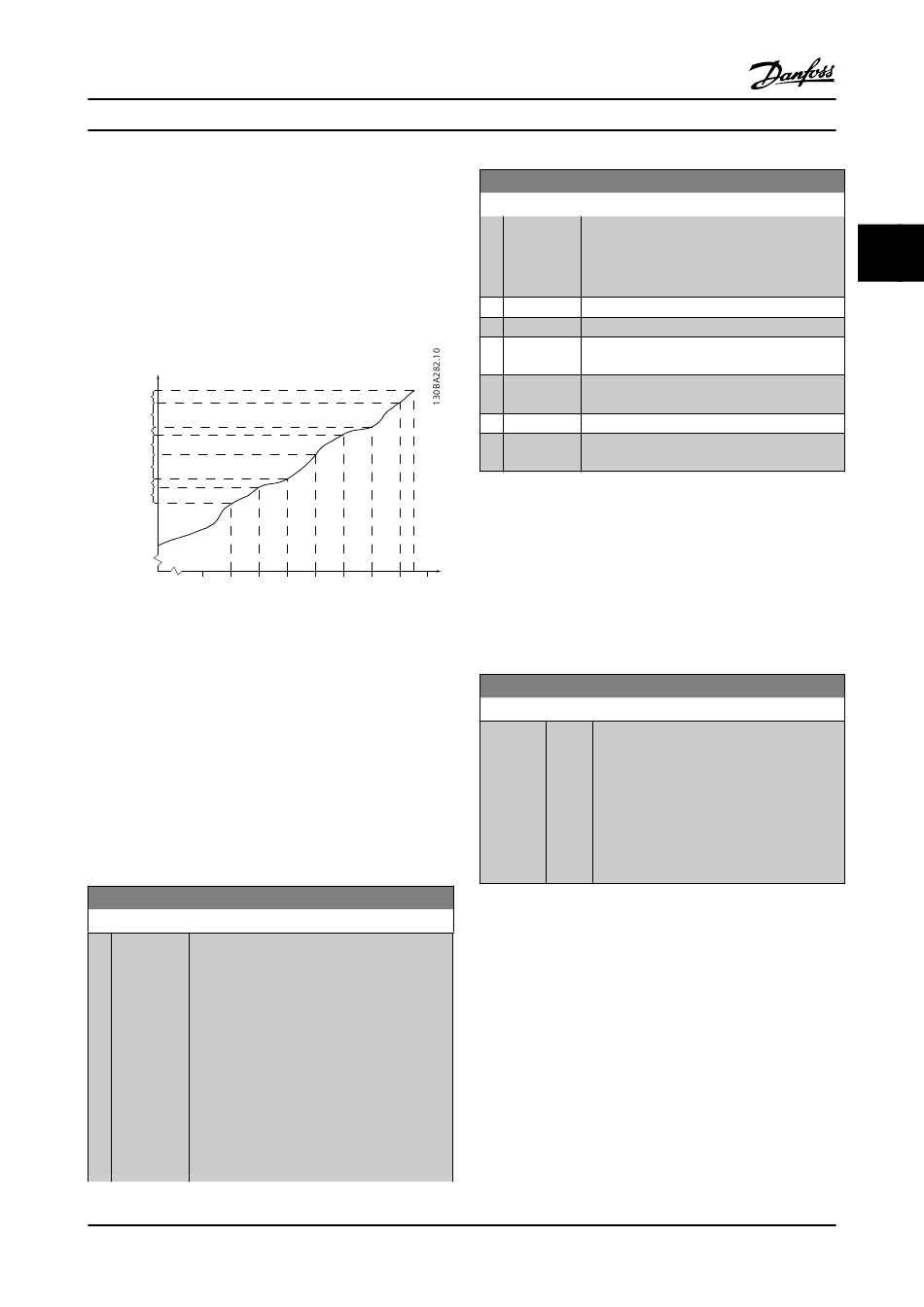

Σ kWh
(P 15-02, kWh Counter)
Counter 6
Counter 5
Counter 4
Counter 3
Counter 2
Counter 1
Counter 0
Figure 3.60
Counter 00 always contains the oldest data. A counter
covers a period from XX:00 to XX:59 if hours or 00:00 to
23:59 if days.
If logging either the last hours or last days, the counters
shift contents at XX:00 every hour or at 00:00 every day.
Counter with highest index will always be subject to
update (containing data for the actual hour since XX:00 or
the actual day since 00:00).
The contents of counters can be displayed as bars on the
LCP. Select Quick Menu, Loggings, Energy Log: Trending
Continued Bin/Trending Timed Bin/Trending Comparison.
23-50 Energy Log Resolution
Option: Function:
Select the desired type of period for logging of
consumption. [0] Hour of Day, [1] Day of Week
or [2] Day of Month. The counters contain the
logging data from the programmed date/time
for start (23-51 Period Start) and the numbers
of hours/days as programmed for (23-50 Energy
Log Resolution).
The logging will start on the date programmed
in 23-51 Period Start, and continue until one
day/week/month has gone. [5] Last 24 Hours,
[6] Last 7 Days or [7] Last 5 Weeks. The counters
contain data for one day, one week or five
weeks back in time and up to the current time.
®
VLT AQUA Drive Programming Guide
[0] Hour of Day
[1] Day of Week
[2] Day of
[5] Last 24
[6] Last 7 Days
[7] Last 5
NOTICE!
The adjustable frequency drive has no backup of the clock
function and the set date/time will reset to default
(2000-01-01 00:00) after a power-down unless a real time
clock module with backup is installed. Consequently, the
Days
logging will be stopped until date/time is readjusted in
0-70 Date and Time. In 0-79 Clock Fault, it is possible to
program a warning to be issued if the clock has not been
set properly, e.g., after a power-down.
Size
related
NOTICE!
When mounting an Analog I/O MCB 109 option card, a
battery backup of the date and time is included.
®
MG20O622 - VLT is a registered Danfoss trademark
23-50 Energy Log Resolution
Option: Function:
The logging will start at the date programmed
in 23-51 Period Start. In all cases, the period
split will refer to operating hours (time where
adjustable frequency drive is powered up).
Month
Hours
Weeks
23-51 Period Start
Range: Function:
[ 0 - Set the date and time at which the energy
0 ] log starts update of the counters. First data
*
will be stored in counter [00] and start at
the time/date programmed in this
parameter.
Date format will depend on setting in
0-71 Date Format and time format on setting
in 0-72 Time Format.
3 3
