3 Parameter descriptions
3.17.6 16-6* Inputs and Outputs
Parameters for reporting the digital and analog IO ports.
16-60 Digital Input
Range:
0 N/A*
[0 - 1023 N/A]
3
216
Function:

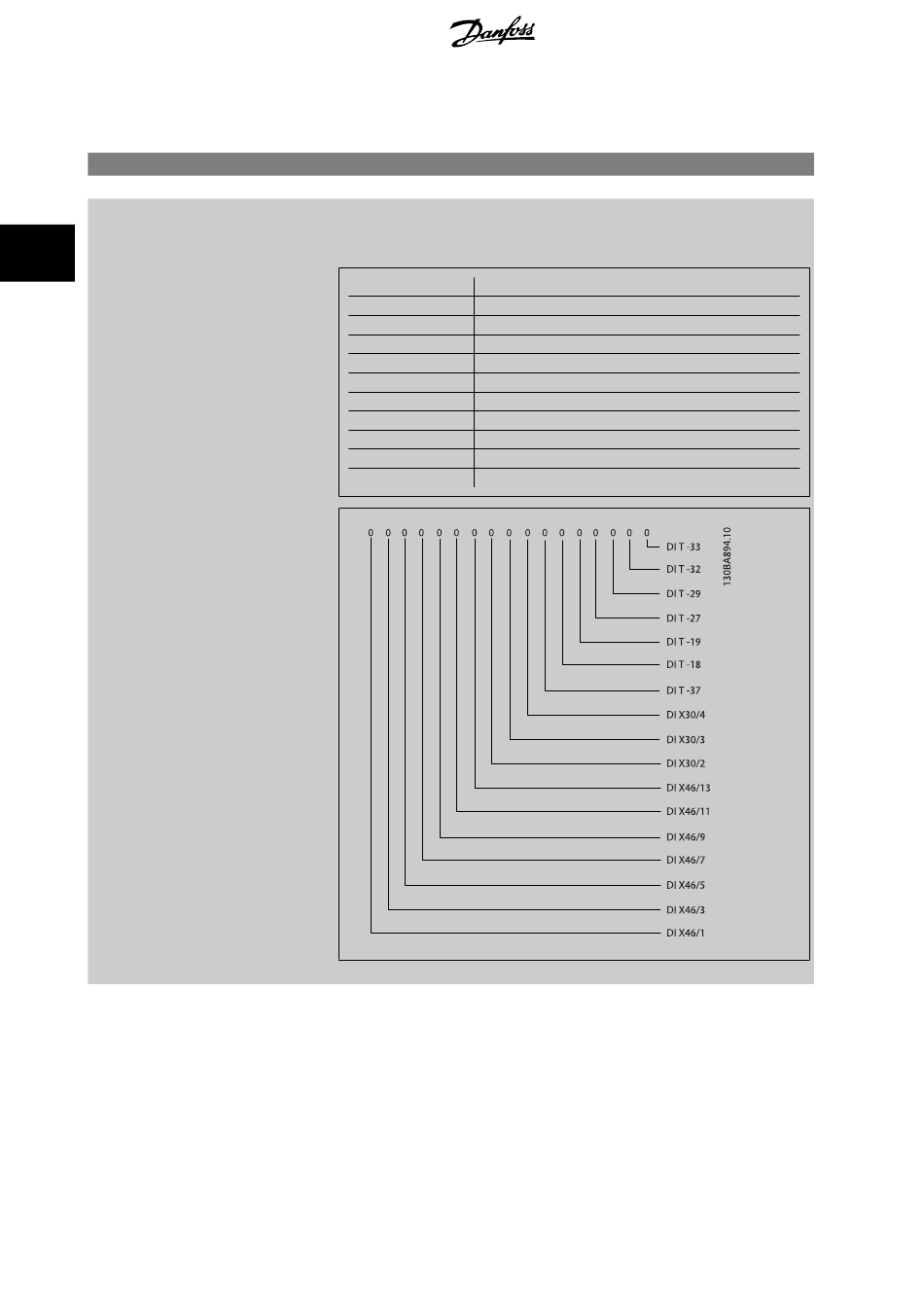

View the signal states from the active digital inputs. Example: Input 18 corresponds to bit no. 5, '0'
= no signal, '1' = connected signal. Bit 6 works in the opposite way, on = '0', off = '1' (safe stop
input).
Bit 0
Digital input term. 33
Bit 1
Digital input term. 32
Bit 2
Digital input term. 29
Bit 3
Digital input term. 27
Bit 4
Digital input term. 19
Bit 5
Digital input term. 18
Bit 6
Digital input term. 37
Bit 7
Digital input GP I/O term. X30/4
Bit 8
Digital input GP I/O term. X30/3
Bit 9
Digital input GP I/O term. X30/2
Bit 10-63
Reserved for future terminals
®
MG.33.M8.02 - VLT
is a registered Danfoss trademark
FC 300 Programming Guide
