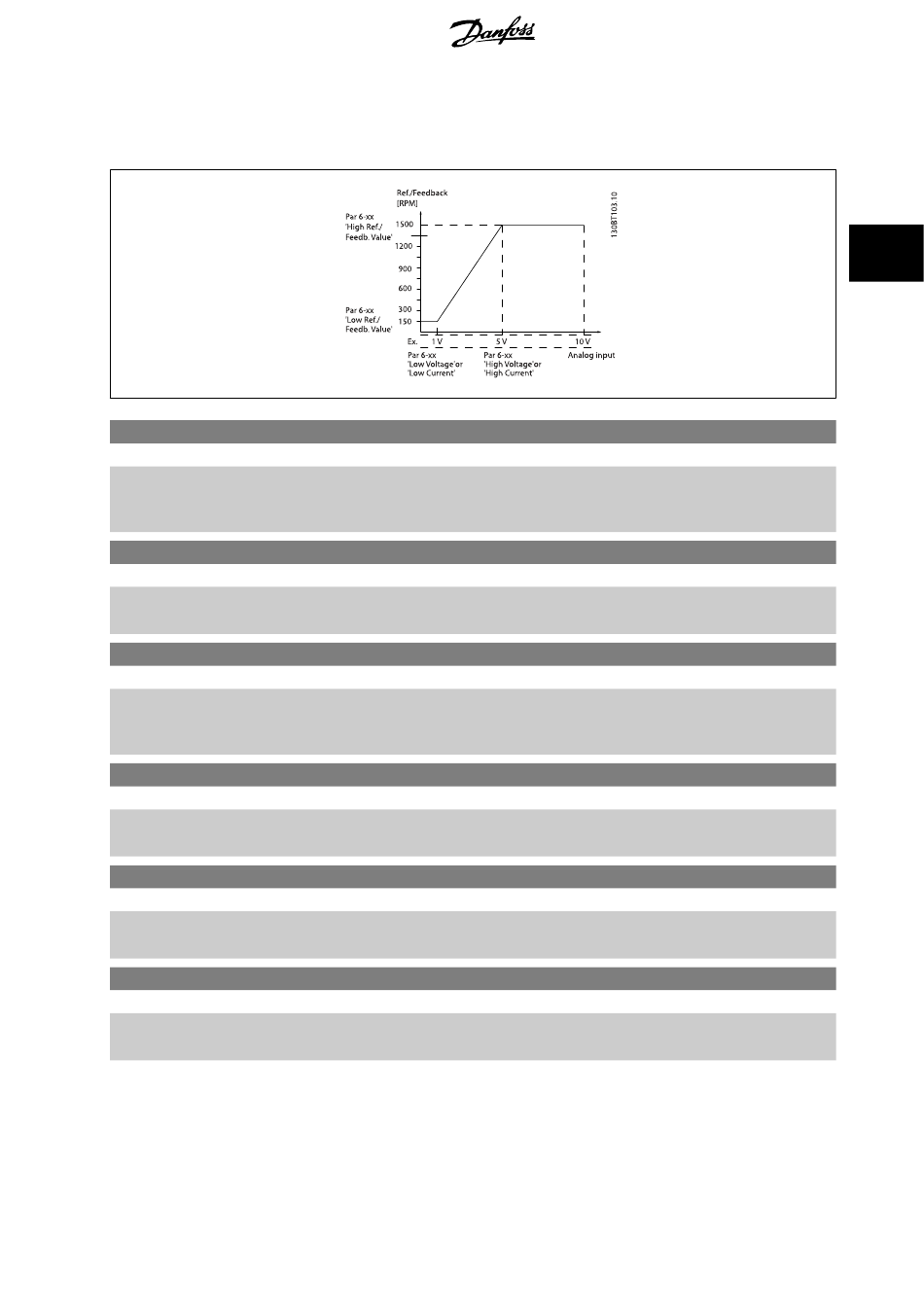

3.8.3 6-1* Analog Input 1
Parameters for configuring the scaling and limits for analog input 1 (terminal 53).
6-10 Terminal 53 Low Voltage
Range:
0.07 V* [Application dependant]
6-11 Terminal 53 High Voltage
Range:
10.00 V* [Application dependant]
6-12 Terminal 53 Low Current
Range:
0.14 mA* [Application dependant]
6-13 Terminal 53 High Current
Range:
20.00 mA* [Application dependant]
6-14 Terminal 53 Low Ref./Feedb. Value
Range:
0.000 N/A* [-999999.999 - 999999.999 N/A]
6-15 Terminal 53 High Ref./Feedb. Value
Range:
Application [-999999.999 - 999999.999 Refer-
dependent* enceFeedbackUnit]
Function:
Enter the low voltage value. This analog input scaling value should correspond to the minimum
reference value, set in par. 6-14 Terminal 53 Low Ref./Feedb. Value
Handling .
Function:
Enter the high voltage value. This analog input scaling value should correspond to the high refer-
ence/feedback value set in par. 6-15
Function:
Enter the low current value. This reference signal should correspond to the minimum reference
Minimum Reference
value, set in par. 3-02
Live Zero Time-out Function in par. 6-01
Function:
Enter the high current value corresponding to the high reference/feedback set in par. 6-15
53 High Ref./Feedb. Value
.
Function:
Enter the analog input scaling value that corresponds to the low voltage/low current set in
Terminal 53 Low Voltage
par. 6-10
Function:
Enter the analog input scaling value that corresponds to the maximum reference feedback value set
Terminal 53 High Voltage
in par. 6-11
®
