Branch Target Buffer

The Intel® XScale™ core uses dynamic branch prediction to reduce the penalties associated with
changing the flow of program execution. The Intel® XScale™ core features a branch target buffer
that provides the instruction cache with the target address of branch type instructions. The branch
target buffer is implemented as a 128-entry, direct mapped cache.
This chapter is primarily for those optimizing their code for performance. An understanding of the
branch target buffer is needed in this case so that code can be scheduled to best utilize the
performance benefits of the branch target buffer.
5.1

Branch Target Buffer (BTB) Operation

The BTB stores the history of branches that have executed along with their targets.
shows an entry in the BTB, where the tag is the instruction address of a previously executed branch
and the data contains the target address of the previously executed branch along with two bits of
history information.

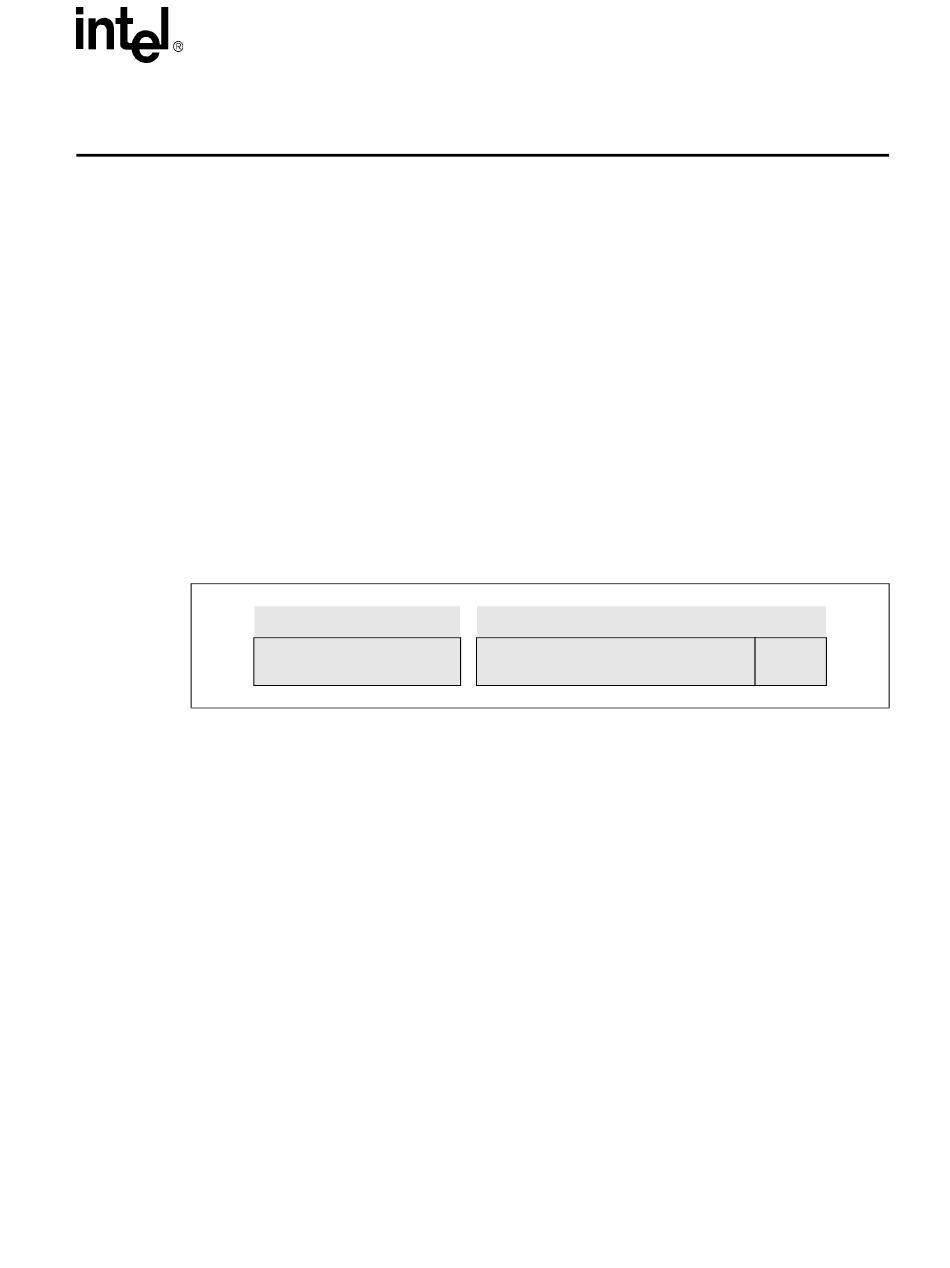

Figure 5-1. BTB Entry
The BTB takes the current instruction address and checks to see if this address is a branch that was
previously seen. It uses bits [8:2] of the current address to select the tag from the BTB and then
compares this tag to bits [31:9,1] of the current instruction address. If the current instruction
address matches the tag in the BTB and the history bits indicate that this branch is usually taken in
the past, the BTB uses the data (target address) as the next instruction address to send to the
instruction cache.
Bit[1] of the branch address is included in the tag comparison in order to support Thumb execution.
This organization means that two consecutive Thumb branch (B) instructions, with instruction
address bits[8:2] the same, will contend for the same BTB entry. Thumb also requires 31 bits for
the branch target address. In ARM* mode, bit[1] is zero.
The history bits represent four possible prediction states for a branch entry in the BTB.
"Branch History"
branches stored in the BTB is Weakly-Taken (WT). Every time a branch that exists in the BTB is
executed, the history bits are updated to reflect the latest outcome of the branch, either taken or not-
taken.
Chapter 11, "Performance Considerations"
by the BTB and the performance penalty for mispredicting a branch.
The BTB does not have to be managed explicitly by software, it is disabled by default after reset
and is invalidated when the instruction cache is invalidated.
Intel® XScale™ Microarchitecture User's Manual
TAG
Branch Address[31:9,1]
shows these states along with the possible transitions. The initial state for
DATA
Target Address[31:1]
describes which instructions are dynamically predicted
5
Figure 5-1
History
Bits[1:0]
Figure 5-2,
5-1
