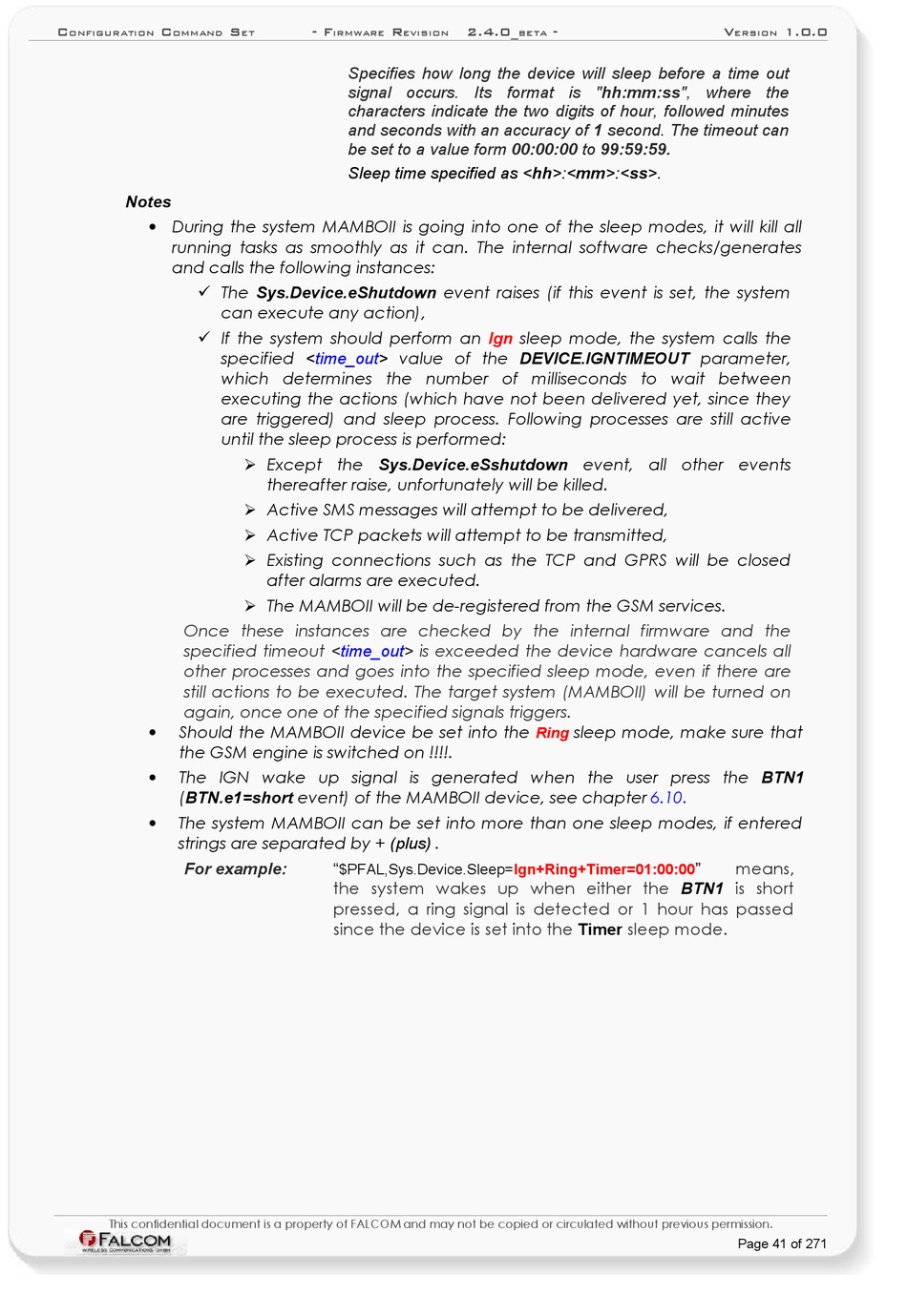

FALCOM MAMBOII User Manual page 41

C C
ONFIGURATION OMMAND
Notes
• During the system MAMBOII is going into one of the sleep modes, it will kill all
running tasks as smoothly as it can. The internal software checks/generates
and calls the following instances:
 The Sys.Device.eShutdown event raises (if this event is set, the system
can execute any action),
 If the system should perform an
specified <time_out> value of the DEVICE.IGNTIMEOUT parameter,
which determines the number of milliseconds to wait between
executing the actions (which have not been delivered yet, since they
are triggered) and sleep process. Following processes are still active
until the sleep process is performed:
Once these instances are checked by the internal firmware and the
specified timeout <time_out> is exceeded the device hardware cancels all
other processes and goes into the specified sleep mode, even if there are
still actions to be executed. The target system (MAMBOII) will be turned on
again, once one of the specified signals triggers.
•
Should the MAMBOII device be set into the
the GSM engine is switched on !!!!.
•
The IGN wake up signal is generated when the user press the BTN1
(BTN.e1=short event) of the MAMBOII device, see chapter
•
The system MAMBOII can be set into more than one sleep modes, if entered
strings are separated by + (plus) .
For example:
This confidential document is a property of FALCOM and may not be copied or circulated without previous permission.
S - F R
ET IRMWARE
Specifies how long the device will sleep before a time out
signal occurs. Its format is "hh:mm:ss", where the
characters indicate the two digits of hour, followed minutes
and seconds with an accuracy of 1 second. The timeout can
be set to a value form 00:00:00 to 99:59:59.
Sleep time specified as <hh>:<mm>:<ss>.
 Except the Sys.Device.eSshutdown event, all other events
thereafter raise, unfortunately will be killed.
 Active SMS messages will attempt to be delivered,
 Active TCP packets will attempt to be transmitted,
 Existing connections such as the TCP and GPRS will be closed
after alarms are executed.
 The MAMBOII will be de-registered from the GSM services.
"
$PFAL,Sys.Device.Sleep=Ign+Ring+Timer=01:00:00
the system wakes up when either the
pressed, a ring signal is detected or 1 hour has passed
since the device is set into the
2.4.0_ -
EVISION BETA
sleep mode, the system calls the
Ign
sleep mode, make sure that
Ring
V
ERSION
6.10.
means,
"
is short
BTN1
sleep mode.
Timer
Page 41 of 271
1.0.0
