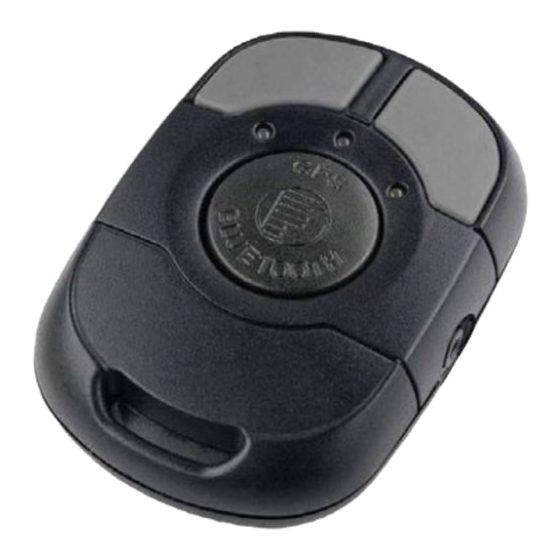

FALCOM NAVI-XS POI
(
™
Bluetooth
GPS Receiver with
)
Points-Of-Interest features
User's guide
Preliminary/Draft
Version 1.00, 05/12/2005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NAVI-XS POI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FALCOM NAVI-XS POI

Summary of Contents for FALCOM NAVI-XS POI

  • Page 1 HIS DOCUMENT IS AVAILABLE AT HTTP://WWW.FALCOM.DE/ FALCOM NAVI-XS POI ™ Bluetooth GPS Receiver with Points-Of-Interest features User’s guide Preliminary/Draft Version 1.00, 05/12/2005...

  • Page 2: Table Of Contents

    Pocked PCs Bluetooth™ Connection.................. 23 4.1.3 Navigation with NAVI-XS POI Bluetooth™ GPS Receiver..........26 SOFTWARE INTERFACE............27 NMEA ....................27 OUTPUT MESSAGES TROUBLESHOOTING ..............28 This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 1...
  • Page 3 NAVI-XS POI U ’ 1.00 UIDE ERSION Version history: Version number Author Changes Release date 1.00 Fadil Beqiri Initial release 05/12/2005 This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 2...
  • Page 4 FALCOM GmbH. FALCOM GmbH. No patent liability is assumed with respect to the use of the information contained herein. This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 3...

  • Page 5: Introduction

    Powered by just 2 AAA rechargeable (included) and replaceable NIMH batteries, NAVI-XS offers up to 6 hours of continuous use without extra power. This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 4...

  • Page 6: Package Contents

    Blister package is used to package the unit. Including User’s Manual and POI configuration software Table 1: Ordering information This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 5...

  • Page 7: Accessories

    Car Cigarette Lighter. to any European or American (depends on the required POWER-SET) socket-outlet. to any USB port on your computer. This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 6...

  • Page 8: Security

    Follow these instructions. 1.3 Children Do not allow children to play with the NAVI-XS POI. It is not a toy and children could hurt themselves or others. The NAVI-XS POI consists of many small parts, which can come loose and could be swallowed by small children. Thoughtless handling can damage the NAVI-XS POI.
  • Page 9 • If the NAVI-XS POI is powered by non-rechargeable batteries e.g. -AAA type- please, do not attempt to charge them. This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 8...

  • Page 10: Technical Description

    Accuracy Position 10 meters CEP without SA Velocity 0.1 meters/second, without SA Time 1 microsecond synchronized to GPS time This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 9...

  • Page 11: Datum

    Flow control: NO 2.2.1.10 Physical ♦ Dimensions: 66 mm x 46 mm x 20 mm (L x B x H) This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 10...

  • Page 12: Software

    1 month (– 20 ~ +60) Storage 3 month (– 20 ~ +45) °C 1 year (– 20 ~ +25) Table 3: Temperature range This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 11...

  • Page 13: Interfaces

    (predefined to approx. 2 hours) When batteries charge differently (have different levels of charge). Continually red You have to replace both batteries. This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 12...

  • Page 14: Power Jack

    If you do not intend to use your NAVI-XS POI for several days, we recommend you to remove the batteries. This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 13...
  • Page 15 20°C to 60°C. Use of the batteries outside this temperature range may damage the performance of the batteries or may reduce its life expectancy. This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 14...

  • Page 16: Preparing To Use Your Falcom Navi-Xs Poi

    If there is trouble during acquire a GPS fix, replace the location of NAVI-XS POI or restart it again. This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 15...

  • Page 17: Operation Guide

    Insert the power jack into the cigar lighter (not included), and plug the other end of the lead into the NAVI-XS POI unit, then put the NAVI-XS POI into the cradle, in such a way it is facing toward the sky. Once the NAVI-XS POI unit is connected to the...

  • Page 18: Pc/Laptop And Navi-Xs Poi Bluetooth™ Connection

    Bluetooth™ configuration, a screen will appear in the display. Select the Hardware page and check if your USB Bluetooth™ device is found and it works properly, as shown below. This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 17...
  • Page 19 Selection. Select the FALCOM NAVI-XS POI icon. In order to discover the services offered the FALCOM NAVI-XS POI click the link "click here” on the left side of opened window. This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 18...
  • Page 20 9. The aforementioned icon will change its colour from grey to green as shows in the figure below. The service, which the NAVI-XS POI offers, is also shown below. This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 19...

  • Page 21: How To Evaluate The Navi-Xs Connected To Pc/Laptop

    1) To start the SiRFdemo software, either double-click on the SiRFdemo.exe installed file or if you have created a shortcut on your desktop, double-click the SiRFdemo.exe. This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 20...
  • Page 22 $GPRMC protocol as shown in figure below. The capital letter means incoming protocols are valid, and the capital letter means incoming protocols are invalid. This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 21...
  • Page 23 For more detailed information about the using of SiRFdemo software, please download the manual, which is also SiRFdemo.pdf available on www.falcom.de. This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 22...

  • Page 24: Pocked Pcs Bluetooth™ Connection

    HINT: Perform a Bluetooth™ device discovery on your Pocked PCs to find the Bluetooth™ GPS Receiver. Refer to the user documentation of your Bluetooth™ device for instructions, too. This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 23...
  • Page 25 6. You will be returned to the Bluetooth™ Manager screen. Tab the FALCOM NAVI-XS POI icon to get the device information. This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 24...
  • Page 26 When the FALCOM NAVI-XS POI Bluetooth™ GPS receiver is connected to handheld device, the Bluetooth™ indicator on the NAVI-XS POI Bluetooth™ GPS receiver will be steadily on. This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 25...

  • Page 27: Navigation With Navi-Xs Poi Bluetooth™ Gps Receiver

    Safety to traffic has always priority! Please use the FALCOM NAVI-XS POI only in such a way that you always keep control of your vehicle in all traffic conditions. This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 26...

  • Page 28: Software Interface

    The number of GPS satellites in view satellite ID numbers, elevation, azimuth and SNR values. Time, date, position, course and speed data. Table 5: NMEA Output Messages This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 27...

  • Page 29: Troubleshooting

    COM port setting, it depend on your using Bluetooth™ device), and click Open Port. The current position will appear on the GPS Mapping software. This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 28...
