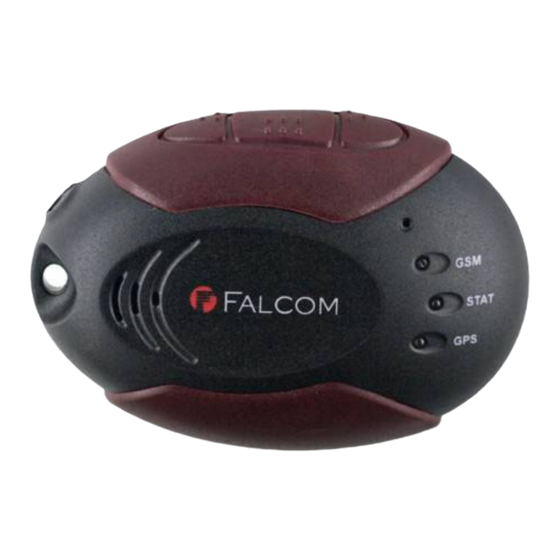

- Page 1 This document is available at http://www.falcom.de/ MAMBO55/56 GSM / GPRS / GPS / Bluetooth devices ARDWARE DESCRIPTION Version 1.01, 27/04/2006...
-
Page 2: Table Of Contents
ULTISLOT LASS CHANGE 4.2.1 Automatic shutdown......................19 APPENDIX ................20 MAMBO ..........20 HAT SHOULD BE CONSIDERED WHEN USING THE DEVICE This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 1... - Page 3 1.00 Fadil Beqiri 02/03/2006 - This document is separated into two other documents: 1.01 Fadil Beqiri MAMBO_getting_started.pdf 27/04/2006 MAMBO_software_update.pdf This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 2...
- Page 4 FALCOM Wireless Communications GmbH No patent liability is assumed with respect to the use of the information contained herein. This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 3...
-
Page 5: Introduction
Bluetooth™-enabled device points you the way comfortably and reliably from the current location A to your desired destination B. This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 4... -
Page 6: Circuit Concept
Internal Speaker and Microphone PHYSICAL INTERFACES: Audio interface (for headset) 0.3 Related documents [1] MAMBO_software_2.3.17_user_manual.pdf [2] MAMBO_getting_started.pdf [3] MAMBO_software_update.pdf [4] MAMBO_configuration_software.pdf This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 5... -
Page 7: Security
When applications are prepared for mobile use they should fulfil road-safety instructions of the current law! This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 6... -
Page 8: Electronic Devices
This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 7... -
Page 9: Non-Ionizing Radiation
This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 8... -
Page 10: Safety Precautions While Discharging The Battery
Use of the battery outside of this temperature range may damage the performance of the battery or may reduce its life expectancy. This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 9... -
Page 11: Safety Standards
European Community, Directorate General V in matters of radio frequency electromagnetic energy. This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 10... -
Page 12: Technical Data
GSM TALK mode (all modules are powered on), Headset in use GPRS mA DATA mode GPRS (all modules are powered on) This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 11... -
Page 13: Operating Temperatures
MAMBO56 Tri band: EGSM 850, GSM 1800, GSM 1900 Compliant to GSM Phase 2/2+ GSM class: Small MS Transmit power: Class 4 (2 W) at EGSM900/850 This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 12... - Page 14 Full Rate (ETS 06.10) Enhanced Full Rate (ETS 06.50/06.60/06.80) Adaptive Multi Rate (AMR) Handsfree operation Echo cancellation Noise reduction This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 13...
-
Page 15: Air Interface Of The Mambo Gsm/Gprs Part
RF power @ ARP with 50 Ω load E-GSM 900 GSM 850 GSM 1800 GSM 1900 E-GSM 900 GSM 850 This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 14... -
Page 16: Technical Specifications Of Gps Receiver
The sensitivity value is specified at the correlator. On a JP13 Evaluation Receiver using GSW3 firmware with the supplied antenna, 17 dBHz is equivalent to -155 dBm This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 15... - Page 17 ± 10 % load change 0.2 ± ppm Long term stability Frequency drift over 1 year 0.5 to 2.0 ± ppm This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 16...
-
Page 18: Mambo Interfaces
DC electrical outlet. Figure 2: Power Jack interface to connect the charger This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 17... -
Page 19: Audio Interfaces
GPRS, the module automatically reverts from GPRS Multislot class 10 (3 RX x 2 TX) to This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 18... -
Page 20: Automatic Shutdown
The automatic shutdown procedure is equivalent to the power-down initiated, i.e. MAMBO logs off from the network and the software enters a secure state avoiding loss of data. This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 19... -
Page 21: Appendix
“mambo_firmware_2.3.17_user_manual.pdf”. This document provides a large amount of information to create a wide range of GSM/GPS/GPRS (internet) applications. This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 20...
