2.2 The principle of firmware operation

The integration of the MAMBOII operating with firmware version 2.4.0
mentioned in chapter 2, page
1. MAMBOII Unit(s)
2. A SIM card for Voice and/or DATA and /or GPRS
3. GPRS settings (provided by your provider)
4. TCP settings (from the setup Web Server in your network)
5. Remote Server (the setup Server for Web applications)
6. User (Personal Computer connected to the remote Server)
The illustration below represents the interfaces that the MAMBOII uses to access the
Remote Server via GPRS Network. In addition, it shows that TCP communication enables
the MAMBOII device to be monitored/tracked online from your PC via the Internet
services.

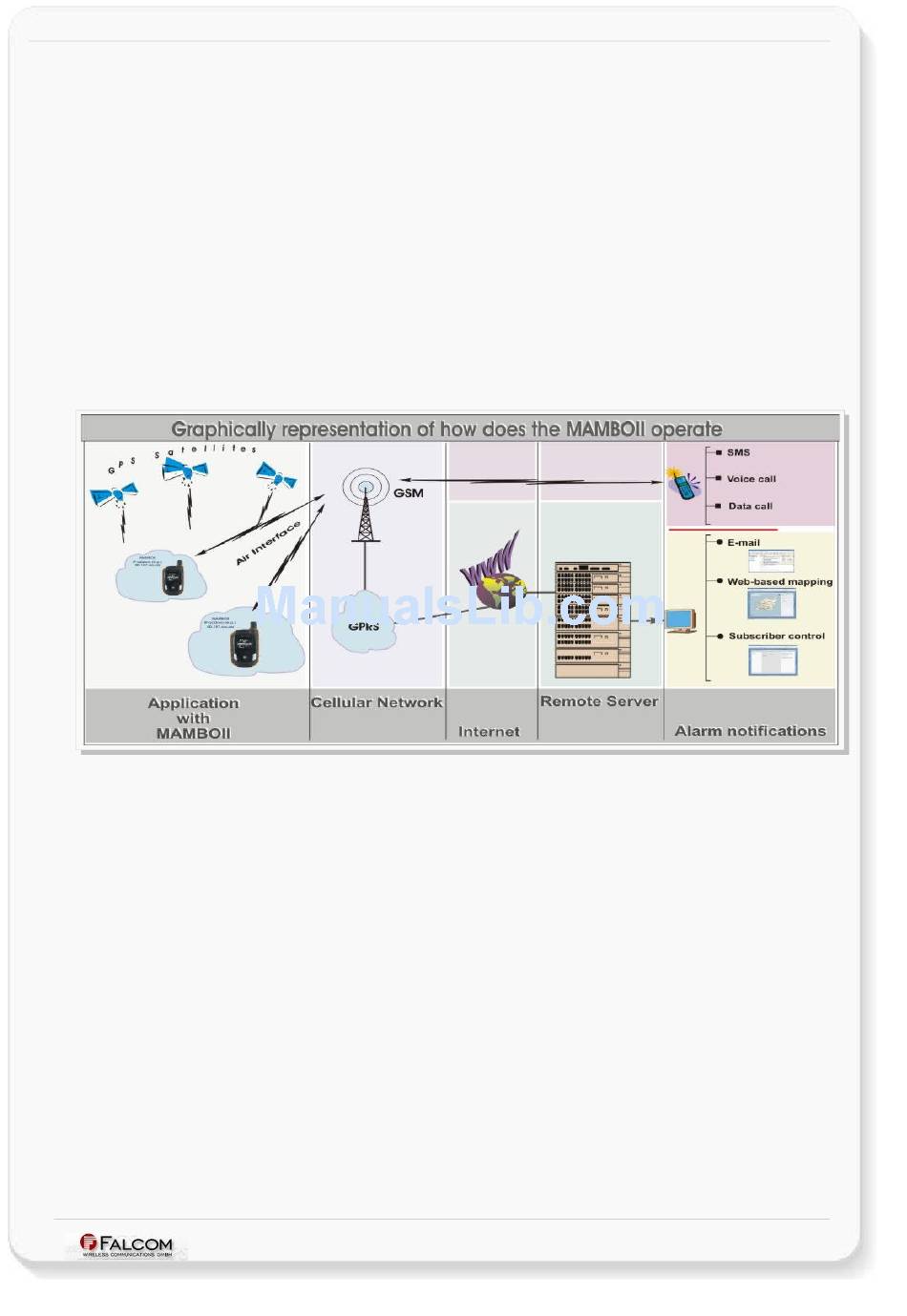

Figure 1: Interfaces that the firmware uses to access the Remote Server via GPRS Network
The principle of system operation is very simple. Each object is equipped with a
MAMBOII device, which consists of:
• an integrated GPS-receiver with internal active antenna for reception of signals
from GPS satellite system,
• a GSM/GPRS-modem with internal antenna for transmission of these GPS data by
radio.
• A Bluetooth transceiver with internal antenna to enable wireless data
connectivity to a PC, PDA, Mobile phone etc. for sending/receiving the GPS data
and input commands.
• A Bluetooth Audio Gateway to enable wireless audio connectivity to a Bluetooth
headset.
The GPS receiver uses the satellites data to calculate the exact position of the vehicle
(object) fitted with MAMBOII unit. The GPS data received from the MAMBOII unit can be
transferred through the GPRS network (IP-based) and the Internet to your remote server
for online purposes. A user-developed program installed on the remote server, can help
you to connect to the vehicles equipped with MAMBOII units.
For such purposes, at first the MAMBOII device must be locally configured (with the help
of any terminal program or FALCOM Workbench software – a developed program to
