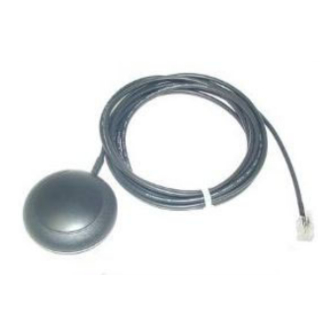

- Page 1 HTTP://WWW.FALCOM.DE/ This document is available at NAVI-S User’s Guide Version 1.04...
-
Page 2: Table Of Contents
ETTING TARTED HOW TO EVALUATE THE NAVI-S......14 TROUBLESHOOTING...........18 HOUSING .................19 APPENDIX ...............20 NAVI-S-1(-2) PAQ 3800/3900..............20 CCESSORIES FOR TO I This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 1... - Page 3 Table 1 (Modular Plug RJ11 6/4 pin-out) updated. 1.04 Fadil Beqiri Throughout this document the default baudrate been corrected 38400bps. This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 2...
- Page 4 FALCOM GmbH. FALCOM GmbH. No patent liability is assumed with respect to the use of the information contained herein. This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 3...
-
Page 5: Introduction
Dilution of Precision Global Positioning System GNSS Global Navigation Satellite System GPS Fixed Data Geographic Position - Latitude / Longitude This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 4... -
Page 6: Related Documents
Wide Area Augmentation System Minimum Shift Keying 0.3 Related documents [1.] SiRF binary and NMEA protocol specification; www.falcom.de/service/downloads/manual/SiRF [2.] SiRF- demo; www.falcom.de/service/downloads/manual/SiRF This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 5... -
Page 7: Order Options
Further cable set options for NAVI-S (including RS232 and PS2, USB or PDA interface) are available upon request. This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 6... -
Page 8: Security
European Community, Directorate General V in matters of radio frequency electromagnetic energy. This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 7... -
Page 9: Technical Specifications
8 data bits, no parity, 1 stop bit 2.1.8 DC Power Main power ♦ NAVI-S-1(-2) : +5V DC ± 5%, 65mA (continuous mode), typical This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 8... -
Page 10: Physical
(without cable) weight: 67,8 g cable length 2.5 m temperature range: -40 to +85 °C ( operation, transportation and storage This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 9... -
Page 11: Software Interface
Time, date, position, course and speed data. Course and speed information relative to the ground. Table 4: NMEA Output Messages This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 10... -
Page 12: Installation Instruction
To be installed in-door on the immovable parts. ♦ NAVI-S-2 is not water resistant. Do not contact it with water. This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 11... -
Page 13: How To Install & Operate Navi-S -1(-2)
This is the main transmitting channel and is used to output navigation and measurement data to This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 12... - Page 14 Stop bit : 1 Flow control : None. The formats of NMEA messages are available under the following internet address: www.falcom.de/service/downloads/manual/SiRF/SiRFmessages.pdf This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 13...
-
Page 15: How To Evaluate The Navi-S
On the activated Data Source Setup window, select the COM (e.g COM3) for SiRFdemo program and set the baud rate to 38400 bps. See figure below This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 14... - Page 16 Click the icon on toolbar by the up-down button (marked button in figure below), then the program will automatically detect the serial port and starts evaluating. This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 15...
- Page 17 $GPRMC protocol as shown in figure below. The capital letter means, incoming protocols are valid and the capital latter means, incoming protocols are invalid. This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 16...
- Page 18 For more detailed information about the using of SiRFdemo software, please download the SiRFdemo.pdf manual, which is also available on our web page. This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 17...
-
Page 19: Troubleshooting
5 minutes from FALCOM’s not enough data for sure SiRFdemo.pdf without receiving tracking. Website and read SiRFdemo user valid positions guide. This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 18... -
Page 20: Housing
NAVI-S VERSION 1.04 8 Housing Figure 1: Housing of NAVI-S (without cable set) This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 19... -
Page 21: Appendix
3. Finally, connect the Modular Plug RJ11 6/4 of car voltage adapter cable to the corresponding Y-Connector labelled POWER (see figure below). This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 20... - Page 22 Now just switch your iPAQ 3800/3900 on and perform the aforementioned settings (refer to the chapter 2.1.7) to communicate with NAVI-S-1(-2). Figure 3: Components connection to the Y-Connector This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission. Page 21...
