To enable an application to respond when a button is pressed, attach the action to the
button's event and send it to the MAMBOII device by adding the "$PFAL,Cnf.Set,AL1="
at the front of the configuration.
$PFAL,Cnf.Set,AL1=IO.BTN.e0=short:IO.Beep3=cyclic,500,1000
$PFAL,Cnf.Set,AL2=IO.BTN.e0=long:IO.Beep3=low
$PFAL,Cnf.Set,AL3=IO.BTN.e1=short&IO.BTN.sID=0:IEEE.Keyfob0.LED1=cyclic,1000,500
$PFAL,Cnf.Set,AL4=IO.BTN.e1=long&IO.BTN.sID=0:IEEE.Keyfob0.LED1=low

4.3.1 Load the configuration into the MAMBOII device

Loading user configuration in ten-step process:
9. Apply power to the MAMBOII device,
10. Turn on the MAMBOII device.
11. Create a Bluetooth connection from the PC to the MAMBOII, using a
.
adapter
12. Install and start the FALCOM Workbench software - see Figure 12 below,
13. Open a new COM Port from the Toolbar
where MAMBOII is connected and define the port settings (38400 bps, 8 Data bits, No
Parity bit, 1 Stop bit, None Flow control). Finally, click on the connect icon .
14. Open a new Console from the Toolbar
Connection view and click on COMPort
15. Open a new Editor from the Toolbar
view and click on Console1
16. To enable MAMBOII to connect and communicate with Keyfobs, the MAMBOII must know
the address of all Kefob devices supposed to be used. Therefore, you need only to load
the following configuration into the MAMBOII device.
a) Specify the network identifier.
Set configuration
b) Connect Keyfob0 to the MAMBOII. The last entry in the following command
specifies
This confidential document is a property of FALCOM and may not be copied or circulated without previous permission.
S - F R
ET IRMWARE

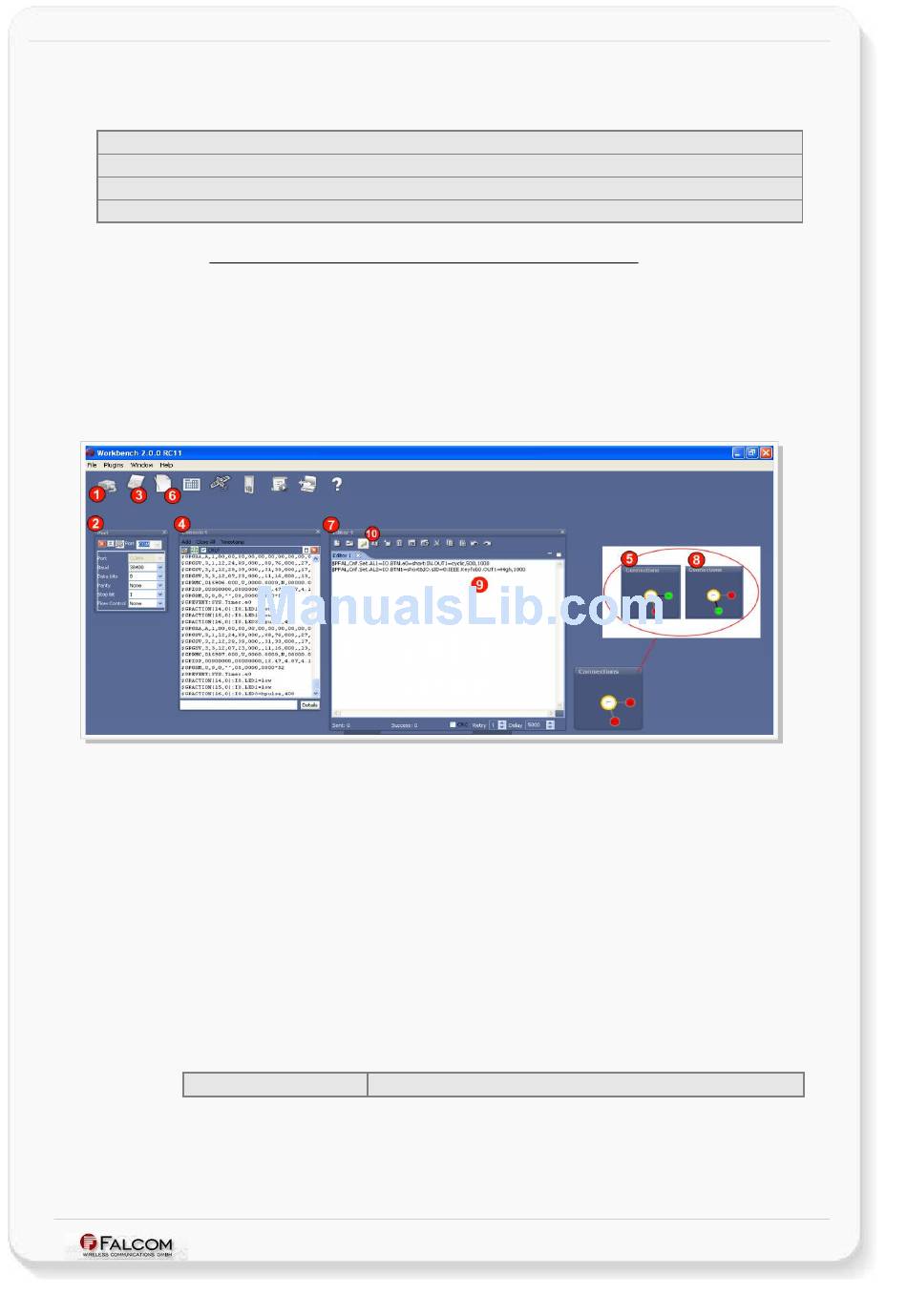

Figure 12: FALCOM Workbench software.
