Performance Tests (MSO70000/C Series, DSA/DPO70000B/C Series, and DPO7000 Series)

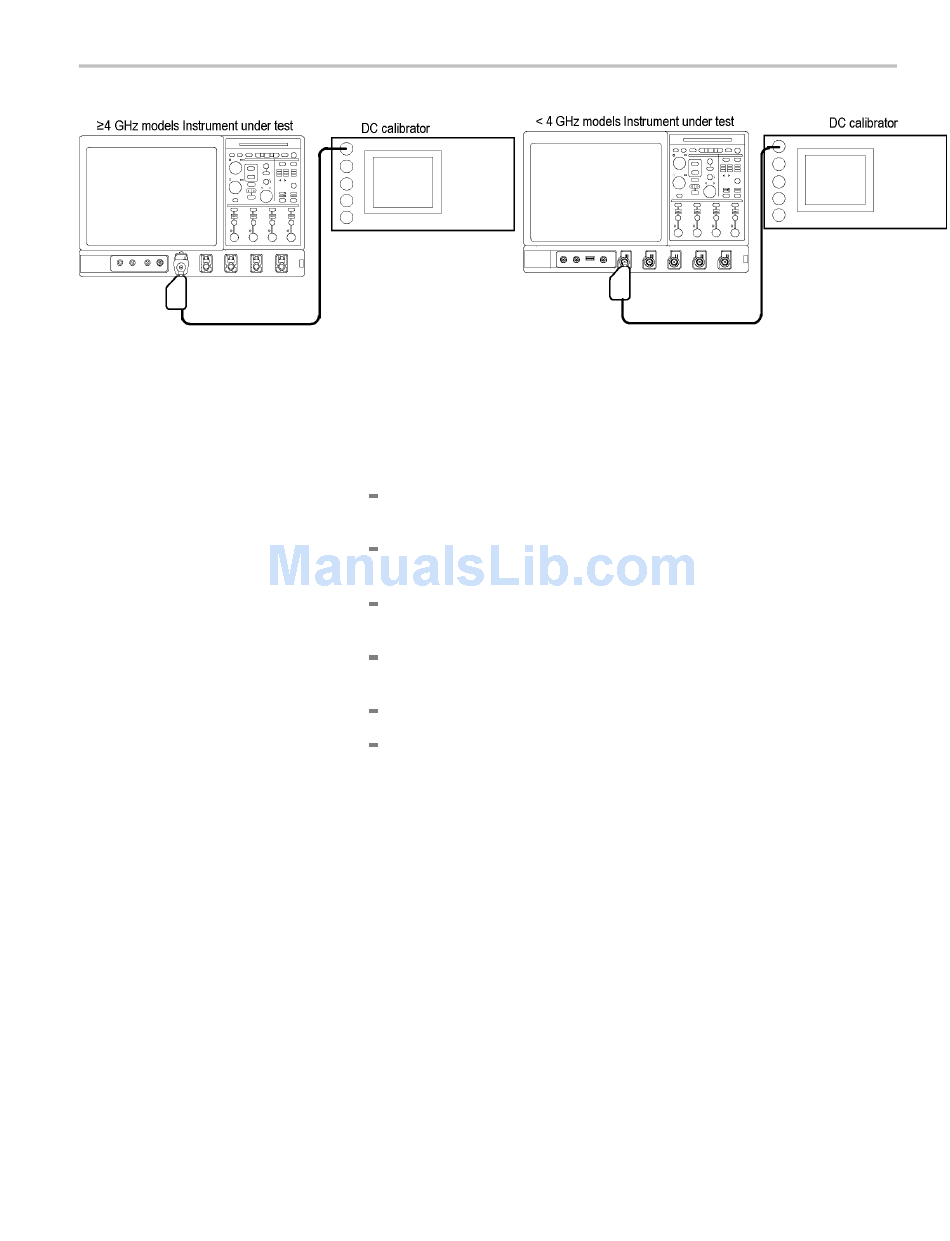

Figure 3-8: Initial test hookup

MSO70000/C, DSA70000B/C, DPO7000B/C, DPO7000, MSO5000, DPO5000 Series
2. Confirm input channels are within limits for DC accuracy at maximum offset
and position: Do the following substeps - test Ch 1 first, skipping substep a of
this step since Ch 1 is already selected from step 1.
a. Select an unchecked channel:
From the button bar, touch Measure and then Clear All to remove
the previous measurement.
Press the Vertical button of the channel just confirmed to remove the
channel from the display.
Press the front-panel Vertical button that corresponds to the channel
you are to confirm.
< 4 GHz models: Touch Vertical, select Vertical Setup, and then
touch Termination 50 Ω.
Set the generator output to 0 V.
Move the test hookup to the channel you selected.
3–43
