This manual describes the installation and operation of MSO70000B/C Series, DSA70000B/C Series, DPO70000B/C Series, DPO7000 Series, MSO5000 Series, and DPO5000 Series instruments. Basic operations and concepts are presented in this manual. For more detailed information see the online help on your instrument. The following instruments are supported by...
Page 19 Up to 1.0% DC vertical gain accuracy, depending on model Four analog input channels (each with 8-bit resolution when not in Hi-Res mode), auxiliary trigger input and output Sixteen digital channels available on MSO70000/C and MSO5000 Series instruments with an additional clock channel available on the MSO70000/C...
Page 20: Documentation
(See page 25, Accessing Online Help.) Programmer Commands Programmer guide (on the documentation browser or available on-line at www.tektronix.com/manuals). Includes the syntax of the GPIB commands. Service Information Service manual (on the documentation browser or available on-line at www.tektronix.com/manuals).
Page 21: Install Your Instrument
Install Your Instrument Unpack the instrument and check that you received all items listed as Standard Accessories. Recommended accessories, probes, instrument options, and upgrades are listed in the online help. Check the Tektronix Web site (www.tektronix.com) for the most current information.
Page 22: Operating Requirements
Install Your Instrument Accessory Tektronix part number Power Cord One of the following: MSO5000 DPO7000 ≥4 GHz and DPO5000 models models models North America (Option A0) 161-0348-00 161-0104-00 161-0213-00 Universal Euro (Option A1) 161-0343-00 161-0104-06 161-0209-00 United Kingdom (Option A2)
Page 23 Install Your Instrument 2. Width: 17.96 inches (456 mm) 17.75 inches (451 mm) 3. Height: 10.9 inches (277 mm) 11.48 inches (292 mm) 4. Before operating the instrument, verify 5 °C to +45 °C (+41 °F to +113 °F) 5 °C to +45 °C (+41 °F to +113 °F) the ambient temperature: 5.
Page 24 Install Your Instrument Maximum input voltage, ≥4 GHz models: 50 Ω <1 V for <1 V/FS settings and < 5.5 V for ≥1 V/FS settings. Maximum nondestructive input voltage to ±15 V logic probes, MSO70000 Series: CAUTION. For proper cooling, keep the bottom and sides of the instrument clear of obstructions. MSO5000 and DPO5000 1.
Page 25: Preventing Esd
Install Your Instrument Preventing ESD A direct electrostatic discharge can damage the instrument input. To learn how to avoid this damage, read CAUTION. the following information. Electrostatic discharge (ESD) is a concern when handling any electronic equipment. The instrument is designed with robust ESD protection, however it is still possible that large discharges of static electricity directly into the signal input may damage the instrument.
Page 26 Install Your Instrument DPO7000 Series MSO70000/C, DSA70000B/C, and DPO70000B/C Series MSO5000 and DPO5000 Series MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual...
Page 27: Powering Off The Instrument
Install Your Instrument Powering Off the Instrument MSO70000/C, DSA70000B/C, DPO70000B/C, and DPO7000 Series MSO5000 and DPO5000 Series Removing the Power DPO7000 Series MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual...
Page 28: Securing The Oscilloscope
Install Your Instrument MSO70000C, DSA70000B/C, and DPO70000B/C Series MSO5000 and DPO5000 Series Securing the Oscilloscope 1. Use a standard laptop computer-style security lock to secure your oscilloscope to your location. MSO5000 and DPO5000 Series MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual...
Page 29: Connecting To A Network
Install Your Instrument Connecting to a Network Connect your instrument to a network for printing, ﬁle sharing, internet access, and other functions. Consult with your network administrator and use the standard Windows utilities to conﬁgure the instrument for your network. Use the Remote Desktop Connection of Windows to control and view the instrument remotely.
Page 30: Adding A Second Monitor
Install Your Instrument Adding a Second Monitor You can operate the instrument while using Windows and installed applications on an external monitor. Follow the procedure below to set up a dual monitor conﬁguration. MSO70000/C, DSA70000C, and DPO70000C Series 1. Turn power off. 2.
Page 31 Install Your Instrument DSA70000B and DPO70000B Models 1. Turn power off. 2. Connect second monitor. 3. Connect keyboard. 4. Connect mouse. 5. Turn instrument power on. 6. Turn monitor power on. DSA70000B and DPO70000B Series MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual...
Page 32 Install Your Instrument DPO7000 Models 1. Turn off power. 2. Connect second monitor. 3. Connect keyboard. 4. Connect mouse. 5. Turn on instrument power. 6. Turn on monitor power. DPO7000 Series MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual...
Page 33 Install Your Instrument MSO5000 and DPO5000 Models 1. Turn off power. 2. Connect second monitor. 3. Connect keyboard. 4. Connect mouse. 5. Turn on instrument power. 6. Turn on monitor power. MSO5000 and DPO5000 models MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual...
Page 34 Install Your Instrument If your instrument uses Windows XP, continue with the following steps: 7. Right-click on the Windows desktop, and then select Properties. 8. Select Settings. Click the grayed out external monitor ( 2 ), and drag it to the left of monitor 1.
Page 35: Operating System Restore
Install Your Instrument Operating System Restore If your instrument shipped with an operating system restore DVD and you need to restore the operating system, you can use the procedure that came with the DVD. The instrument contains an operating system restore ﬁle on a separate partition of the hard drive. The preferred method to restore the instrument operating system is to use the hard disk restore ﬁle.
Page 36: Getting Acquainted With Your Instrument
Getting Acquainted with Your Instrument Getting Acquainted with Your Instrument Front Panel MSO70000/C, DSA7000B/C, DPO70000B/C, and DPO7000 1. DVD/CD-RW drive 2. Front panel controls 3. USB port 4. Ground terminal 5. Recovered data output (not available on DPO7104 and DPO7054) 6.
Page 37: Side And Rear Panels
Getting Acquainted with Your Instrument MSO5000 and DPO5000 Series 1. Front panel controls 2. Ground terminal 3. Probe compensation output 4. Auxiliary Trigger input 5. Channel 1–4 inputs 6. Logic probe input 7. USB ports MSO5000 and DPO5000 Series Side and Rear Panels MSO70000/C, DSA70000B/C, and DPO70000B/C 1.
Page 38 Getting Acquainted with Your Instrument DSA70000B and, DPO70000B 1. Removable hard disk drive 2. PS-2 connector for mouse 3. USB host ports 4. Centronics Parallel Port 5. RJ-45 LAN connector to connect to network 6. Video port to connect a monitor 7.
Page 39 Getting Acquainted with Your Instrument DPO7000 1. USB host ports 2. Video port to connect a monitor NOTE. Some instruments may have additional audio connectors. 3. Mic connector for microphone 4. Line Out connector for speaker 5. Oscilloscope Only XGA Out video port to connect a monitor 6.
Page 40 Getting Acquainted with Your Instrument MSO5000 and DPO5000 1. Line In connector 2. Line Out connector for speaker 3. Mic connector for microphone 4. Video port to connect a monitor 5. PS-2 connector for keyboard PS-2 connector for mouse 7. USB host ports 8.
Page 41: Interface And Display
Getting Acquainted with Your Instrument To use PS-2 devices, they must be plugged in before you power on the instrument. PS-2 devices must not be hot swapped. Interface and Display The menu bar mode provides access to commands that control all of the instrument features and functions. The toolbar mode provides access to the most common features.
Page 42 Getting Acquainted with Your Instrument 1. Buttons/Menu: Click to toggle between toolbar and menu bar modes and to customize the toolbar 2. Drag cursors to measure waveforms on screen 3. Drag the position icons to reposition a waveform 4. Click the icon to assign the multipurpose knobs to waveform vertical position and scale 5.
Page 43: Control Panel
Getting Acquainted with Your Instrument Control Panel MSO70000/C, DSA70000B/C, DPO70000B/C, and DPO7000 1. Push to automatically set up the vertical, horizontal, and trigger controls based on selected channels. 2. Push to return settings to default values. 3. Push to make a hard copy or save a screen capture.
Page 44 Getting Acquainted with Your Instrument MSO5000 and DPO5000 1. Turn to adjust parameters selected from the screen interface. Push Fine to select ﬁne adjustment, push Course to select course adjustment. 2. Push to turn cursors on or off. 3. Push to adjust waveform intensity using a Multipurpose knob.
Page 45: Accessing Online Help
12. Turn channel displays on and off. Vertically scale or position the waveform. On MSO5000 Series instruments, turn on digital channels by pushing the D15–D0 button or using the Digital > Digital Setup menu. (See page 48, Setting Up Digital Signal Input.)
Page 46: Accessing Menus And Control Windows
Getting Acquainted with Your Instrument 1. To access any topic in the help system, select Help > Contents and Index..2. Use the Contents, Index, Search, or Favorites tab to select the topic, and then click Display. To navigate within the help system: Click a button in a help window to navigate between the Overview and speciﬁc topics.
Page 47 Getting Acquainted with Your Instrument For a shortcut menu, right-click anywhere in the graticule or on an object. The shortcut menu is context sensitive and varies with the area or object where you right-clicked. Some examples are shown in the ﬁgure at right. In the toolbar mode, click a button to quickly access a setup control window.
Page 48: Inspect Your Instrument
2. Select Instrument Diagnostics..3. Click Run. The test results appear in the diagnostics control window. 4. Verify that all tests pass. If diagnostic failures occur, contact your local Tektronix service personnel. MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual...
Page 49: Acquisition
Perform the signal path compensation regularly to ensure that your measurements have the highest level of accuracy. Tektronix considers it a best practice to run SPC when using the instrument to measure signals with higher sensitivity (10 mV/div and lower) settings regardless of temperature shift or time since it was last run. Failure to do so may result in the instrument not meeting warranted performance levels.
Page 50 Acquisition 2. Select Instrument Calibration. 4. If the instrument does not pass, recalibrate the instrument, or have the instrument serviced by qualiﬁed service personnel. NOTE. To always show the SPC status icon or display a warning when SPC has not been run in more than a month, click the corresponding check box.
Page 51: Setting Up Analog Signal Input
Acquisition Setting Up Analog Signal Input Use front-panel buttons to set up your instrument to acquire the signal. 1. Connect the probe to the input signal source. CAUTION. To prevent damage to the instrument, always wear an antistatic wrist strap when making connections to the instrument and observe the maximum input voltage ratings for input connectors.
Page 52 Acquisition 3. Push Autoset. 4. Adjust the vertical position, scale, and offset using the front-panel knobs. MSO70000/C, DSA70000B/C, DPO70000B/C, and DPO7000 MSO5000 and DPO5000 Series Series 5. Adjust the horizontal position and scale using the front-panel knobs. The horizontal position determines the number of pretrigger and posttrigger samples. MSO5000 and DPO5000 Series MSO70000/C, DSA70000B/C, DPO70000B/C, and DPO7000 Series...
Page 53: Using Default Setup
Acquisition Using Default Setup 1. To quickly return to the factory default settings, push DEFAULT SETUP. MSO70000/C, DSA70000B/C, DPO70000B/C, and DPO7000 Series MSO5000 and DPO5000 Series MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual...
Page 54: Using Autoset
Acquisition Using Autoset Use Autoset to quickly and automatically set up the instrument (acquisition, horizontal, trigger, and vertical) based on the characteristics of the input signal. Autoset makes adjustments to the signal such that the waveform displays two or three cycles with the trigger level near the midlevel.
Page 55: Probe Compensation, Calibration, And Deskew
Acquisition If you use Autoset when no channels are displayed, the instrument turns on channel one (Ch 1) and scales it. Close Autoset Undo control window by clicking the X. After Autoset Undo closes, you can still undo the last Autoset by selecting the Undo Last Autoset command from the Edit menu.
Page 56 Acquisition Interpolated Real-Time Sampling In interpolated real-time sampling, the instrument digitizes all of the points it acquires using one trigger event. If the instrument cannot acquire enough samples for a complete waveform at the maximum real-time sample rate, it interpolates. Use interpolated real-time sampling to capture single-shot or transient events.
Page 57 Acquisition Waveform Record The instrument builds the waveform record through use of the following parameters: Sample interval: The time between sample points. Record length: The number of samples required to ﬁll a waveform record. Trigger point: The zero time reference in a waveform record.
Page 58: How The Acquisition Modes Work
Acquisition How the Acquisition Modes Work Sample mode retains the ﬁrst sampled point from each acquisition interval. Sample is the default mode. Peak Detect mode uses the highest and lowest of all the samples contained in two consecutive acquisition intervals. This mode only works with real-time, noninterpolated sampling and is useful for catching high frequency glitches.
Page 59: Changing The Acquisition Mode
Acquisition Changing the Acquisition Mode Use this procedure to change the acquisition mode. 1. Select Horiz/Acq > Acquisition Mode. 2. To select an acquisition mode, do one of the following: Select an acquisition mode directly from the menu. Click Mode..., and then select an acquisition mode.
Page 60: Starting And Stopping An Acquisition
Acquisition Starting and Stopping an Acquisition After the channels that you want to acquire are selected, use the following procedure. 1. Push the front-panel RUN/STOP button to start the acquisition. 2. Push the RUN/STOP button again to stop the acquisition. 3.
Page 61 Acquisition To set the Record Length Limit, click Record Length Limit and set the limit using the buttons or keypad. The default maximum limit depends on your instrument model and record length option. In Constant Sample Rate mode you can set the Sample Rate and Scale.
Page 62 Acquisition In Manual mode you can set the Sample Rate and Record Length. Horizontal Scale is a dependent variable calculated from the sample rate and record length. Masks are not supported in manual mode. The Horizontal Scale knob changes record length in manual mode.
Page 63: Using Fastacq
Acquisition Using FastAcq Fast acquisition mode reduces the dead time between waveform acquisitions, enabling the capture and display of transient events such as glitches or runt pulses. Fast acquisition mode can also display waveform phenomena at an intensity that reﬂects their rate-of-occurrence. Use the following procedure: 1.
Page 64 Acquisition Quick Tips Digital channels and buses are not available in FastAcq mode. To optimize for capturing details or rare events, select Horiz/Acq > Horizontal/Acquisition Setup > Acquisition> Fast Acq, and then select Optimize For Capturing Details or Capturing rare events. On MSO5000 and DPO5000 Series instruments, Fast Acq mode is not available in XY or XYZ Display modes.
Page 65: Using Dsp Enhanced Bandwidth
Acquisition Using DSP Enhanced Bandwidth If your instrument has the enhanced bandwidth feature, use the DSP (digital signal processing) enhanced bandwidth for more accurate rise time measurements, to extend the bandwidth, and ﬂatten the passband at the full sample rate. The enhanced bandwidth provides a matched response across enabled channels so you can perform channel-to-channel comparison and differential measurements.
Page 66 Acquisition 3. Click Digital Filters (DSP) Enabled to turn the enhanced bandwidth on. You must set the sample rate correctly to enable DSP. 4. To force a constant sample rate that enables DSP ﬁlters, check Force Constant Sample Rate. NOTE. If not already set, selecting Constant Sample rate sets the horizontal mode to constant sample rate, sets the sample rate...
Page 67: Using Roll Mode
Acquisition Using Roll Mode Roll mode gives a display similar to a strip chart recorder for low-frequency signals. Roll mode displays acquired data points without waiting for the acquisition of a complete waveform record. 1. Select Horiz/Acq > Horizontal/Acquisition Setup..2.
Page 68: Setting Up Digital Signal Input
(See page 50, Setting Up a Bus.) Setting Up Digital Channels You can set a digital channel threshold, size, position and label on MSO70000/C and MSO5000 Series instruments. 1. Select Digital > Digital Setup. MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual...
Page 69 Acquisition 2. Select the D7 - D0 or D15 - D8 tab for the digital channels you want to set up. 3. Click a digital channel button to toggle the display of the digital channel on or off. 4. Click Threshold or Position and adjust them using the keyboard or multipurpose knobs.
Page 70: Setting Up A Bus
Acquisition Setting Up a Bus You can set up serial and parallel buses on MSO70000/C, MSO5000, and DPO5000 Series instruments. 1. Select Vertical > Bus Setup or, on some instruments, Digital > Bus Setup. 2. Select the Conﬁg tab. MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual...
Page 71 Acquisition 3. Scroll to, and then select the bus to set 4. To toggle the display of the bus on or off, click the Bus button. 5. To change the default label of the bus, click Label and enter a new label using the keyboard.
Page 72 Acquisition 1. To set up a serial bus, select Bus Type Serial and select the type of serial bus from the drop-down list. Each bus type has its own collection of parameters that you set up. Set up other bus types as appropriate for the selected bus.
Page 73 Acquisition Set Up a Parallel Bus You can set parallel bus parameters. You can use digital channels in bus deﬁnitions on MSO Series instruments only. 1. To set up a parallel bus, select Bus Type Parallel. See the online help for additional help setting up a bus.
Page 74 Acquisition 8. For each threshold you want to set, double click the channel Threshold, and enter the threshold using the keypad or multipurpose knobs. 9. When the desired thresholds have been set, click the OK button. 10. To set all channels to the same threshold, double click Global Threshold and use the keypad to enter a threshold.
Page 75 Acquisition 2. Select the Display tab. 3. To select the bus, scroll to display the bus, and then select the bus. 4. To select the bus style and decoding, click the desired bus style and decoding buttons. 5. If using a symbol table, check Use Symbol.
Page 76: When And Why To Turn On Magnivu
When and Why to Turn On MagniVu For the MSO5000 Series, MagniVu gives you higher resolution to accurately determine edge placement. This helps you make precise timing measurements on digital edges. You can see up to 32 times more detail than with normal digital channel sampling.
Page 77: Viewing Analog Characteristics Of Digital Waveforms
Acquisition Viewing Analog Characteristics of Digital Waveforms iCapture allows you to view the analog characteristics of digital channel signals. Additional measurement capabilities are available while viewing the analog characteristics of a waveform. iCapture is available on MSO70000/C Series instruments. 1. Select Vertical > Vertical Setup. 2.
Page 78 Acquisition 4. To set channel thresholds used when converting an analog waveform to digital format for inclusion in a bus, click the Digital Properties button. 5. To choose whether to share threshold settings or have independent threshold settings, click Channel Settings and select Shared or Independent from the list.
Page 79: Using Fastframe Mode
Acquisition Using FastFrame Mode FastFrame allows you to capture many trigger events as single records in a larger record, and then view and measure each record individually. Time Stamps display the absolute trigger time for a speciﬁc frame and the relative time between triggers of two speciﬁed frames.
Page 80 Acquisition 3. Push FastFrame to toggle it On. 4. Select Frame Size and # of Events Frames. Then use the multipurpose knobs to set each one. Number of frames represents the number of trigger events that are captured. Frame size is the number of samples that are stored with each trigger event (or frame.) The number of frames is reduced if there...
Page 81: Using Fastframe Frame Finder
Acquisition Use FastFrame when you want to capture multiple events that have long dead times between them that are of no interest to you. Multiple frames are best viewed with the Normal, Green, or Gray color palettes because the dark blue selected frame may be hard to distinguish if you use Temp or Spectral.
Page 82 Acquisition 4. Push Start to start the search. Frame Finder searches for and displays a different frame. 5. If the anomaly you are looking for is not in the displayed frame, push No. Frame Finder searches for another different frame. 6.
Page 83: Using Teklink And Multiscope Trigger
Acquisition Using TekLink and MultiScope Trigger To get more than 4 channels associated with a single trigger event, get more than 4 channels looking for a problem on a channel, or build a big AND gate with more than 4 inputs, use TekLink. NOTE.
Page 84 Acquisition 4. Select the MultiScope Trigger tab. 5. Enable MultiScope Triggering by selecting Enable MultiScope Triggering (with TekLink). 6. Select Sends Trigger to enable the instrument to trigger both instruments in the instrument-instrument setup. The other instrument is automatically set to receive the trigger.
Page 85 Acquisition 3. Select Trig > A Event (Main) Trigger Setup..4. Select the MultiScope Trigger tab. 5. Enable MultiScope Triggering by selecting Enable MultiScope Triggering (with TekLink). 6. Select Contribute to enable the instrument to supply a trigger in the TekLink setup.
Page 86 Acquisition 9. If you want the instrument to scan the TekLink network to see which instruments are connected to the TekLink network, press the Refresh button. 10. When MultiScope triggering is enabled, it displays in the trigger readout. MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual...
Page 87: Pinpoint Triggers
Pinpoint Triggers Pinpoint Triggers The Pinpoint trigger system comes with advanced trigger types that are usable on both A and B triggers, and it can reset the trigger sequence if the B event does not occur after a speciﬁc number of events or a speciﬁc time. Pinpoint triggers support capture of events based on the most complex trigger event or sequence of trigger events.
Page 88 Pinpoint Triggers Trigger Coupling Trigger coupling determines what part of the signal is passed to the trigger circuit. Edge triggering can use all available coupling types: AC, DC, Low Frequency Rejection, High Frequency Rejection, and Noise Rejection. All other trigger types use DC coupling only.
Page 89: Choosing A Trigger Type
Pinpoint Triggers Choosing a Trigger Type Your instrument allows you to modify basic trigger parameters from the front panel or set up more advanced triggers in the Trigger Setup control window. NOTE. Some trigger type selections are not available on some instruments. 1.
Page 90 Pinpoint Triggers 3. To select one of the other trigger types, select a trigger type directly from the Trig menu. 4. Complete the trigger setup using the controls displayed for the trigger type. The controls to set up the trigger vary depending on the trigger type, instrument model, and options.
Page 91: Trigger Selections
Pinpoint Triggers Trigger Selections Trigger Type Trigger Conditions Edge Trigger on a rising or falling edge, as deﬁned by the slope control. Coupling choices are DC, AC, LF Reject, HF Reject, and Noise Reject. Glitch Trigger on a pulse narrower (or wider) than the speciﬁed width or ignore glitches narrower (or wider) than the speciﬁed width.
Page 92 Pinpoint Triggers Trigger Type Trigger Conditions Trigger on CAN Bus signals. RS-232 Trigger on RS-232 signals (DPO7000 Series only). Trigger on Inter-IC Control (I2C) signals: start, stop, repeated start, missing acknowledge, address, data, and address and data. Trigger on Serial Peripheral Interface (SPI) signals. MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual...
Page 93: Checking Trigger Status
Pinpoint Triggers Checking Trigger Status Check the trigger status from the status lights on the front panel or from the readout. Check the ARM, READY, and TRIG’D front-panel controls to determine the trigger status. If TRIG’D is on, the instrument has recognized a valid trigger and is ﬁlling the posttrigger part of the waveform.
Page 94: Using A (Main) And B (Delayed) Triggers
Pinpoint Triggers Using A (Main) and B (Delayed) Triggers You can use the A Event (Main) trigger for simple signals or combine it with the B Event (Delayed) trigger to capture more complex signals. After the A Event occurs, the trigger system looks for the B Event before triggering and displaying the waveform.
Page 95 Pinpoint Triggers 5. Set the B trigger characteristics in the B Event (Delayed) tab. 6. Select Normal Trigger Mode and Auto Holdoff in the Mode tab. Trigger on B Event The A trigger arms the instrument. Posttrigger acquisition starts on the nth B event.
Page 96 Pinpoint Triggers B Trigger After Delay Time The A trigger arms the instrument. Posttrigger acquisition starts on the ﬁrst B edge after the trigger delay time. Triggering with Reset You can specify a condition to reset the trigger system if it occurs before the B trigger event.
Page 97: Triggering With B-Event Scan
Pinpoint Triggers 1. To more accurately place the trigger on the display, check Enhanced Triggering. To more accurately place the trigger on noisy signals, also check Optimized for Noisy Signals. The Optimized for Noisy Signals selection is only available if Enhanced Triggering is selected.
Page 98 Pinpoint Triggers 3. To more accurately place the trigger on the display, check Enhanced Triggering. To more accurately place the trigger on noisy signals, also check Optimized for Noisy Signals. 4. Select Trig on nth Event and B Event Scan in the A>B Seq tab. 5.
Page 99 Pinpoint Triggers 9. Select the method that the B Event value is incremented after the selected number of acquisitions occur: Sequential Scan increments by 1 until the End Event is reached. When the End Event is reached, the B Event value is reset to the Start Event value and the process starts over.
Page 100: Triggering On A Parallel Bus
Pinpoint Triggers Triggering on a Parallel Bus Locate problems by triggering on a parallel bus. MSO instruments can use digital channels as components of a parallel bus. But MSO5000, DPO5000, and MSO70000 instruments can use a parallel bus . 1. Set up a parallel bus. (See page 50, Setting Up a Bus.) Select Trig >...
Page 101 Pinpoint Triggers 3. Select the Bus Trigger Type. 4. Select the bus to trigger on. NOTE. Clocked buses will only appear in the drop down list if the clock source is set to Ch4. MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual...
Page 102 Pinpoint Triggers 5. Click the Edit button to set the pattern and format that you want to trigger on. 6. Set the pattern to trigger on using the keypad. 7. Analyze your waveforms. MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual...
Page 103: Triggering On A Serial Bus
Pinpoint Triggers Triggering on a Serial Bus Locate problems by triggering on a serial bus. Serial buses are available on MSO70000, MSO5000, and DPO5000 Series instruments. Digital channels can be used in bus deﬁnitions on MSO instruments. 1. Set up a serial bus. (See page 50, Setting Up a Bus.) 2.
Page 104 Pinpoint Triggers 4. Select the Bus Trigger Type. 5. Select the bus. 6. Select the bus signal to trigger on. 7. Depending on your Trigger On choice and your bus type, make the required selections for the bus. See the online help for additional help setting up a bus.
Page 105: Sending E-Mail On Trigger
Pinpoint Triggers Sending E-Mail on Trigger You must conﬁgure e-mail on event before performing the following procedure. (See page 86, Setting Up E-Mail on Event.) 1. Select Trig > A Event (Main) Trigger Setup..2. Select the Mode tab. 3. Under E-mail on Trigger, click On, and then click Setup.
Page 106: Setting Up E-Mail On Event
Pinpoint Triggers Setting Up E-Mail on Event 1. Select Utilities > E-mail on Event > Setup..2. Enter recipients’ e-mail address(es). Separate multiple entries with commas. There is a limit of 252 characters in the e-mail address box. 3. Click Conﬁg, and then enter the SMTP Server Address.
Page 107: Using Horizontal Delay
Pinpoint Triggers 4. Select the event(s) for which you want to send an e-mail. 5. To include attachments, select the type of attachment, and then click Settings to specify the format. 6. Set the maximum message limit and e-mail size. When the maximum message limit is reached, you must click Reset to send more e-mails on event.
Page 108 Pinpoint Triggers 1. Select Horiz/Acq > Horizontal/Acquisition Setup. 2. Push the Delay Mode button to toggle delay mode on. 3. Adjust the delay time with the horizontal POSITION control, or enter the delay time in the control window. 4. Adjust the horizontal SCALE to acquire the detail that you need.
Page 109: Display A Waveform
Display a Waveform Display a Waveform This section contains concepts and procedures for displaying a waveform. Detailed information is available in the online help. Setting the Display Style To set the display style select Display > Display Style, and then select one of the following styles: Displays waveforms with lines drawn between...
Page 110: Setting The Display Persistence
Display a Waveform Setting the Display Persistence Select Display > Display Persistence, and then select the type of persistence. No persistence shows record points for the current acquisition only. Each new waveform record replaces the previously acquired record for a channel. Inﬁnite persistence continuously accumulates record points until you change one of the acquisition display...
Page 111: Setting The Display Format
Display a Waveform Setting the Display Format The instrument can display waveforms in two different formats. Choose the format that best suits your needs. Select Display > Display Format. Select YT format to show a signal amplitude as it varies over time. Select XY format to compare the amplitude of waveform records point by point:...
Page 112: Selecting The Waveform Interpolation
Display a Waveform Selecting the Waveform Interpolation Select Display > Waveform Interpolation, and then select one of the following: Sin(X)/X interpolation computes record points using a curve ﬁt between the actual samples acquired. Linear interpolation computes record points between actual acquired samples by using a straight line ﬁt.
Page 113: Adding Screen Text
Display a Waveform Quick Tips Sin(X)/X interpolation is the default interpolation mode. It requires fewer actual sample points than linear interpolation to accurately represent the waveform. Adding Screen Text 1. Select Display > Screen Text. 2. Enter up to eight independent lines of text.
Page 114: Setting The Graticule Style
Display a Waveform Setting the Graticule Style To set the graticule style, select Display > Graticule Style, and then select one of the following styles: Use for quick estimate of waveform parameters. Use for full-screen measurements with cursors and automatic readouts when cross-hairs are not needed.
Page 115: Setting The Trigger Level Marker
Display a Waveform Setting the Trigger Level Marker 1. Select Display > Objects..2. Select one of the following: Short displays a short arrow on the side of the graticule. Long displays a horizontal line across the graticule. Off turns off the trigger level marker. Displaying the Date and Time 1.
Page 116: Using The Color Palettes
Display a Waveform Using the Color Palettes Select Display > Record View Palette or FastAcq/WfmDB Palette, and then select one of the following color schemes for the waveform and graticule: Normal displays hues and lightness levels for best overall viewing. The color of each channel waveform matches the color of the corresponding front-panel vertical knob.
Page 117: Setting Reference Waveform Colors
Display a Waveform Setting Reference Waveform Colors Select Display > Colors..., and then select one of the following: Default uses the default system color for reference waveforms. Inherit uses the same color for the reference waveform as the original waveform. Setting Math Waveform Colors Select Display >...
Page 118 Display a Waveform 2. Push HORIZ or VERT to select which axis to magnify in the zoom graticule. Use the multipurpose knobs to adjust scale and position of the magniﬁed waveform. In this example the main graticule is the top half of the graticule and the zoomed graticule is the bottom half of the graticule.
Page 119: Zooming In Multiple Areas
Display a Waveform Zooming in Multiple Areas When you want to view and compare multiple areas of one record at the same time, use the following procedure. 1. Click and drag a box around the area of the waveform that you want to zoom. 2.
Page 120 Display a Waveform 6. To adjust the zoomed area vertically, select Vertical > Zoom Setup..., click a vertical ﬁeld, and then use the multipurpose knobs to adjust the Vertical Position and Factor. Quick Tips To clear the zoom area, click Position Factor Reset from the Zoom Setup control window. Turn each zoom display on and off from the Zoom Setup control window.
Page 121: Lock And Scroll Zoomed Waveforms
Display a Waveform Lock and Scroll Zoomed Waveforms 1. To use Lock and Scroll select Zoom Setup... from either the Vertical or Horiz/Acq menu, and then select the Lock and Scroll tab. 2. To scroll a single zoomed area, select a Zoom 1-4 check box, and then click an Auto Scroll button.
Page 122: Hide Waveforms In The Zoomed Window
Display a Waveform Hide Waveforms in the Zoomed Window 1. To hide or view waveforms, select Zoom Setup... from either the Vertical or Horiz/Acq menu. 2. Select a Zoom tab, and then press Show/Hide Waveforms. 3. Select the zoomed area that contains the waveform you want to show or hide.
Page 123: Using Wave Inspector To Manage Long Record Length Waveforms
Display a Waveform Using Wave Inspector to Manage Long Record Length Waveforms The Wave Inspector controls (Pan/Zoom, play/pause, Mark, Search) help you to efﬁciently work with long record length waveforms. To magnify a waveform horizontally, turn the Zoom knob. To scroll through a zoomed waveform, turn the Pan knob.
Page 124 Display a Waveform 3. Examine the zoomed view of the waveform that appears on the larger, lower part of the display. The upper part of the display will show the position and size of the zoomed part in the waveform, within the context of the overall record.
Page 125: Searching And Marking Waveforms
Display a Waveform 3. Change the play direction by reversing the direction that you are turning the pan knob. 4. During play, up to a point, the more you turn the outer knob, the faster the waveform accelerates. If you rotate the outer knob as far as it can go, the play speed does not change, but the zoom box quickly moves in that direction.
Page 126 Display a Waveform To Manually Set and Clear (delete) Marks: 1. Push Multiview Zoom. Zoom 1 is used with marks. 2. Select Analyze > Search. 3. Move (the zoom box) to the area on the waveform where you want to set (or clear) a search mark by turning a multipurpose knob.
Page 127 Display a Waveform 5. Investigate your waveform by moving from search mark to search mark. Use the Next ( →) or Prev (←) arrow button to jump from one marked location to another, without adjusting any other controls. 6. Delete a mark. Push the Next ( →) or Prev (←) arrow button to jump to the mark you want to clear.
Page 128 Display a Waveform 3. Set up your search from the Conﬁgure tab. To copy the trigger setup or a search setup, press Settings Copy. 4. From the Copy Settings window, select where to copy the settings from and where to copy the settings to. Press Copy and then Close.
Page 129 Display a Waveform 7. On the screen, triangles show the location of automatic marks and triangles with a white outline show the custom (user-deﬁned) locations. These appear on both normal and zoomed waveform views. 8. Quickly investigate your waveform by moving from mark to mark with the Next ( →) or Prev (←) arrow button.
Page 130 Display a Waveform 12. To convert a mark or all marks to user marks, press Search Marks Save or Save All. 13. To remove the currently highlighted row from the Mark Table, press Search Marks Clear. 14. To toggle between showing mark locations in engineering notation or in high precision form, press Digits.
Page 131 Display a Waveform 15. To toggle the display of mark triangles on and off, select the View tab and press Show Marks. 16. To stop acquisitions if a match is found, select the Mode tab and check Stop Acquisition if event found. Quick Tips Search is performed only on acquired data.
Page 132 Display a Waveform Search Description Runt Searches for positive or negative pulses that cross one amplitude threshold but fail to cross a second threshold before crossing the ﬁrst again. Search for all runt pulses or only those with a duration >, <, =, or ≠ a user-speciﬁed time. Window Searches for a signal that is entering or leaving the threshold window.
Page 133: Analyzing Waveforms
Analyzing Waveforms Analyzing Waveforms Your instrument features cursors, automatic measurements, statistics, histograms, math, spectral analysis, and advanced pass/fail tests to help you to analyze waveforms. This section contains concepts and procedures for analyzing waveforms. Detailed information is available in the online help. Taking Automatic Measurements 1.
Page 134 Analyzing Waveforms 4. To remove all measurements, click Clear All. 5. To remove multiple measurements, click and drag to select the measurements, and then click Clear Selected. You can also choose a measurement for the selected waveform directly in the Measure menu. (See page 115, Automated Measurement Selections.) Quick Tips Automatic measurements are not available for digital channel waveforms.
Page 135: Automated Measurement Selections
Analyzing Waveforms Automated Measurement Selections The following tables list each automated measurement by category: amplitude, time, histogram, communication, or more. (See page 113, Taking Automatic Measurements.) Amplitude measurements Measurement Description Amplitude The high value less the low value measured over the entire waveform or gated region. High This value is used as 100% whenever high reference, mid reference, or low reference values are needed, such as in fall time or rise time measurements.
Page 136 Analyzing Waveforms Time measurements (cont.) Measurement Description - Duty Cyc The ratio of the negative pulse width to the signal period expressed as a percentage. The duty cycle is measured on the ﬁrst cycle in the waveform or gated region. Period The time required to complete the ﬁrst cycle in a waveform or gated region.
Page 137 Analyzing Waveforms Histogram measurements (cont.) Measurement Description Mean ±2 Std Dev Displays the percentage of points in the histogram that are within two standard deviations of the histogram mean. Mean ±3 Std Dev Displays the percentage of points in the histogram that are within three standard deviations of the histogram mean.
Page 138: Customizing An Automatic Measurement
Analyzing Waveforms Customizing an Automatic Measurement Customize automatic measurements by using gating, modifying measurement statistics, or adjusting the measurement reference levels. Gating Use Gating to conﬁne the measurement to a certain part of a waveform. 1. Select Measure > Gating > Gating ..2.
Page 139 Analyzing Waveforms Statistics Statistics turn on automatically with measurements. Statistics characterize the stability of the measurement. 1. To change the statistics that are displayed, select Measure > Statistics, and then select Mean or All. (All includes min, max, mean, standard deviation, and population.) 2.
Page 140 Analyzing Waveforms Annotate Measurements 1. To annotate measurements, select Annotation from the Measurements setup control window. From the drop down list, select the measurement to annotate. 2. To select the amount of measurement annotation detail, select Measure > Annotation > Standard or Detailed. MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual...
Page 141: Taking Cursor Measurements
Analyzing Waveforms Reference Levels Reference levels determine how time-related measurements are taken. 1. Select Measure > Reference Levels..2. Adjust the measurement reference levels to different relative or absolute values. High and Low references are used to calculate rise and fall times. The default High reference is 90% and Low reference is 10%.
Page 142 Analyzing Waveforms 2. Select the Cursor Source. 3. Select a cursor type from one of the following: H Bars measure amplitude (typically in volts or amperes) V Bars measure horizontal parameters (typically time) Waveform and screen cursors measure vertical and horizontal parameters simultaneously.
Page 143: Setting Up A Histogram
Analyzing Waveforms Quick Tips Use the Cursor Track Mode to set the cursors to move in tandem. Use the Cursor Independent mode to move the cursors separately. If you use the zoom graticule, you can place a cursor directly on a speciﬁc waveform point to take precision measurements.
Page 144 Analyzing Waveforms 4. To make adjustments to the histogram scale or the size and location of the histogram box, select Measure > Waveform Histograms, and then use the Histogram Setup control window. 5. You can also take automated measurements on histogram data. (See page 113, Taking Automatic Measurements.) Quick Tips...
Page 145: Using Math Waveforms
Analyzing Waveforms Using Math Waveforms Create math waveforms to support the analysis of your channel and reference waveforms. By combining and transforming source waveforms and other data into math waveforms, you can derive the data view that your application requires. Use the following procedure for predeﬁned math equations.
Page 146 Analyzing Waveforms 2. Click Editor. 3. Build your advanced math waveform expression using sources, operators, constants, measurements, variables, and functions. 4. When you have deﬁned the expression to your satisfaction, click Apply. 5. To add your own ﬁlter, click the Filter tab.
Page 147 Analyzing Waveforms 6. Double click the folder for the ﬁlters you want to use. Double click the ﬁlter you want to use. 7. Build your math expression using the ﬁlter you selected. 8. When you have deﬁned the expression to your satisfaction, click Apply. Quick Tips Double clicking on a math expression opens the Math Equation Editor.
Page 148: Using Spectral Analysis
Analyzing Waveforms Using Spectral Analysis Use the following procedure for predeﬁned spectral math expressions. See the online help for more information. 1. Select Math > Math Setup..2. Choose one of the predeﬁned spectral math expressions. 3. Click Basic. 4. Click Resolution BW or Frequency Span and use the keypad or the multipurpose knobs to adjust the spectral display.
Page 149 Analyzing Waveforms Use the following procedure to build an advanced spectral math expression. 1. Select Math > Advanced Spectral..MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual...
Page 150 Analyzing Waveforms 2. Select the math waveform that you want to deﬁne. 3. Click the type of spectral waveform that you want to create. To redeﬁne a waveform, click Clear. 4. Select the source waveform. 5. Adjust the spectral waveform, using the controls in the Spectral Setup control window and use the multipurpose knobs.
Page 151: Using Mask Testing
Analyzing Waveforms 6. View time-domain and frequency-domain waveforms simultaneously. Use Gating to select only a part of the time-domain waveform for spectral analysis. (See page 118, Gating.) Quick Tips Sources for spectral math waveforms must be channel or other math waveforms. Use short record lengths for faster instrument response.
Page 152 Analyzing Waveforms 2. Select the signal source. 3. Click the Masks tab. 4. Select the Type and standard. 5. Click a Conﬁgbutton to access a Mask Conﬁguration control window, where you can adjust how masks and violations are displayed and how Mask Autoset and Autoﬁt are conﬁgured.
Page 153 Analyzing Waveforms 7. Click Lock Mask to Wfm On to track mask changes in the horizontal or vertical settings. 8. Toggle Hit Count On to highlight violations during a mask test. 9. Click Autoset to automatically align the waveform with the mask based on the characteristics of the input signal.
Page 154 Analyzing Waveforms 14. Select the polarity of the waveform you want to test. 15. Toggle Repeat On to run the mask test continuously. 16. Select the notice you want when the test is complete. 17. Click the Pass/Fail Results tab to view the test results.
Page 155: Using Limit Testing
Analyzing Waveforms Using Limit Testing Optional limit testing allows you to compare an active signal with a template waveform. Build your template waveform from a known good signal and use it to compare to an active signal to perform pass/fail testing. 1.
Page 156 Analyzing Waveforms 6. Click Failure Notiﬁcation to set up the Failure Notiﬁcation. 7. Select the failure notiﬁcation(s), and then click Setup to return to the setup control window. 8. Click Lock Template to Waveform On to lock the vertical scale or position of the template to that of the source waveform.
Page 157: Myscope
MyScope MyScope MyScope allows you to create custom control windows that include only the controls that you use regularly. Instead of switching between several control windows, put the controls you use into a custom control window. This section contains procedures for creating and using MyScope control windows. Detailed information is available in the online help.
Page 158 MyScope 3. Click a control to preview it. 4. Double-click the control or click the + to expand the control list. (If there is no +, then the control cannot be customized further.) MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual...
Page 159 MyScope 5. Clear the check boxes to remove any components that you do not want included in the control. 6. Click and drag the control to your MyScope control window. The control will snap to the nearest grid location when you release the mouse. Change the placement of the control in your MyScope control window by clicking and dragging.
Page 160 MyScope 7. Click New Tab to add a tab to your MyScope control window. You can have up to six tabs. 8. To rename a tab do one of the following: Click Rename Tab. Double-click the tab, and then type the new name.
Page 161: Using Myscope Control Windows
MyScope Using MyScope Control Windows To open a previously deﬁned MyScope control window, do the following: 1. Select MyScope > Open Control Window... or one of the ﬁve most recently used MyScope windows. 2. Select the MyScope control window you want to use, and then click Open.
Page 162 MyScope To edit a MyScope control window do the following: 1. Select MyScope > Edit Control Window..2. Select the control window you want to edit, and then click Open. Quick Tips Some controls function differently in a MyScope control window than they do in the standard control window. For details, see the online help.
Page 163: Saving And Recalling Information
Saving and Recalling Information Saving and Recalling Information This section contains procedures for saving and recalling screen captures and setups, saving measurements, using the clipboard, and printing on your instrument. Detailed information is available in the online help. Saving Screen Captures 1.
Page 164: Saving Waveforms
Saving and Recalling Information 3. Select the location to save the screen capture. 4. Type in a name for the screen capture, or use the default name, and then select a ﬁle type. 5. Click Save. Quick Tip To quickly save multiple screen captures, select Set Front Panel Print Button to Save, and then click Save. You can now save a screen capture by pushing the front panel Print button.
Page 165 Saving and Recalling Information 2. Click Waveform. 3. Click Options... to specify the Waveform Data Range, FastFrame Data Range, Waveform Detail, Data Destination, Source, or Data Ordering; otherwise, skip to step 4. 4. Select the Source. 5. You can either save the waveform as a reference waveform in the instrument memory or as a .wfm ﬁle in a Windows directory.
Page 166: Recalling Waveforms
Saving and Recalling Information Recalling Waveforms 1. Select File > Recall..2. Click Waveform. 3. Select the Destination of the waveform you are recalling. 4. Select the waveform to recall. 5. Click Recall. Clicking Recall turns on the reference waveform and activates the Reference Waveform control window.
Page 167: Saving Digital Waveforms
Saving and Recalling Information Quick Tip You can save several different ﬁle types but you can only recall setup (*.set) ﬁles and waveform (*.wfm) ﬁles. Saving Digital Waveforms On MSO Series instruments, you can save digital waveforms in a .csv format ﬁle. 1.
Page 168: Saving Instrument Setups
Saving and Recalling Information Saving Instrument Setups 1. Select File > Save or Save As > Setup..2. Click Setup. 3. Select the location where you want to save the setup. Either save the setup to the instrument memory in one of the ten setup storage locations or as a .set ﬁle in a Windows directory.
Page 169: Recalling Instrument Setups
Saving and Recalling Information Recalling Instrument Setups 1. Select File > Recall..2. Click Setup. 3. Select the setup you want to recall. Recall a setup ﬁle from one of the ten locations in the instrument memory or from a Windows directory. To retain your current deskew settings, click Don’t recall deskew values.
Page 170: Saving Measurements
Saving and Recalling Information Saving Measurements 1. Select File > Save or Save As > Measurement..2. Click Options... to specify Displayed Measurements, Measurement Snapshot, or Measurement Format; otherwise, skip to step 3. 3. Select the location to save the measurement.
Page 171: Saving User Masks
Saving and Recalling Information Saving User Masks 1. Select File > Save or Save As > User Mask. 2. Click User Mask. 3. Select the location to save the mask. 4. Type in a name for the mask, and then select a ﬁle type.
Page 172: Saving Histogram Data
Saving and Recalling Information Saving Histogram Data 1. Select File > Save or Save As > Histogram Data. 2. Select Histogram. Depending on previous selections, you may need to select More > Histogram Data to display the Histogram selection. 3. Select the location to save the histogram. 4.
Page 173: Saving Timestamps
Saving and Recalling Information Saving Timestamps 1. Select File > Save or Save As > Timestamp Table. 2. Click Timestamp. Depending on previous selections, you may need to select More > Timestamp Table to display the Timestamp selection. 3. Click Options... to specify the Source or FastFrame Data Range;...
Page 174: Copying Your Results To The Clipboard
Saving and Recalling Information Copying Your Results to the Clipboard Use the following procedure to set the output content and format for images, waveforms, or measurements to be copied to the Microsoft clipboard. 1. Select Edit > Copy Setup..2. Click the Images, Waveforms, or Measurements tab, and then select the desired options.
Page 175: Printing A Hard Copy
Saving and Recalling Information To copy images, waveforms, or measurements, use the following procedure: 1. Select the item that you want to copy. 2. Select Edit > Copy or press Ctrl + C. 3. Press Ctrl + V to paste the item into a Windows application.
Page 176 Saving and Recalling Information Your Print and Page Setup dialog boxes will depend on the printer you are using. 2. Click Page Setup..3. Select the printing parameters. MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual...
Page 177: Run Application Software
Each application is available for ten free trials on your instrument. These applications provide application-speciﬁc measurement solutions. Some examples are described below. Additional packages may be available. Some applications may not be available on your instrument. Contact your Tektronix representative or visit our Web site at www.tektronix.com for more information.
Page 178 Run Application Software Use SVP, SVM, and SVE to validate wideband designs and characterize wideband spectral events. Use SVO for ﬂexible OFDM analysis, requires SVE. Use SVT for settling time measurements (frequency and phase), requires SVE. Use USB to characterize USB 2.0 signals including mask testing and parametric testing. Use USB3 to verify, characterize, debug, and compliance test USB 3.0 systems.
Page 179: Application Examples
Application Examples Application Examples This section contains examples of using your instrument in common troubleshooting tasks and extending the use of your instrument. Capturing Intermittent Anomalies One of the most difﬁcult tasks that design engineers face is tracking down the cause of intermittent failures. If you know what type of anomaly you are looking for, it is easy to conﬁgure the oscilloscope advanced triggering capability to isolate it.
Page 180 Application Examples 3. Select Display > Display Persistence > Inﬁnite Persistence. In this example, you are looking at a clock signal. After observing the signal for 1–2 minutes, but before you look for the problem elsewhere, go to step 4. 4.
Page 181 Application Examples 6. To trigger on the glitch that you identiﬁed in step 5, select Trig > Glitch Setup..7. Select the appropriate polarity. 8. Click Level, and then set the level based on what you found in step 5. 9.
Page 182 Application Examples 10. Click E-mail on Trigger On. (See page 86, Setting Up E-Mail on Event.) 11. Push Single to trigger on a single glitch. MSO70000/C, DSA70000B/C, DPO70000B/C, and DPO7000 Series MSO5000 and DPO5000 Series MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual...
Page 183: Using The Extended Desktop And Openchoice Architecture For Efficient Documentation
Application Examples Using the Extended Desktop and OpenChoice Architecture for Efﬁcient Documentation Engineers often need to document their lab work for future reference. Instead of saving screen shots and waveform data to a CD or USB memory device, and then generating a report later, try using the OpenChoice architecture to document your work in real time.
Page 184 Application Examples 5. Select Edit > Select for Copy > Full Screen (bitmap). 6. Press Ctrl+C. 7. Click in the Word document wherever you want to place the screen shot, and then press Ctrl+V. Quick Tips The instrument comes with a variety of OpenChoice software tools designed for maximum efﬁciency and connectivity to the rest of your design environment.
Page 185: Triggering On Buses
Application Examples Triggering on Buses You can use your instrument to trigger on I C, SPI, RS-232/422/485/UART, USB, and CAN buses. The instrument can display both physical layer (as analog waveforms) and protocol level information (as digital and symbolic waveforms). NOTE.
Page 186: Triggering On A Video Signal
Application Examples Triggering on a Video Signal The instrument supports triggering on NTSC, SECAM, PAL, and high deﬁnition signals. To trigger on the video ﬁelds: NOTE. The video trigger type is available only on DPO7000, MSO5000, and DPO5000 Series instruments. 1.
Page 187 Application Examples Triggering on Lines To look at the video lines in the ﬁeld: 1. Select Trig > A Event (Main) Trigger Setup..2. Set the A trigger type and source in the A Event tab. Select Format > 525i/NTSC. 3.
Page 188: Correlating Data Between A Tektronix Oscilloscope And Logic Analyzer
The iView capability seamlessly integrates and automatically time-correlates data from Tektronix logic analyzers and oscilloscopes, so you can transfer analog waveforms from the oscilloscope to the logic analyzer display with the click of a mouse. View time-correlated analog and digital signals side-by-side and pinpoint the source of elusive glitches and other problems in moments.
Page 189: Appendix
Use a 75% isopropyl alcohol solution as a cleaner and rinse with deionized water. Before using any other type of cleaner, consult your Tektronix Service Center or representative. To prevent getting moisture inside the instrument during external cleaning, use only enough liquid to dampen the cloth or applicator.
Page 190: Appendix
The following download location is a fast and easy way to get the latest software version. To download the latest version of software, go to the home page of the Tektronix Web site (www.tektronix.com), and locate the Downloads section on that page. Enter the application name in the ENTER MODEL NUMBER text box, and select Software in the Select Download Type pull-down menu.
Page 191: Appendix
The TPP0500 & TPP1000 10X Passive Probes are compact passive probes with 10X attenuation that are designed for use with Tektronix MSO/DPO4000B & 5000 Series oscilloscopes. The probes have no user- or Tektronix-serviceable parts. Connecting the Probe to the Oscilloscope Connect the probe as shown in the illustrations below.
Page 192: Compensating The Probe
Appendix Compensating the Probe MSO/DPO5000. Perform the following steps to compensate the probe: 1. Connect the probe to an oscilloscope channel. 2. Connect the probe to the probe compensation output terminals on the oscilloscope front panel. 3. Select Vertical > Probe Cal. 4.
Page 193 Hook tip Press the hook tip onto the probe tip and then clamp the hook onto the circuit Reorder Tektronix part number 013-0362-XX Micro Hook tip Use this tip to access test points in tight spaces. Press the hook tip onto the probe tip and then...
Page 194: Optional Accessories
Compact Probe Tip Ckt Board Test Point 131-4210-xx 020-3045-xx Wire, spool, 32 AWG Replacing the Probe Tip Order Tektronix part number 206-0610-xx for rigid tip replacement, or order part number 206-0611–xx for pogo pin replacement. Speciﬁcations Table 1: Electrical and mechanical speciﬁcations Characteristic...
Page 195: Performance Graphs
Appendix Performance Graphs Refer to the reference lead derating curve above when making ﬂoating measurements. Table 2: Environmental speciﬁcations Characteristics Description Temperature Operating –15 °C to +65 °C (+5 °F to +149 °F) Nonoperating –62 °C to +85 °C (–80 °F to +185 °F) Humidity Operating 5% to 95% relative humidity @ up to 30 °C...
Page 196: Safety Summary
Equipment Recycling. This product complies with the European Union’s requirements according to Directive 2002/96/EC on waste electrical and electronic equipment (WEEE). For more information about recycling options, check the Support/Service section of the Tektronix Web site (www.tektronix.com). Safety Summary Review the following safety precautions to avoid injury and prevent damage to this product or any products connected to it.
Page 197 Phone: 1-800-833-9200 Address: Tektronix, Inc. Department or name (if known) 14200 SW Karl Braun Drive P.O. Box 500 Beaverton, OR 97077 Email: techsupport@tektronix.com Warranty Information For warranty information, go to www.tektronix.com/warranty MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual...
Page 198: Appendix
Copyright © Tektronix, Inc. All rights reserved. Product Description The P6616 general-purpose logic probe connects the Tektronix MSO5000 Series and MSO4000B Series of mixed-signal oscilloscopes to digital buses and signals on your target system. The probe contains 16 data channels split between two lead sets (GROUP 1 and GROUP 2).
Page 199: Connecting The Probe To The Oscilloscope
Appendix Connecting the Probe to the Oscilloscope Connect the probe as shown in the illustration below. 1. Insert the probe label-side up into the connector on the oscilloscope. 2. To remove the probe, squeeze the buttons on the side and pull out the probe. MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual...
Page 200: Connecting The Probe To Your Circuit
Setting up the Probe To set and view the digital channel parameters, do the following: On MSO5000 Series instruments, select Vertical>Digital Setup or push the D15-D0 button. On MSO4000B Series instruments, push the D15–D0 button. The parameters listed below can be set on each digital channel: Threshold voltage and vertical position (the default threshold setting is 1.4 V)
Page 201: Typical Application
Instructions 1 ea 071-2831-XX Instructions are included with the probe, but not in the accessory kit. The instructions can be downloaded at www.tektronix.com/manuals. These optional accessories can be ordered for your probe: Description Part number P6960 Probe D-MAX Footprint to Square Pin Header Adapter...
Page 202: Specifications
Equipment Recycling. This product complies with the European Union’s requirements according to Directive 2002/96/EC on waste electrical and electronic equipment (WEEE). For more information about recycling options, check the Support/Service section of the Tektronix Web site (www.tektronix.com). MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual...
Page 203: Safety Summary
Appendix Safety Summary To avoid potential hazards, use this probe only as speciﬁed. Connect and Disconnect Properly. Connect the probe output to the measurement instrument before connecting the probe to the circuit under test. Disconnect the probe input and the probe ground from the circuit under test before disconnecting the probe from the measurement instrument.
Page 204: Contacting Tektronix
Phone: 1-800-833-9200 Address: Tektronix, Inc. Department or name (if known) 14200 SW Karl Braun Drive P.O. Box 500 Beaverton, OR 97077 Email: techsupport@tektronix.com Warranty Information For warranty information, go to www.tektronix.com/warranty. MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual...
Page 205 Appendix Connecting the Probe to the Circuit MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual...
Page 206 Appendix MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual...
Page 207 Index Index Communication Examples, 159 measurements, 117 Export See Saving Accessories, 1 trigger, deﬁned, 71 Extended desktop, 10, 163 Acquisition Control panel, 16 Exterior cleaning, 169 input channels and Control panel map, 23 digitizers, 35 Copying, 154 sampling, 35 Coupling Acquisition modes Fast Acquisition, 43, 159 trigger, 68...
Page 208 Index How to Mask manage long record length autoﬁt, 132 Pan, 103, 104 waveforms, 103 autoset, 132, 134 knob, 104 search through and add marks margin tolerance, 133 Pattern lock trigger, 71 to waveforms, 105 pass/fail testing, 133 Pattern trigger use MagniVu, 56 saving, 151 deﬁned, 71...
Page 209 Index RS-232 trigger Speciﬁcations deﬁned, 72 operating, 2 Undo Last Autoset, 35 Runt trigger power supply, 5 User deﬁned color palette, 96 deﬁned, 71 Spectral analysis, 128 User marks, 105 Spectral grading color palette, 96 User preferences, 35 Spectral math expression advanced, 129 Safety Summary, v SPI, 165...
Page 210 Index Zoom, 97, 103 graticule size, 104 knob, 103 Zoom graticule size, 98 MSO70000/C, DPO/DSA70000B/C, DPO7000, and MSO/DPO5000 Series User Manual...

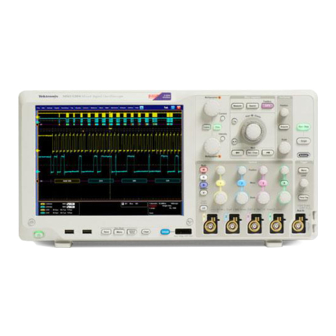

Tektronix MSO5000 Series User Manual

Quick Links

Related Manuals for Tektronix MSO5000 Series

Summary of Contents for Tektronix MSO5000 Series

This manual is also suitable for:

Table of Contents
