Brief Procedures (MSO70000/C Series, DSA/DPO70000B/C Series, and DPO7000 Series)
MSO70000/C, DSA70000B/C, DPO7000B/C, DPO7000, MSO5000, DPO5000 Series
3. Turn off all channels: If any of the front-panel channel buttons are lighted,
push those buttons to turn off the displayed channels as shown in the
following figure.

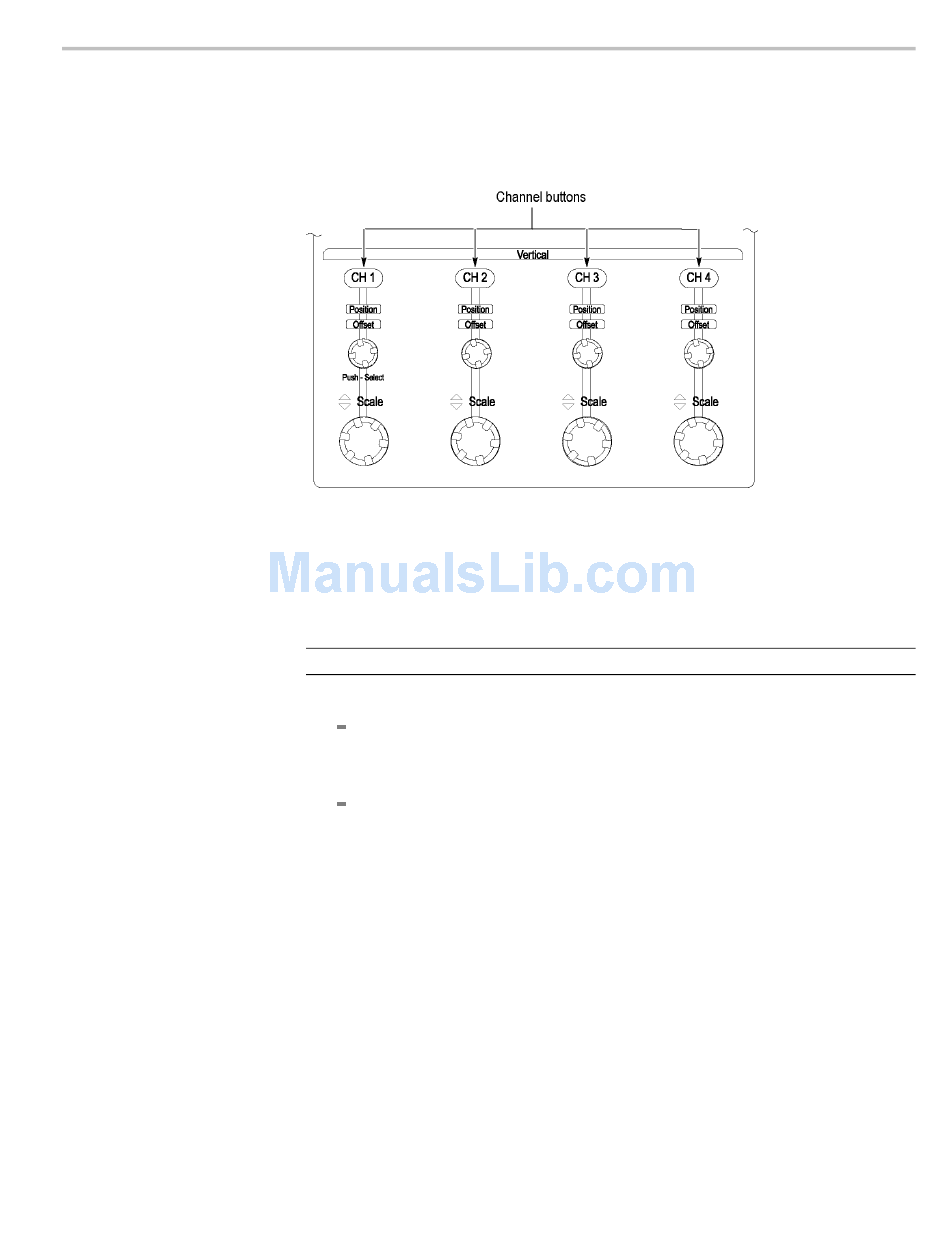

Figure 3-3: Channel button location

4. Select the channel to test: Push the channel button for the channel you are
currently testing. The button lights and the channel display comes on.
5. Set up the instrument:
NOTE.
If the AutoSet Undo window appears, click the X.
Push the front panel Autoset button. This sets the horizontal and vertical
scale and vertical offset for a usable display and sets the trigger source to
the channel you are testing.
Pull down the Vertical menu, select Vertical Setup. Confirm that the Ch1
Offset is about 0.0 mV.
3–7
