Performance Tests (MSO70000/C Series, DSA/DPO70000B/C Series, and DPO7000 Series)
Check Delta Time
Measurement Accuracy,
< 4 GHz models
3–76
Equipment Required
One 50 Ω, precision coaxial cable (Item 4)
One 50 Ω, 60 inch precision coaxial cable,
male-to-male SMA connectors (Item 28)
One Pulse Generator (Item 20)
One BNC elbow connector (Item 24)
One SMA "T", male to two SMA female
connectors (Item 22)
One SMA female to BNC male connector
(Item 23)
One SMA termination connector, short
circuit, (Item 25)
One SMA male-to-female BNC adapter
(Item 17)
This procedure checks the "sample rate" portion of the Delta Time Measurement
Accuracy as listed in Specifications. The previous procedure, that checks
the reference, (See page 1-1.) verified the "PPM" portion of the delta time
specification.

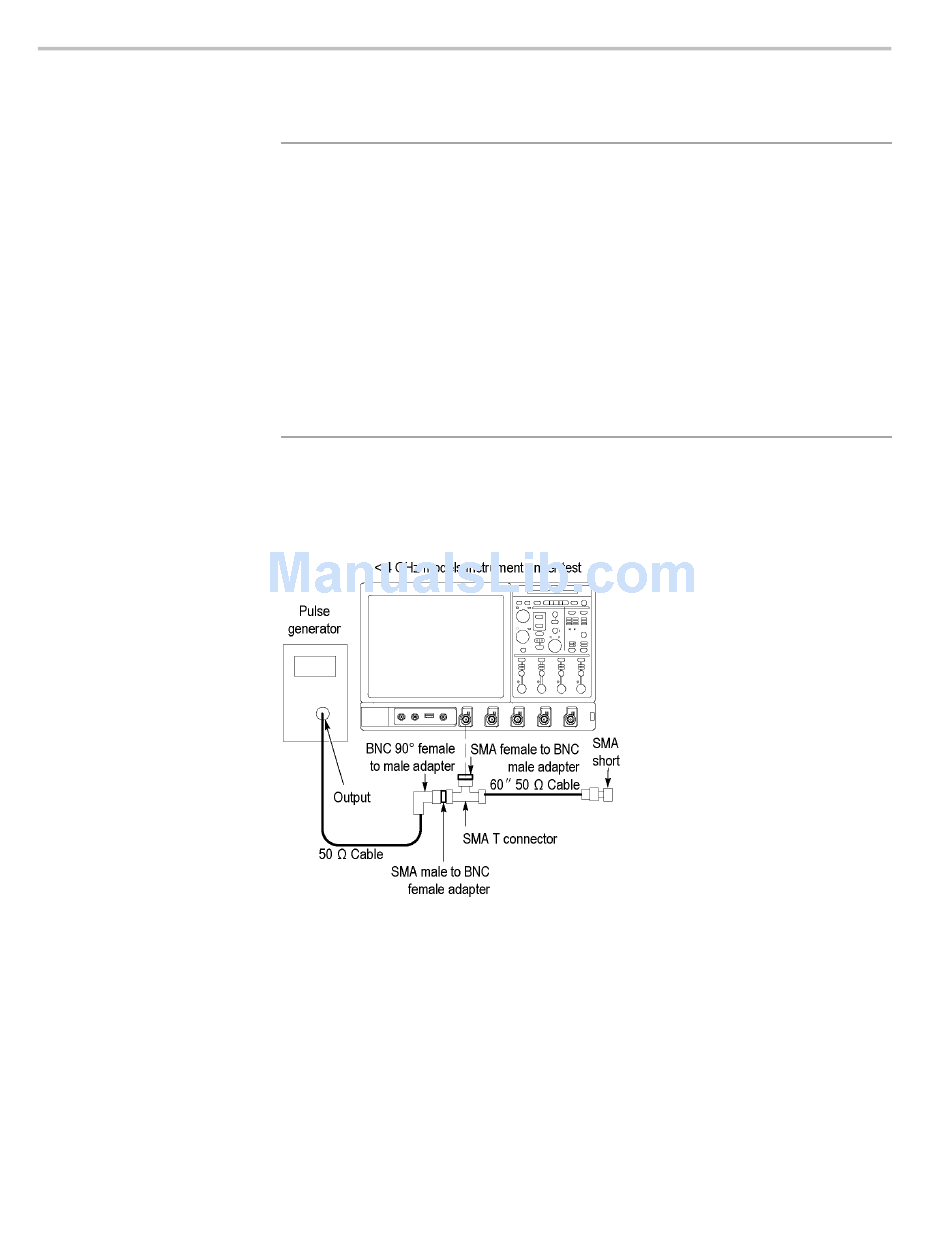

Figure 3-21: Delta time accuracy test hookup

MSO70000/C, DSA70000B/C, DPO7000B/C, DPO7000, MSO5000, DPO5000 Series
Prerequisites
(See page 3-18, Prerequisites.)
