Performance Verification (MSO70000/C Series, DSA/DPO70000B/C Series, and DPO7000 Series)

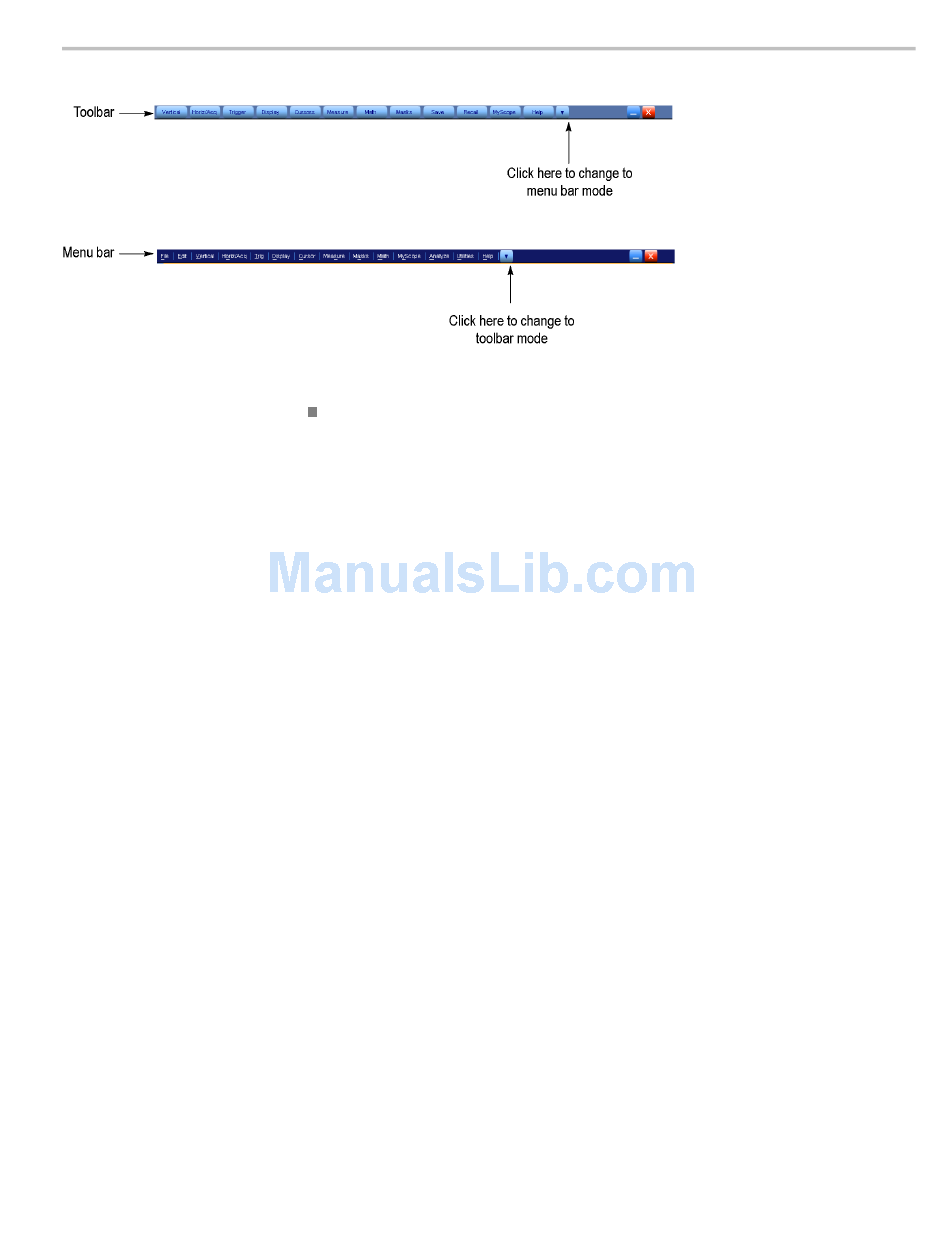

Figure 3-1: Toolbar and menu bar (< 4 GHz models shown)
MSO70000/C, DSA70000B/C, DPO7000B/C, DPO7000, MSO5000, DPO5000 Series
The procedures assume you have connected a mouse to the instrument so you
can click on the screen controls. If you have not connected a mouse, you can
use the touch screen to operate the screen controls.
3–3
