Performance Tests (MSO70000/C Series, DSA/DPO70000B/C Series, and DPO7000 Series)

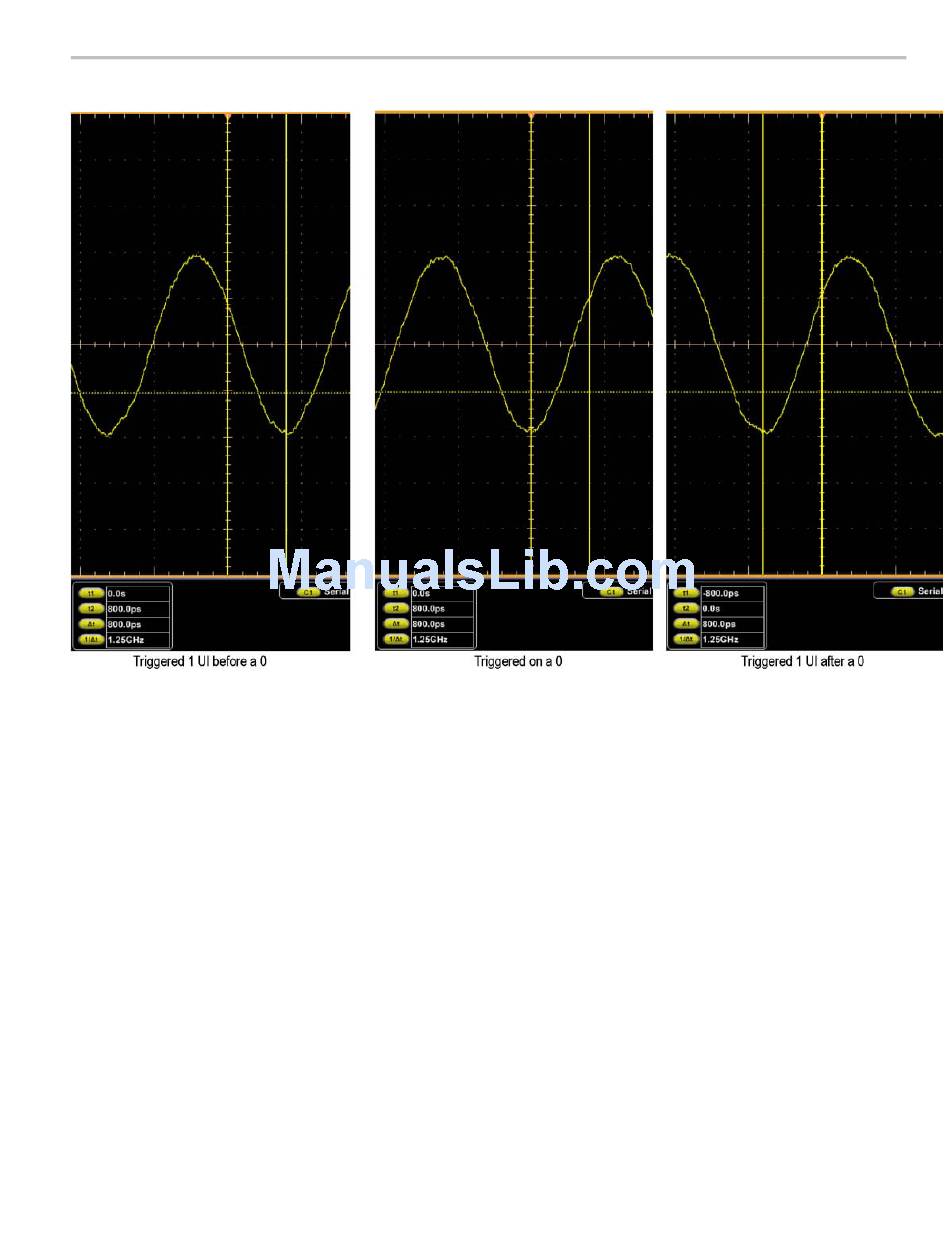

Figure 3-34: Isolated 0 triggering

MSO70000/C, DSA70000B/C, DPO7000B/C, DPO7000, MSO5000, DPO5000 Series
r. Verify that the instrument triggers at the 0 in the input signal. The absolute
value of the T1 cursor readout must be ≤325 ps. Enter pass or fail in the
test record.
s. Touch the Edit and then the Clear button.
t.
Enter data into Serial Pattern Data field for the next setting in the table
that is not yet checked. (See Table 3-13.)
u. Touch Enter.
v. Center Cursor 1 in the low of the waveform just to the left of the center
graticule line. (See Figure 3-34 on page 3-107.)
w. Verify that the instrument triggers one Unit Interval (UI) after the 0 in the
input signal. The absolute value of the T2 cursor readout must be ≤325 ps.
Enter pass or fail in the test record.
3–107
