Performance Tests (MSO70000/C Series, DSA/DPO70000B/C Series, and DPO7000 Series)
MSO70000/C, DSA70000B/C, DPO7000B/C, DPO7000, MSO5000, DPO5000 Series
f. Measure the test signal:
Set the frequency of the generator, as shown on screen to the test frequency
in the table that corresponds to the vertical scale set in substep c. (See
Table 3-7.) (See Figure 3-14.)
Set the horizontal Scale to the horizontal scale setting that corresponds to
the vertical scale set in substep c. (See Table 3-7.) Press PUSH-SET 50%
as necessary to trigger the signal.
Adjust the output of the generator until the reading on the power meter is
equal to the reading recorded on the power meter in substep e.
Read the results at the Chx Amplitude mean readout, which will
automatically measure the amplitude of the test signal. Refer to the
following figure.

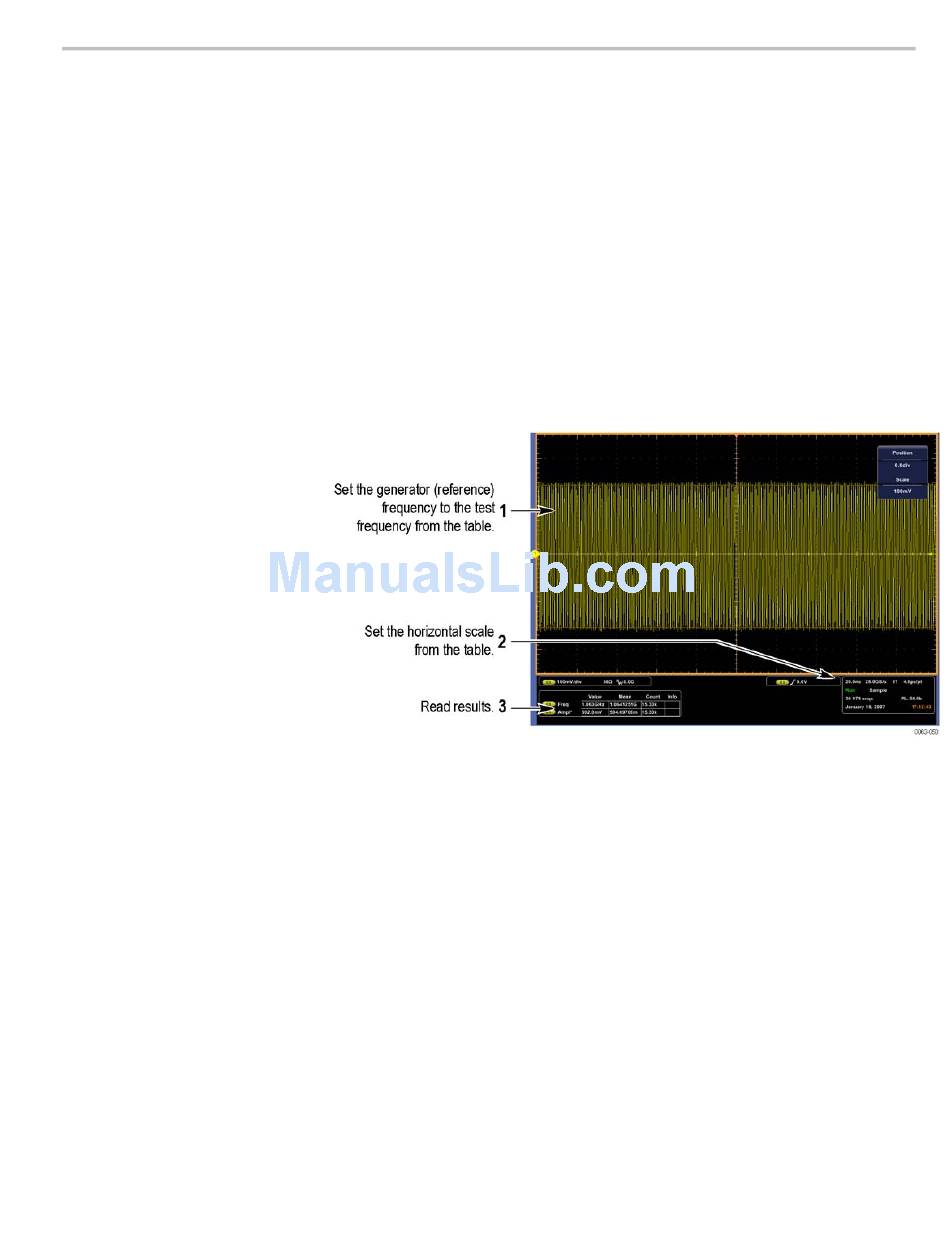

Figure 3-14: Measurement of analog bandwidth

3–63
