Performance Tests (MSO70000/C Series, DSA/DPO70000B/C Series, and DPO7000 Series)

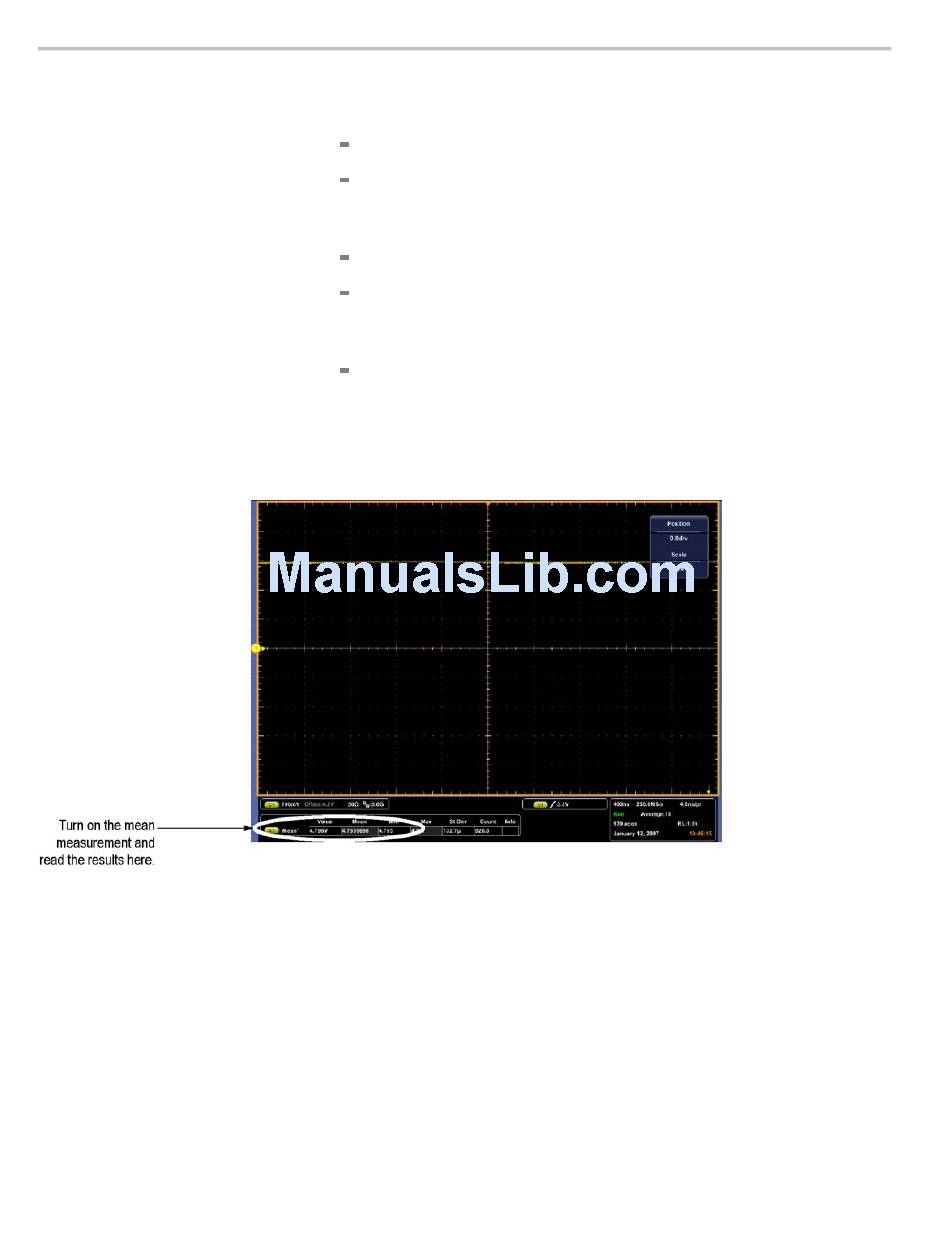

Figure 3-9: Measurement of DC accuracy at maximum offset and position

3–46
d. Display the test signal:
From the button bar touch Vertical and touch Position.
Use the keypad to set vertical position to a position setting listed in
the table for the current vertical scale setting. The baseline level may
move off screen.
Touch Offset.
Use the keypad to set vertical offset to the positive-polarity setting
listed in the table for the current vertical scale setting. The baseline
level will remain off screen.
Set the generator to the level and polarity indicated in the table for the
vertical scale, position, and offset settings you have made.
e. Measure the test signal: Press the X (close) button. Read the measurement
results at the measurement statistics Mean measurement readout. See
the following figure.
MSO70000/C, DSA70000B/C, DPO7000B/C, DPO7000, MSO5000, DPO5000 Series
