Tektronix MSO70000 Series Technical Reference page 53

Table 1-2: Horizontal and acquisition system specifications, all MSO70000/C, DSA/DPO70000B/C, and DPO7000
Series models (cont.)
Characteristic
Jitter noise floor, typical,
≥ 4 GHz models
Timebase stability (sample rate
jitter or jitter noise floor), typical,
< 4 GHz models
Timebase jitter with External
Reference, typical,
≥4 GHz models
MSO70000/C, DSA70000B/C, DPO7000B/C, DPO7000, MSO5000, DPO5000 Series
Specifications (MSO70000/C Series, DSA/DPO70000B/C Series, and DPO7000 Series)
Description
Applies to time periods as long as 10.0 μs. Typical jitter noise floor is measured at the
maximum, BWE enabled bandwidth:
MSO72004C, DSA72004C, DPO72004C
at 20 GHz
MSO72004C, DSA72004C, DPO72004C,
MSO71604C, DSA71604C, DPO71604C
at 16 GHz
MSO71254C, DSA71254C, DPO71254C
at 12.5 GHz
MSO70804, DSA70804B, DPO70804B
MSO70604, DSA70604B, DPO70604B
MSO70404, DSA70404B, DPO70404B

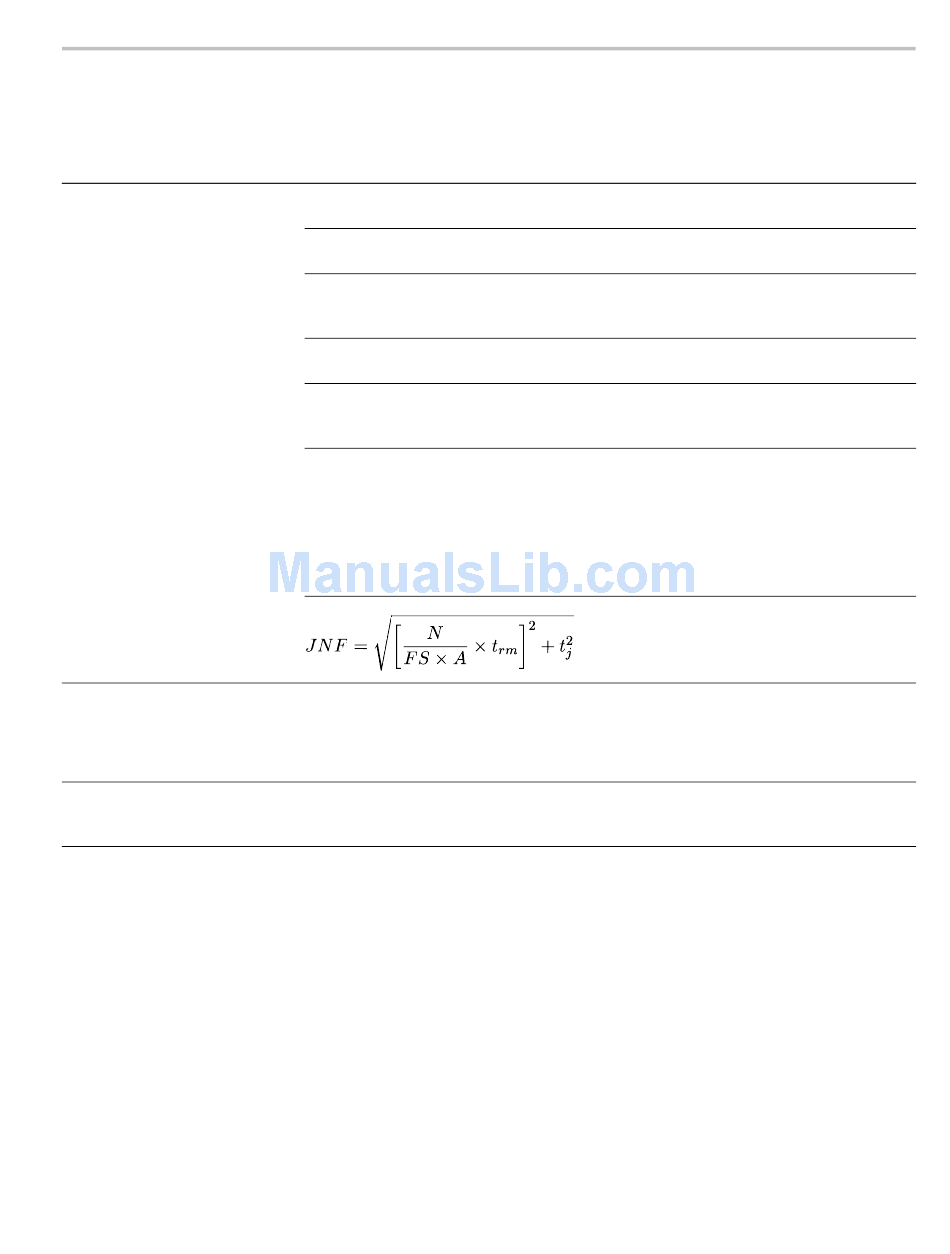

Calculate the jitter noise floor (JNF) for a given instrument setting using the following formula:
FS = full-scale setting (volts)
A = signal amplitude as a fraction of full-scale
t = 10 - 90% displayed (or measured) rise time (seconds)
rm
N = input-referred noise (volts rms)
t = short term aperture uncertainty (seconds rms)
j
Total:
<1.0 ps rms for record durations less than 10 μs
<2.5 ps rms for record durations less than 30 ms
<65 parts/trillion for record durations less than 10 s
=< 3 ps
RMS
at 100 ms delay
400 fs
300 fs
300 fs
450 fs
(seconds rms)
1–37
