Performance Tests (MSO70000/C Series, DSA/DPO70000B/C Series, and DPO7000 Series)

Serial Trigger Checks (Optional on Some Models)

Check Serial Trigger Baud
Rate Limits

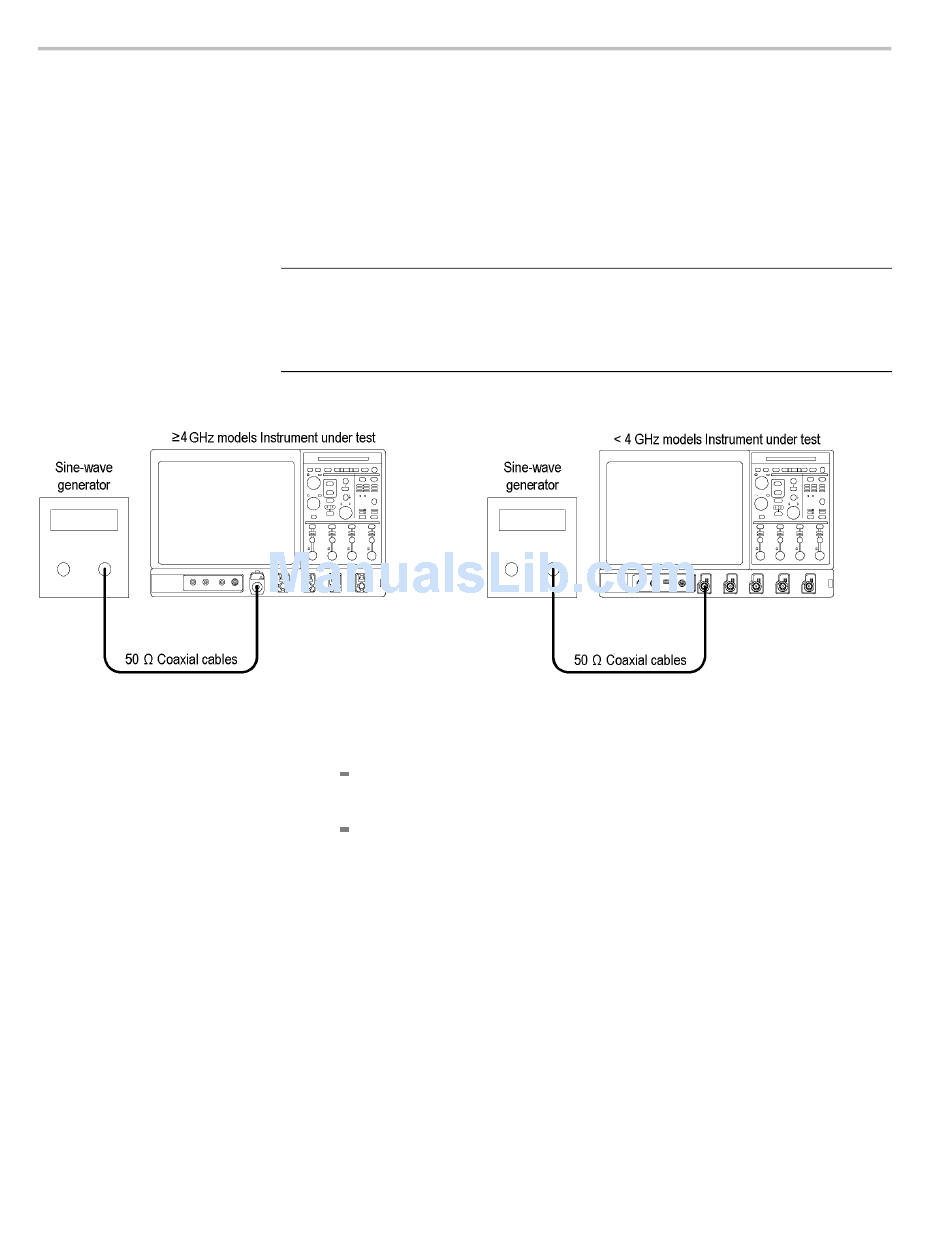

Figure 3-33: Initial test hookup

3–104
These procedures check those characteristics that relate to the serial trigger system
and are listed as checked in Specifications.
Equipment required
One precision 50 Ω coaxial cable (Item 4)
One sine-wave generator (Item 9)
One adapter (Item 19)
1. Install the test hookup and preset the instrument controls:
a. Hook Up the test-signal source: (See Figure 3-33.)
Connect the sine wave output of the sine-wave generator through a
50 Ω precision coaxial cable to Ch 1 through an adapter.
Set the sine-wave generator to output a 416 MHz sine wave.
b. Initialize the instrument: Press the Default Setup button.
MSO70000/C, DSA70000B/C, DPO7000B/C, DPO7000, MSO5000, DPO5000 Series
Prerequisites
(See page 3-18, Prerequisites.) Also, the
instrument must have passed Check DC
Voltage Measurement Accuracy. (See
page 3-42, Check DC Voltage Measurement
Accuracy.)
