2.20 Main Menu - Cascade Controller - Group 25
2.21.1 25-** Cascade Controller
2
Parameters for configuring the Basic Cascade Controller for sequence control of multiple pumps. For a more application oriented description and wiring
examples, see section
Application Examples, Basic Cascade Controller

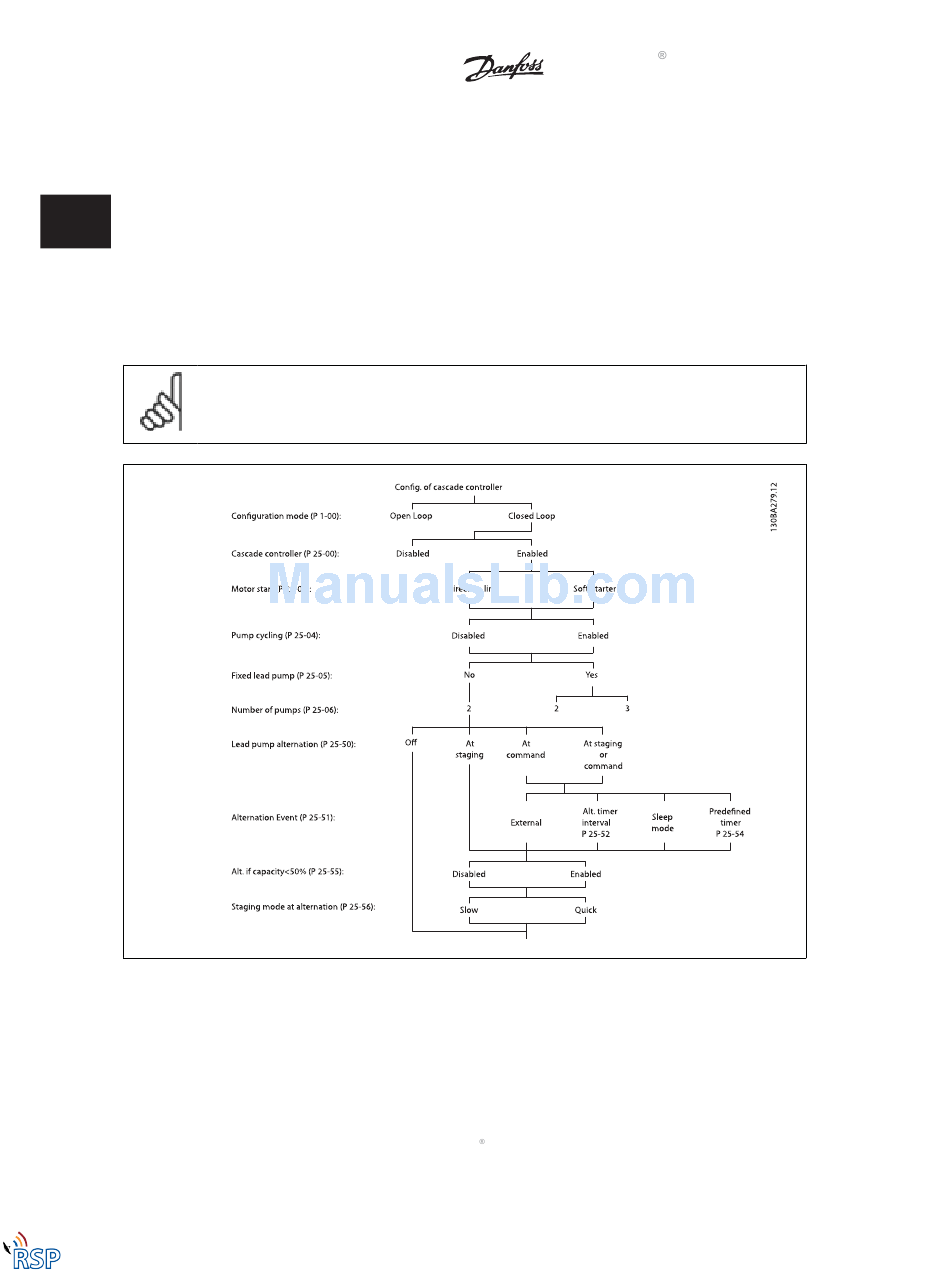

To configure the Cascade Controller to the actual system and the desired control strategy, it is recommended to follow the below sequence, starting with
par. 25-0*
System Settings
and next par. 25-5*
Bandwidth Settings
Parameters in 25-2*
done at the commissioning of the plant.
NB!
The Cascade Controller is supposed to operate in closed loop controlled by the built-in PI controller (Closed Loop selected in
ration Mode
destaged, but the variable speed pump will still be controlled by the frequency converter, now as an open loop configuration:
240
