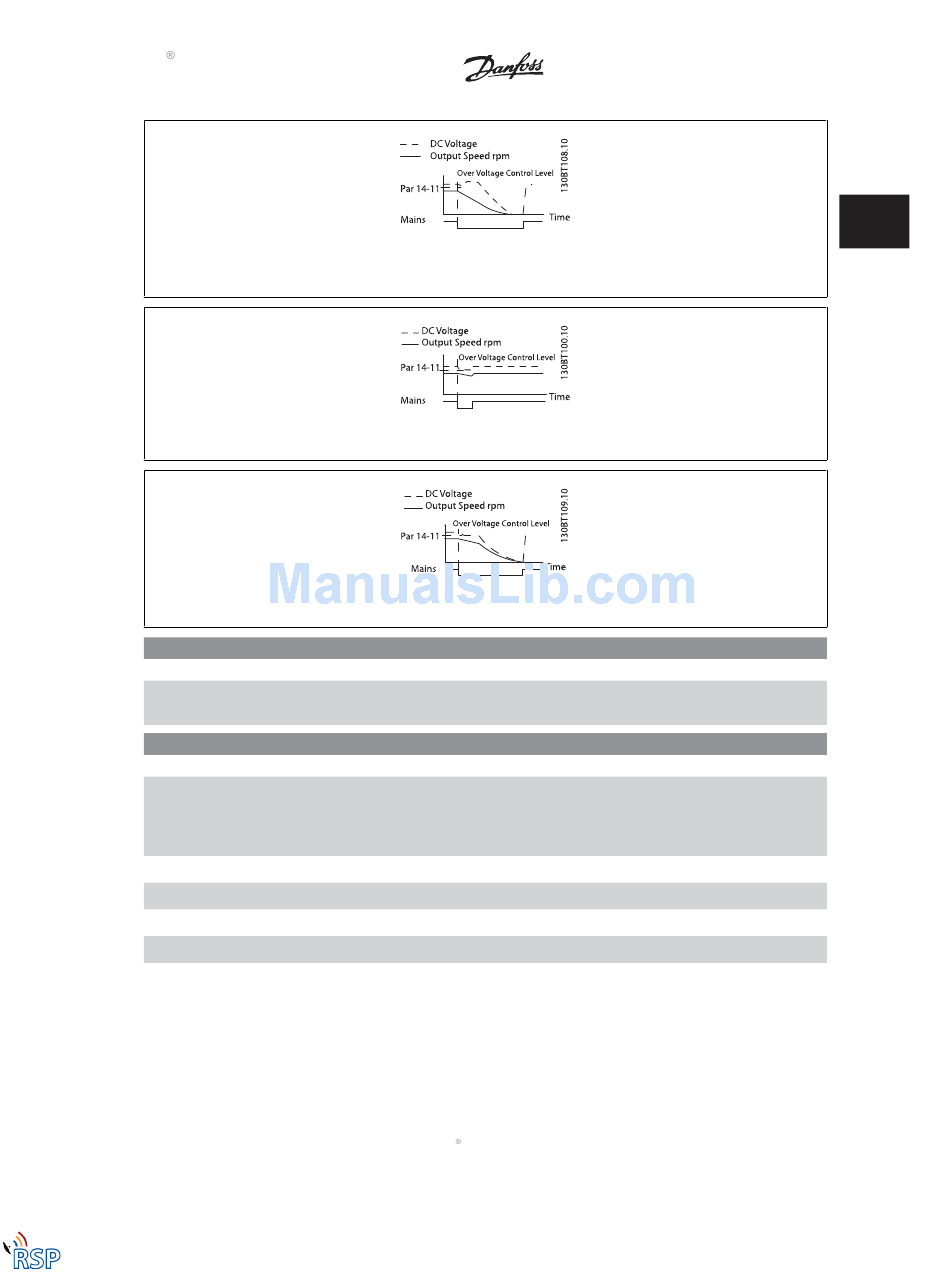

Illustration 2.3: Controlled Ramp-down, longer mains failure. Ramping down as long as the energy in the system allows for it, then the motor
is coasted.
Illustration 2.4: Kinetic Back-up, short mains failure. Ride through as long as the energy in the system allows for it.
Illustration 2.5: Kinetic Back-up, longer mains failure. The motor is coasted as soon as the energy in the system is too low.
14-11 Mains Voltage at Mains Fault
Range:
Application [180 - 600 V]
dependent*
14-12 Function at Mains Imbalance
Option:
[0] * Trip
[1] Warning
[2] Disabled
[3] * Derate
2.13.4 14-2* Trip Reset
Parameters for configuring auto reset handling, special trip handling and control card self test or initialisation.
