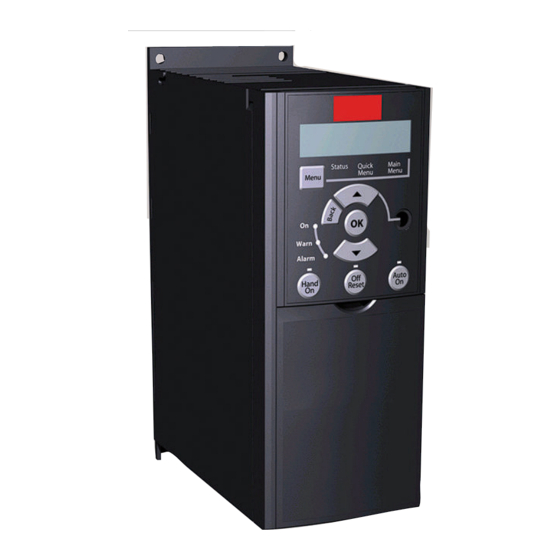

Danfoss VLT Micro Drive Quick Manual

Hide thumbs Also See for VLT Micro Drive:
Table of Contents

Advertisement

Quick Links

See also: Programming Manual , User Manual
MAKING MODERN LIVING POSSIBLE
Quick Guide
®
VLT
Micro Drive

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VLT Micro Drive and is the answer not in the manual?

Questions and answers

Related Manuals for Danfoss VLT Micro Drive

Summary of Contents for Danfoss VLT Micro Drive

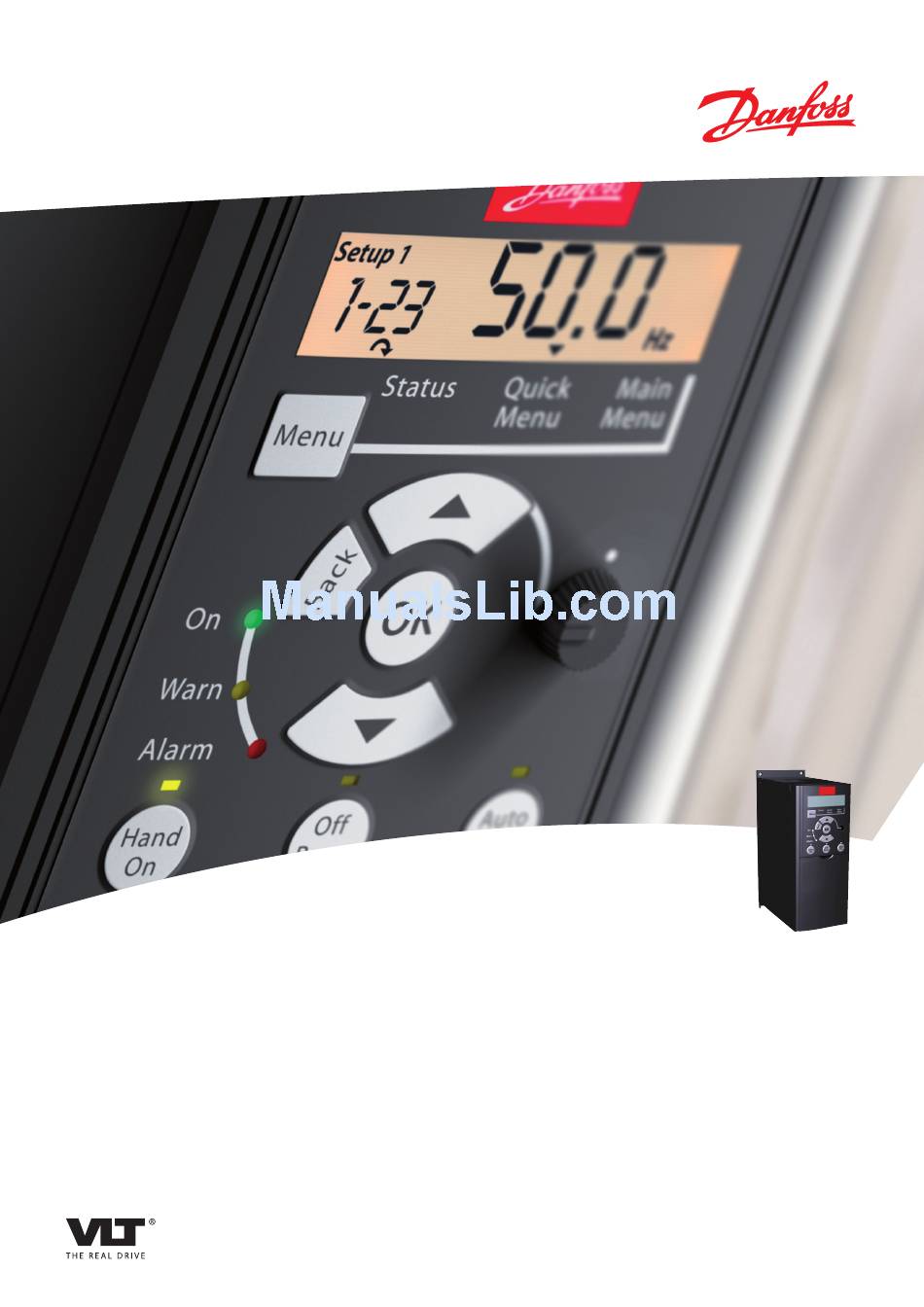

  • Page 1 MAKING MODERN LIVING POSSIBLE Quick Guide ® Micro Drive...

  • Page 2: Table Of Contents

    1.9.1 Derating for Ambient Temperature 1-22 1.9.2 Derating for Low Air Pressure 1-22 1.9.3 Derating for Running at Low Speeds 1-22 ® 1.10 Options for VLT Micro Drive 1-23 2 Index ® MG02B722 - VLT is a registered Danfoss trademark...
  • Page 3 ® Contents Micro Drive Quick Guide ® MG02B722 - VLT is a registered Danfoss trademark...

  • Page 4: Quick Guide

    Follow national and local codes regarding protective connections or other power connections while grounding of equipment with a leakage current > 3.5mA. the adjustable frequency drive is connected to line power. ® MG02B722 - VLT is a registered Danfoss trademark...

  • Page 5: Introduction

    Max. supply voltage allowed when connected to line from line power. power: 440 V. 1.2 Introduction As an option, Danfoss offers recommended line filters for improved harmonics performance. 1.2.1 Available Literature NOTE! This Quick Guide contains the basic information necessary for installing and running the adjustable frequency drive.

  • Page 6: Avoid Unintended Start

    IP20 rating units and requires 4 in [100 mm] clearance above and below for cooling. Refer to the specifications near the end of this document for details on environmental ratings for the adjustable frequency drive. ® MG02B722 - VLT is a registered Danfoss trademark...

  • Page 7: Mechanical Dimensions

    Table 1.4 Mechanical Dimensions 1.3.3 Electrical Installation in General NOTE! All cabling must comply with national and local regulations on cable cross-sections and ambient temperature. Copper conductors required, (140°–167°F [60°–75°C]) recommended. ® MG02B722 - VLT is a registered Danfoss trademark...
  • Page 8 0.15 Spade 3 [2.2] 3–5 [2.2–3.7] 4–10 [3.0–7.5] 0.15 Spade 15–20 [11.0– 0.15 15.0] 25–30 [18.5– 0.15 22.0] Spade connectors (0.25 in [6.3 mm] Faston plugs) Table 1.5 Tightening of Terminals ® MG02B722 - VLT is a registered Danfoss trademark...
  • Page 9 Short circuit protection: Non UL compliance: Danfoss recommends using the fuses mentioned in the If UL/cUL is not to be complied with, Danfoss recommends following tables to protect service personnel or other using the fuses mentioned in the table below, which will...

  • Page 10: Connecting To Line Power And Motor

    Remove the terminal cover using a screwdriver. Figure 1.4 S200 Switches 1-4 Figure 1.5 shows all control terminals of the adjustable frequency drive. Applying Start (term. 18) and an analog ® MG02B722 - VLT is a registered Danfoss trademark...
  • Page 11 ® Quick Guide Micro Drive Quick Guide reference (term. 53 or 60) makes the adjustable frequency drive run. Figure 1.5 Overview of Control Terminals in PNP configuration and Factory Settings ® MG02B722 - VLT is a registered Danfoss trademark...

  • Page 12: Power Circuit - Overview

    Improved power factor and EMC performance can be NOTE! achieved by installing optional Danfoss line filters. Danfoss power filters can also be used for load sharing. Voltage levels of up to 850 V DC may occur between terminals 1.3.8 Load Sharing/Brake +UDC/+BR and -UDC.

  • Page 13: Programming

    To exit 'Adjust' mode, press [OK] more than 1 s again with This software can either be ordered using code number changes saving or press [Back] without changes saving. 130B1000 or downloaded from the Danfoss website: www.danfoss.com/BusinessAreas/DrivesSolutions/software- Operation Keys download A yellow light above the operation keys indicates the active key.
  • Page 14 [1] -Max - +Max *[0] Clockwise If Par. 1-00 is set to 1-03 Torque Characteristics -400–399% *100% 3-02 Minimum Reference close-loop control -4,999–4,999 * 0.000 M4 and M5 only Table 1.8 ® MG02B722 - VLT is a registered Danfoss trademark 1-11...
  • Page 15 [0] 2400 Baud [65] ResetCounter B 5-57 Term. 33 Low Ref./Feedb. [20] Bus Reference [1] 4800 Baud 5-11 Terminal 19 Digital Input Value 6-92 Terminal 42 Digital Output Table 1.9 ® 1-12 MG02B722 - VLT is a registered Danfoss trademark...
  • Page 16 [12] AutoReset 20 16-52 Feedback [Unit] 8-56 Preset Reference Select 0.0–3,600 s * 0.0 s [13] Infinite auto reset See par. 8-50 * [3] LogicOr 8-8* Bus Communication Diagnostics Table 1.10 ® MG02B722 - VLT is a registered Danfoss trademark 1-13...
  • Page 17 LCP and RS485 connection are trying to update parameters simultaneously. [90] Parameter value is not valid in Occurs when trying to write an illegal value to a parameter. this mode ® 1-14 MG02B722 - VLT is a registered Danfoss trademark...
  • Page 18 Occurs when using an incorrect password for changing a entered password-protected parameter. These faults may be caused by line power distortions. Installing a Danfoss line filter may rectify this problem. Table 1.12 Warnings and Alarms Code List ® MG02B722 - VLT...

  • Page 19: Specifications

    6.61 [3.0] 96.4/ 96.7/ 97.1/ 97.4/ 97.2/ 97.3/ Efficiency [%], Best case/Typical 94.9 95.8 96.3 97.2 97.4 97.4 Table 1.14 Line Power Supply 3 x 200–240V AC At rated load conditions. ® 1-16 MG02B722 - VLT is a registered Danfoss trademark...
  • Page 20 6.6 [3.0] Efficiency [%], Best case/ 96.8/ 97.4/ 98.0/ 97.9/ 98.0/ 98.0/ Typical 95.5 96.0 97.2 97.1 97.2 97.3 Table 1.15 Line Power Supply 3x380–480 V AC At rated load conditions. ® MG02B722 - VLT is a registered Danfoss trademark 1-17...
  • Page 21 6.6 [3.0] Efficiency [%], Best case/ 98.0/ 98.0/ 97.8/ 97.7/ 98.1/ 98.1/ Typical 97.5 97.5 97.4 97.4 98.0 97.9 Table 1.16 Line Power Supply 3x380–480 V AC At rated load conditions. ® 1-18 MG02B722 - VLT is a registered Danfoss trademark...

  • Page 22: General Technical Data

    < 5V DC Voltage level, logic'1' PNP > 10V DC Voltage level, logic '0' NPN > 19V DC Voltage level, logic '1' NPN < 14V DC Maximum voltage on input 28V DC ® MG02B722 - VLT is a registered Danfoss trademark 1-19...
  • Page 23 III/pollution degree 2 1) IEC 60947 part 4 and 5 Control card, 10 V DC output Terminal number Output voltage 10.5 V ±0.5 V Max. load 25 mA ® 1-20 MG02B722 - VLT is a registered Danfoss trademark...
  • Page 24 EN 61800-3, EN 61000-6-3/4, EN 55011, IEC 61800-3 EN 61800-3, EN 61000-6-1/2, EN 61000-4-2, EN 61000-4-3, EMC standards, Immunity EN 61000-4-4, EN 61000-4-5, EN 61000-4-6 See section on special conditions ® MG02B722 - VLT is a registered Danfoss trademark 1-21...

  • Page 25: Special Conditions

    Micro Drive Quick Guide 1.9 Special Conditions 1.9.1 Derating for Ambient Temperature For altitudes above 6,600 feet [2 km], contact Danfoss regarding PELV. The ambient temperature measured over 24 hours should be at least 9° F [5°C] lower than the max. ambient Below altitudes of 3,300 ft [1,000 m], no derating is temperature.

  • Page 26: Options For Vlt ® Micro Drive

    130B2531 MCC 107 filter for 132F0026 130B2528 MCC 107 filter for 132F0028 130B2527 MCC 107 filter for 132F0030 Table 1.17 Danfoss line filters and brake resistors are available upon request. ® MG02B722 - VLT is a registered Danfoss trademark 1-23...
  • Page 27 ® Quick Guide Micro Drive Quick Guide ® 1-24 MG02B722 - VLT is a registered Danfoss trademark...

  • Page 28: Index

    Quick Menu..................0-10 Hand Mode..................0-12 RCD......................0-1 Reference....................0-1 Relay Output..................0-20 IP21......................0-23 Remote Mounting Kit..............0-23 Isolated Line Power Source............. 0-2 IT Line Power..................0-2 Slip Compensation................0-11 Status....................0-10 ® MG02B722 - VLT is a registered Danfoss trademark...
  • Page 29 ® Index Micro Drive Quick Guide Surroundings..................0-21 Thermistor................... 0-11 UL Compliance..................0-6 Control Panel LCP 11..............0-23 Control Panel LCP 12..............0-23 Voltage Level..................0-19 Warnings And Alarms............0-14, 0-15 ® MG02B722 - VLT is a registered Danfoss trademark...
  • Page 30 132R0029 MG02B722 Rev. 2012-08-22 *MG02B722*...
