MDIO

MDIO FEATURES

The MDIO interface hardware can receive complete MDIO frames without software intervention. The MDIO interface hardware can also
transmit complete MDIO frames without software intervention as long as the data to be sent is provided before receiving the turnaround
bits (TA) of the read or post read increment address frame. To assist in using and supplying the relevant data, interrupts are generated at
the end of every complete frame. If the PHYADR or DEVADD received does not match the expected values, the frame is not acted upon.
Interrupts can also be generated after every valid PHYADR and DEVADD to permit more sophisticated control within frames.

MDIO OVERVIEW

This MDIO interface is designed for compliance with CFP management interface architecture (as per Draft CFP MSA Management
Interface Specification Version 2.0 r07, June 30, 2011), as shown in Figure 35. This architecture includes an MDIO hardware interface to
handle the serial communications. The transfer of data between this CFP MDIO interface and the MDIO defined memory blocks is done
via software.
HOST MDIO
INTERFACE
(STA)

MDIO OPERATION

MDIO Frame Structure
The MDIO interface uses the communication data frame structure defined in IEEE 802.3 Clause 45. The frame structure is shown in Figure 36.
Each frame can be either an address frame or a data frame. The total bit length of each frame is 64, consisting of 32 bits preamble, and the
frame command body. The command body consists of six portions, as illustrated in Figure 36. More information about the various frame
types is provided in Table 288. All values are transmitted MSB first.
32-BIT PREAMBLE
CFP MODULE
(MMD)
MDIO BUS
2
CFP MDIO
3 OR 5 INTERFACE
PORT ADD BUS

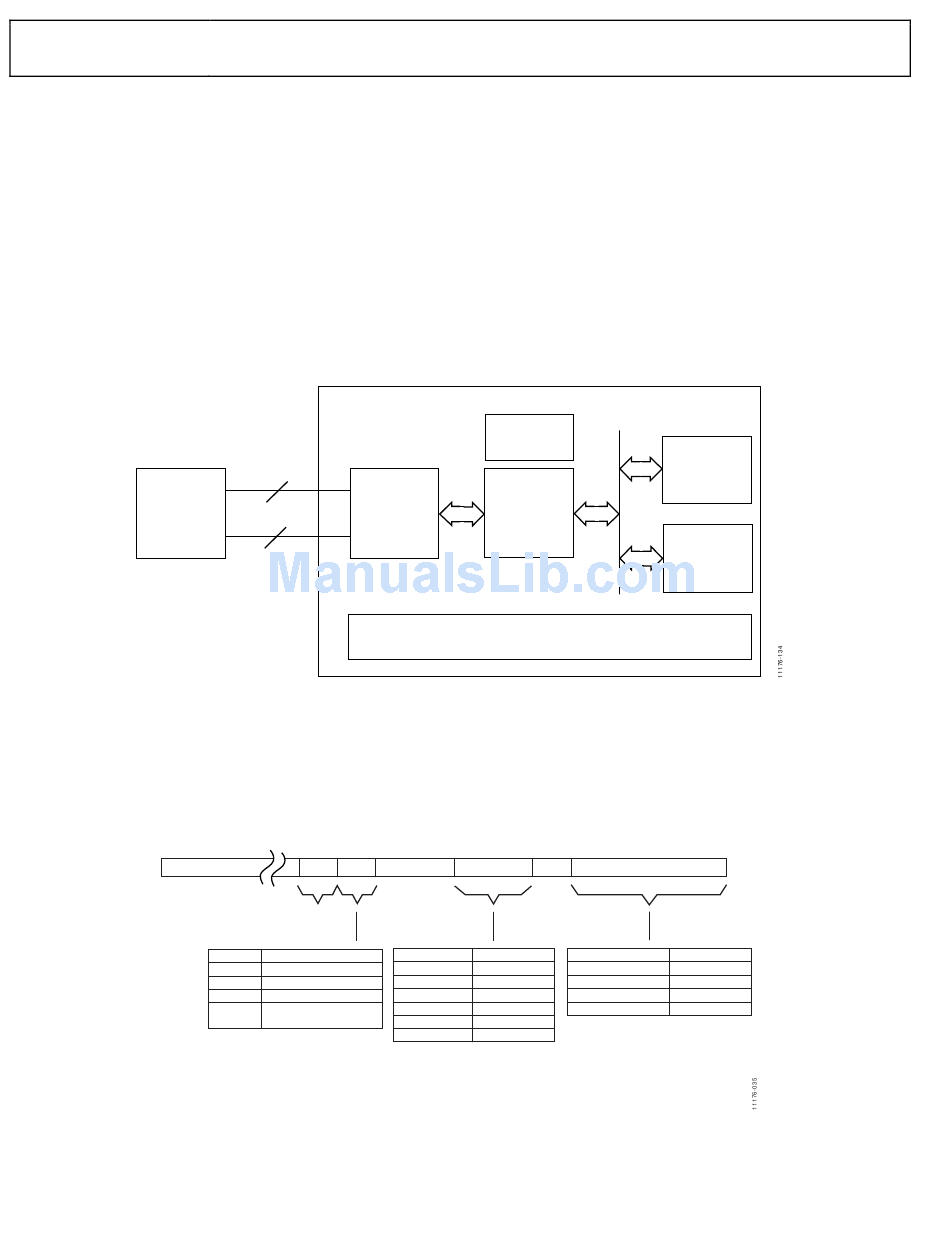

Figure 35. CFP Management Interface Architecture
ST OP
00
OP ACCESS TYPE
00 ADDRESS
01 WRITE
11 READ
10 POST READ
INCREMENT ADDRESS
ST = START BITS (2 BITS),
OP = OPERATION CODE (2 BITS),
PHYADR = PHYSICAL PORT ADDRESS (5 BITS),
DEVADD = MDIO DEVICE ADDRESS (OR CALLED DEVICE TYPE, 5 BITS),
TA = TURNAROUND BITS (2 BITS),
16-BIT ADDRESS/DATA IS THE PAYLOAD.
Figure 36. MDIO Frame Structure
ADuCM320 Hardware Reference Manual
0x0000
REGISTERS FOR
IEEE 802.3
0x7FFF
0x8000
CFP
REGISTER SET
0xFFFF
CPU/CONTROL LOGIC
PHYADR DEVADD TA
DEVADD DEVICE TYPE ACCESS TYPE
00000 RESERVED ADDRESS
00001 PMA/PMD WRITE
00010 WIS READ
00011 PCS READ INCREMENT
00100 PHY XS
00101 DTE XS
Rev. C | Page 184 of 196
INTERNAL BUS
NONVOLATILE
MEMORY
(NVM)
DIGITAL
DIAGNOSTIC
MONITORING
(DDM)
16-BIT ADDRESS/DATA
CONTENT
REG ADDRESS
WRITE DATA
READ DATA
READ DATA
