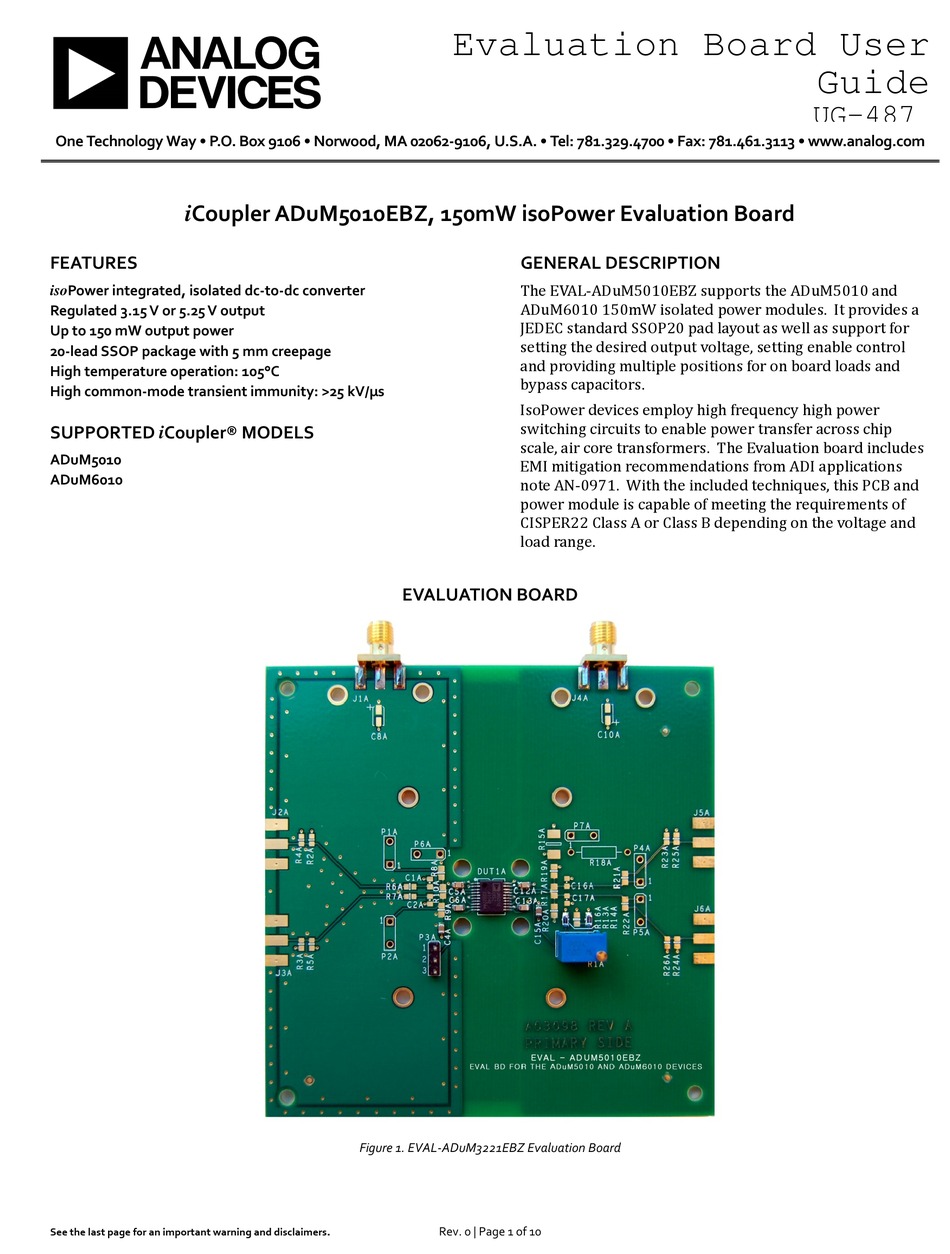

One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
iCoupler ADuM5010EBZ, 150mW isoPower Evaluation Board
FEATURES
isoPower integrated, isolated dc-to-dc converter
Regulated 3.15 V or 5.25 V output
Up to 150 mW output power
20-lead SSOP package with 5 mm creepage
High temperature operation: 105°C
High common-mode transient immunity: >25 kV/µs
SUPPORTED iCoupler® MODELS
ADuM5010
ADuM6010
See the last page for an important warning and disclaimers.
Evaluation Board User
The EVAL-ADuM5010EBZ supports the ADuM5010 and
GENERAL DESCRIPTION
ADuM6010 150mW isolated power modules. It provides a
JEDEC standard SSOP20 pad layout as well as support for
setting the desired output voltage, setting enable control
and providing multiple positions for on board loads and
bypass capacitors.
IsoPower devices employ high frequency high power
switching circuits to enable power transfer across chip
scale, air core transformers. The Evaluation board includes
EMI mitigation recommendations from ADI applications
note AN-0971. With the included techniques, this PCB and
power module is capable of meeting the requirements of
CISPER22 Class A or Class B depending on the voltage and
load range.
EVALUATION BOARD
Figure 1. EVAL-ADuM3221EBZ Evaluation Board
Rev. 0 | Page 1 of 10
Guide
UG-487
Advertisement
Table of Contents
Related Manuals for Analog Devices iCoupler ADuM6010EBZ
Summary of Contents for Analog Devices iCoupler ADuM6010EBZ
-
Page 1: Features
Evaluation Board User Guide UG-487 One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com iCoupler ADuM5010EBZ, 150mW isoPower Evaluation Board The EVAL-ADuM5010EBZ supports the ADuM5010 and FEATURES GENERAL DESCRIPTION ADuM6010 150mW isolated power modules. -
Page 2: Table Of Contents
Evaluation Board UG-487 User Guide Features ......................1 Part configuration structures ............3 TABLE OF CONTENTS Supported iCoupler® Models ............. 1 Bypass on the PCB ................3 General Description ................. 1 Provision for loading ................3 Evaluation Board ..................1 EMI Mitigation .................. -
Page 3: Pcb Evaluation Goals
Evaluation Board UG-487 User Guide output voltage supported on this evaluation board. A 20kΩ potentiometer is installed at R1A in series with a 16.5kΩ This board is intended to achieve two goals. PCB EVALUATION GOALS resistor at position R16A making a variable resistance to 1) It will allow a user of the ADuM5010 or of 16.5-36kΩ... -
Page 4: High Voltage Capability
Evaluation Board UG-487 User Guide the edges. Figure 4 shows the top layer guard ring and the bottom layer ground fill as well as the regularly spaced vias This PCB is designed in line with 2500V basic insulation HIGH VOLTAGE CAPABILITY in the guard ring that creates a cage type structure to reflect practices. - Page 5 Evaluation Board UG-487 User Guide Figure 3 Ground and power planes creating stitching capacitance Rev. 0 | Page 5 of 10...
- Page 6 Evaluation Board UG-487 User Guide Figure 4 Edge guard on primary side top and bottom layers Figure 5Power Fill, top layer, primary side Rev. 0 | Page 6 of 10...
-
Page 7: Bill Of Materials
Evaluation Board UG-487 User Guide BILL OF MATERIALS Table 1. Quantity Reference Designator Description DUT1A ADuM5010 C5A, C6A, C16A, C17A 0.1 µF, 25 V, 10%, 0805 C4A, C15A 10 µF, 6.3 V, 10%, 0805 10k Ω, 1/10 W, 1% 0805 16.5k Ω, 1/10 W, 1%, 0805 20k Ω... - Page 8 Evaluation Board UG-487 User Guide NOTES Rev. 0 | Page 8 of 10...
- Page 9 Evaluation Board UG-487 User Guide NOTES Rev. 0 | Page 9 of 10...
- Page 10 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
