One Technology Way P.O. Box 9106 Norwood, MA 02062-9106, U.S.A. Tel: 781.329.4700 Fax: 781.461.3113
Evaluating the

FEATURES

ADUX1020
full configuration
Register level
Parameter level
Graph views
Time series view
Gesture recognition view
UDP transfer capability

EVALUATION KIT CONTENTS

ADUX1020-EVAL-MCM
standard evaluation board
EVAL-SDP-CB1Z
controller board
Mini USB cable

ADDITIONAL EQUIPMENT NEEDED

PC running Windows 7 operating system
ADUX1020-EVALZ-LED
daughterboard (optional)

ONLINE RESOURCES

ADUX1020
data sheet
Optical Gesture Evaluation Tool
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
www.analog.com
ADUX1020
Photometric Sensor for Gesture and Proximity
ADUX1020-EVAL-SDP
Rev. A | Page 1 of 8
ADUX1020-EVAL-SDP User Guide

GENERAL DESCRIPTION

The
ADUX1020-EVAL-SDP
a simple means of interfacing with the ADUX1020, collecting
data from the ADUX1020, and evaluating gesture recognition
capabilities.
The
ADUX1020-EVAL-SDP
SDP-CB1Z
and the ADUX1020-EVAL-MCM.
The evaluation kit requires the
Tool, which can be downloaded from the
SDP
product page, a graphical user interface (GUI) that provides
users with low level and high level configurability, real-time data
analysis, and user datagram protocol (UDP) transfer capability so
the evaluation board can easily interface to a PC.
The USB port of the PC powers the
kit. On-board voltage regulators provide voltage supplies for
the ADUX1020.
The evaluation board schematics indicate signal names for easy
identification. For additional information on the functionality of
the ADUX1020, refer to the

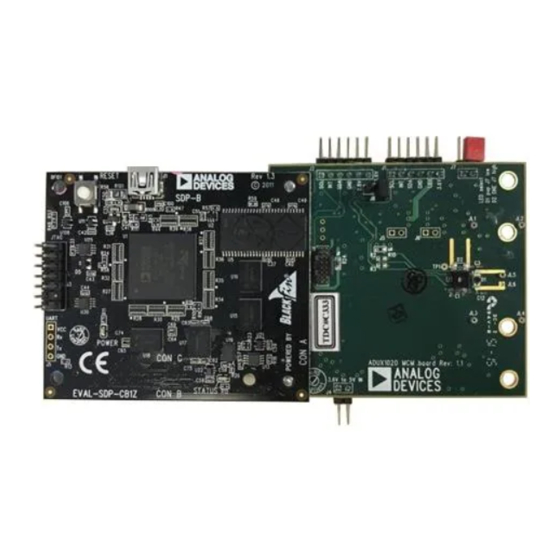

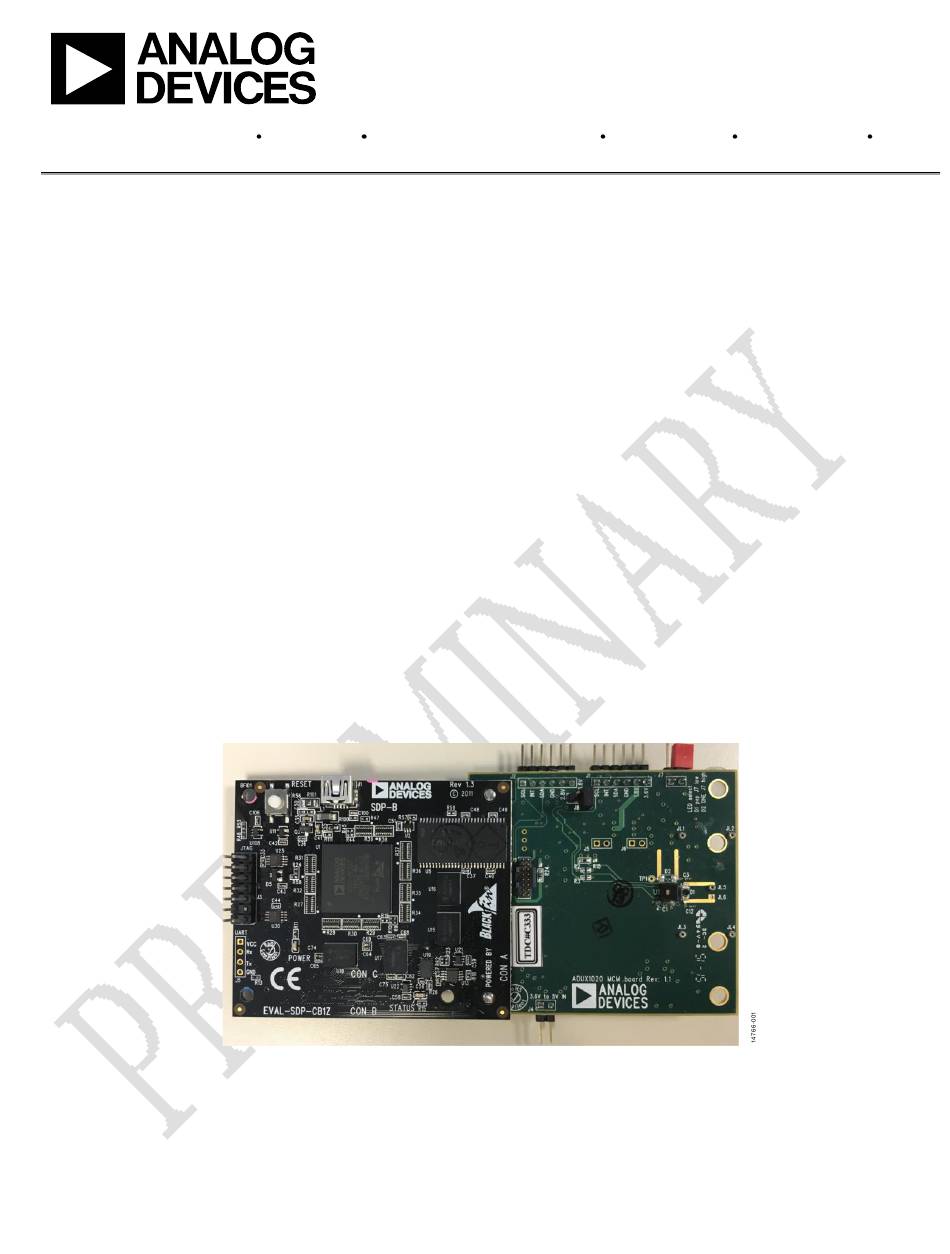

EVALUATION KIT PHOTOGRAPH
Figure 1.
UG1022
evaluation kit provides users with
is a kit that includes the
EVAL-
Optical Gesture Evaluation
ADUX1020-EVAL-
ADUX1020-EVAL-SDP
ADUX1020
data sheet.
