One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the

FEATURES

ADUX1020
full configuration
Register level
Parameter level
Graph views
Time series view
Gesture recognition view
UDP transfer capability

EVALUATION KIT CONTENTS

ADUX1020-EVAL-MCM
ADUX1020-EVAL-SMALL
EVAL-SDP-CB1Z
controller board
Mini USB cable

ADDITIONAL EQUIPMENT NEEDED

PC running Windows 7 operating system
ADUX1020-EVALZ-LED

ONLINE RESOURCES

ADUX1020
data sheet
Optical Gesture Evaluation Tool
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Arrow.com.
Downloaded from
ADUX1020
Photometric Sensor for Gesture and Proximity
standard evaluation board
breakout board
daughterboard (optional)
ADUX1020-EVAL-SDP
ADUX1020-EVAL-SDP User Guide

GENERAL DESCRIPTION

The
ADUX1020-EVAL-SDP
simple means of interfacing with the ADUX1020, collecting data
from the ADUX1020, and evaluating gesture recognition
capabilities.
The
ADUX1020-EVAL-SDP
ADUX1020-EVAL-SMALL
The evaluation kit requires the
which can be downloaded from the
product page, a graphical user interface (GUI) that provides users
with low level and high level configurability, real-time data analysis,
and user datagram protocol (UDP) transfer capability so the
evaluation board can easily interface to a PC.
The USB port of the PC powers the
On-board voltage regulators provide voltage supplies for the
ADUX1020.
The evaluation board schematics indicate signal names for easy
identification. For additional information on the functionality of
the ADUX1020, refer to the

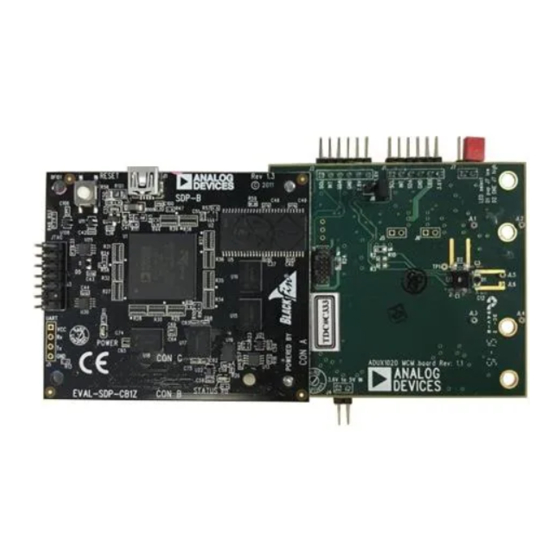

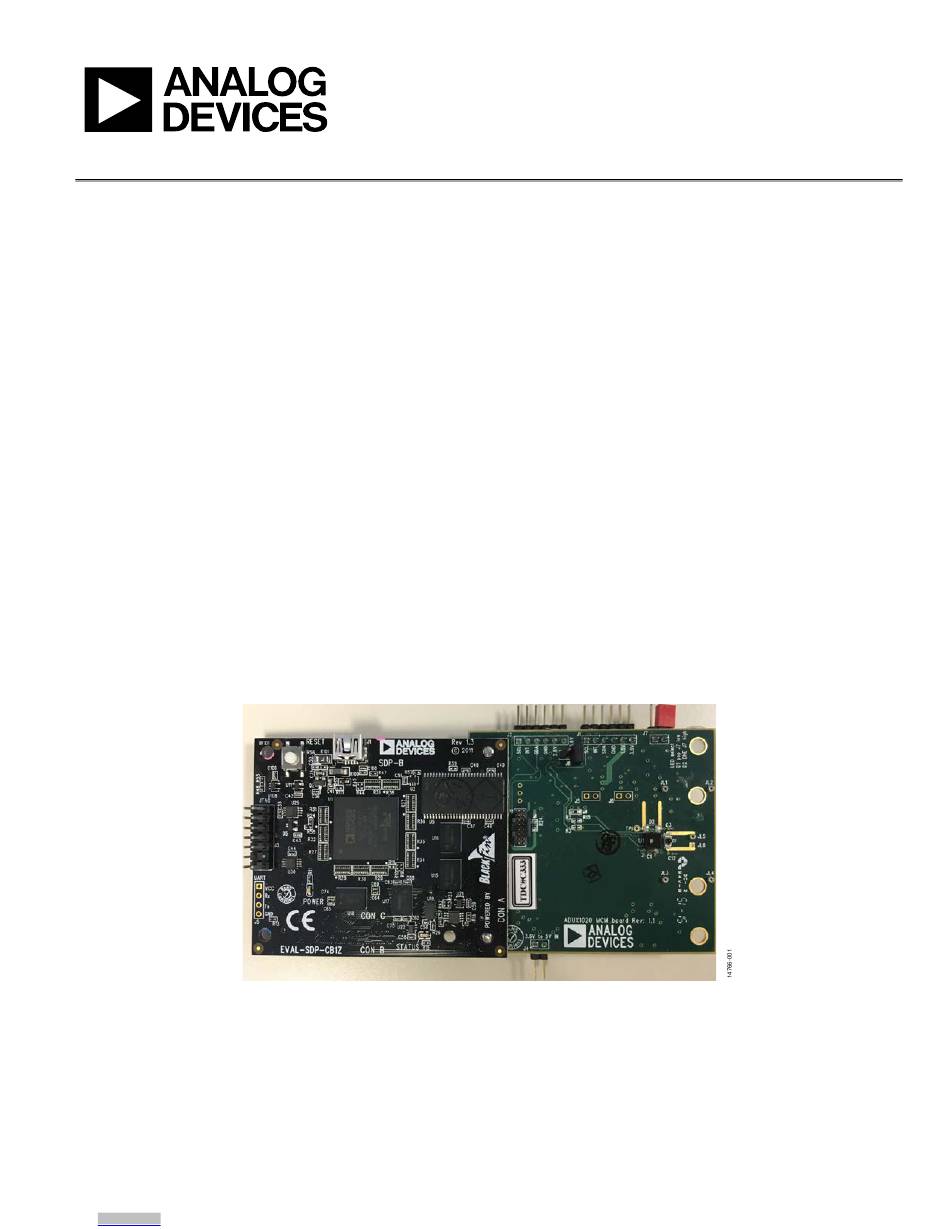

EVALUATION KIT PHOTOGRAPH
Figure 1.
Rev. 0 | Page 1 of 9
UG1022
evaluation kit provides users with a
is a kit that includes the
and the ADUX1020-EVAL-MCM.
Optical Gesture Evaluation
ADUX1020-EVAL-SDP
ADUX1020-EVAL-SDP
ADUX1020
data sheet.
Tool,
kit.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADUX1020-EVAL-SDP and is the answer not in the manual?

Questions and answers

Related Manuals for Analog Devices ADUX1020-EVAL-SDP

Summary of Contents for Analog Devices ADUX1020-EVAL-SDP

  • Page 1: Features

    ADUX1020-EVAL-SDP User Guide UG1022 One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com Evaluating the ADUX1020 Photometric Sensor for Gesture and Proximity FEATURES GENERAL DESCRIPTION ADUX1020-EVAL-SDP evaluation kit provides users with a...

  • Page 2: Table Of Contents

    ADUX1020-EVAL-SDP User Guide TABLE OF CONTENTS Features ....................1 Evaluation Board USB Connection ..........3 Evaluation Kit Contents ..............1 Configuring the ADUX1020-EVAL-SDP Evaluation KIT ..3 Additional Equipment Needed ............1 Streaming Data ................4 Online Resources ................1 Gesture Recognition ..............4 General Description .................

  • Page 3: Evaluation Board Software Quick Start Procedures

    ADUX1020-EVAL-SDP User Guide UG1022 EVALUATION BOARD SOFTWARE QUICK START PROCEDURES INSTALLING THE OPTICAL GESTURE EVALUATION TOOL Download the Optical Gesture Evaluation Tool software package from the ADUX1020-EVAL-SDP product page. Unzip the down- loaded software folder, run the enclosed ADI_OpticalGesture_ EvaluationTool.exe file, and follow the prompts for installing the Optical Gesture Evaluation Tool software (see Figure 2).

  • Page 4: Streaming Data

    UG1022 ADUX1020-EVAL-SDP User Guide GESTURE RECOGNITION To view the gesture recognition capability, navigate to the Gesture Analysis Algorithm tab and select LSLF Swipe determination from the drop-down menu. Click the Play button if the device is not already streaming data.

  • Page 5: Additional Evaluation Boards

    ADUX1020-EVAL-SDP User Guide UG1022 SMALL FORM-FACTOR BREAKOUT BOARD ADDITIONAL EVALUATION BOARDS ADUX1020-EVAL-SMALL is a small form-factor breakout HIGH POWER LED DAUGHTERBOARD board (see Figure 10) for the ADUX1020 that allows easy access ADUX1020-EVALZ-LED is an optional daughterboard for to the ADUX1020 pinout via a standard connector cable.

  • Page 6: Evaluation Board Schematics And Artwork

    UG1022 ADUX1020-EVAL-SDP User Guide EVALUATION BOARD SCHEMATICS AND ARTWORK Figure 12. ADUX1020-EVAL-MCM Evaluation Board Schematic Rev. 0 | Page 6 of 9 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
  • Page 7 ADUX1020-EVAL-SDP User Guide UG1022 Figure 13. ADUX1020-EVAL-SMALL Small Form-Factor Breakout Board Schematic Rev. 0 | Page 7 of 9 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
  • Page 8 UG1022 ADUX1020-EVAL-SDP User Guide Figure 14. ADUX1020-EVALZ-LED High power LED daughterboard Schematic Rev. 0 | Page 8 of 9 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
  • Page 9 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
