Standard Mode
In standard mode, each pair is individually controlled by a selection of registers, as shown in Table 266.
Table 266. Compare Register Descriptions in Standard Mode (Base Address: 0x40024000)
Pair Name
0 PWM0COM0
PWM0COM1
PWM0COM2
PWM0LEN
1 PWM1COM0
PWM1COM1
PWM1COM2
PWM1LEN
2 PWM2COM0
PWM2COM1
PWM2COM2
PWM2LEN
3 PWM3COM0
PWM3COM1
PWM3COM2
PWM3LEN
Description
PWM0 output goes high when the PWM timer reaches the count value stored in this register.
PWM0 output goes low when the PWM timer reaches the count value stored in this register.
PWM1 output goes low when the PWM timer reaches the count value stored in this register.
PWM1 output goes high when the PWM timer reaches the count value stored in this register.
PWM2 output goes high when the PWM timer reaches the count value stored in this register.
PWM2 output goes low when the PWM timer reaches the count value stored in this register.
PWM3 output goes low when the PWM timer reaches the count value stored in this register.
PWM3 output goes high when the PWM timer reaches the count value stored in this register.
PWM4 output goes high when the PWM timer reaches the count value stored in this register.
PWM4 output goes low when the PWM timer reaches the count value stored in this register.
PWM5 output goes low when the PWM timer reaches the count value stored in this register.
PWM5 output goes high when the PWM timer reaches the count value stored in this register.
PWM6 output goes high when the PWM timer reaches the count value stored in this register.
PWM6 output goes low when the PWM timer reaches the count value stored in this register.
PWM7 output goes low when the PWM timer reaches the count value stored in this register.
PWM7 output goes high when the PWM timer reaches the count value stored in this register.
1
2

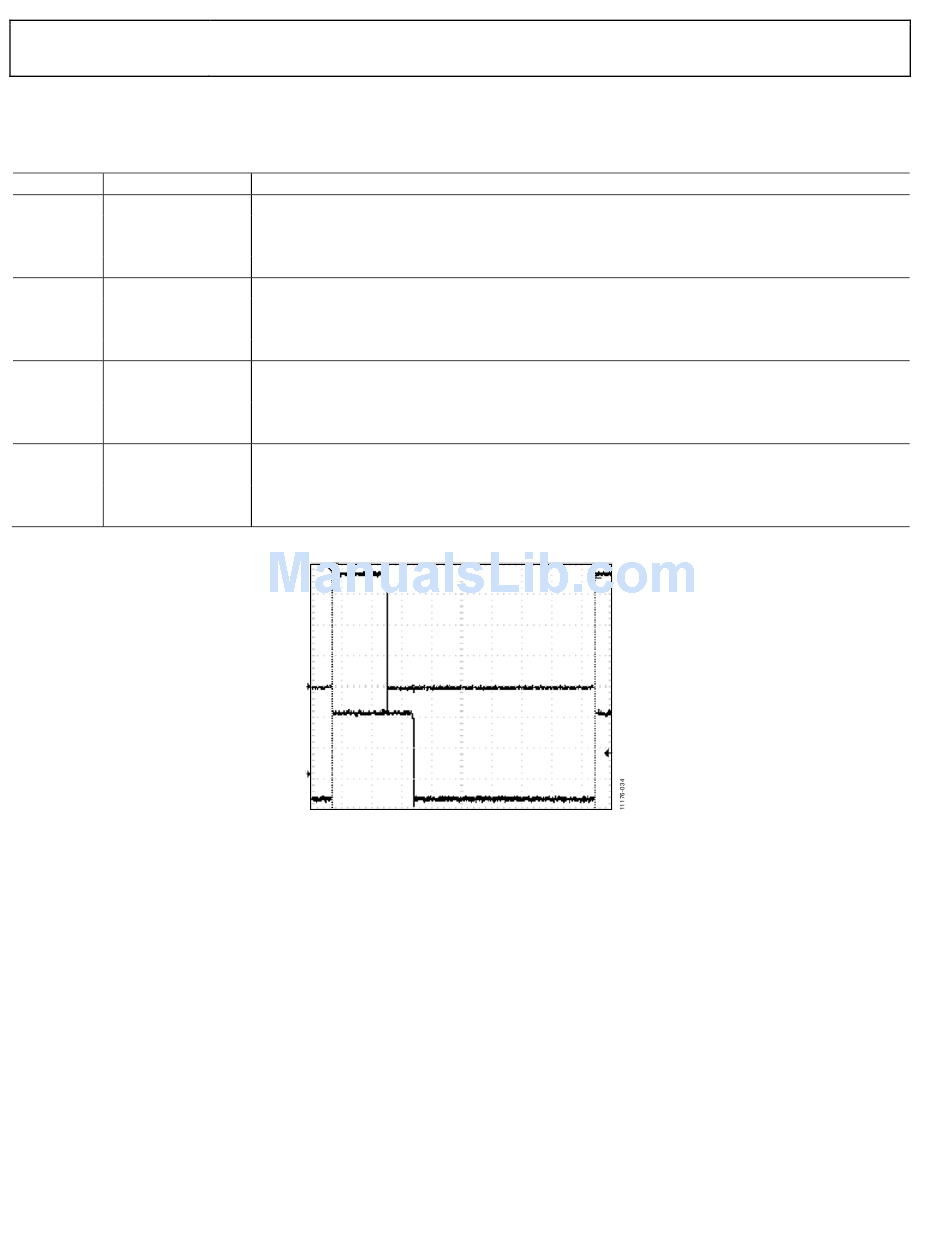

Figure 33. PWM Output on PWM0 and PWM1 Pins (PWM0 is Channel 2)
