[2] TREADS ADJUSTMENT

CAUTION
• When working on slopes or working with trailer, set the wheel tread as wide as practice for the job for
maximum stability.
• Support tractor securely on stands before removing a wheel.
• Do not work under any hydraulically supported devices. They can settle, suddenly leak down, or be
accidentally lowered. If necessary to work under tractor or any machine elements for servicing or
adjustment, securely support them with stands or suitable blocking beforehand.
• Never operate tractor with a loose rim, wheel, or axle.

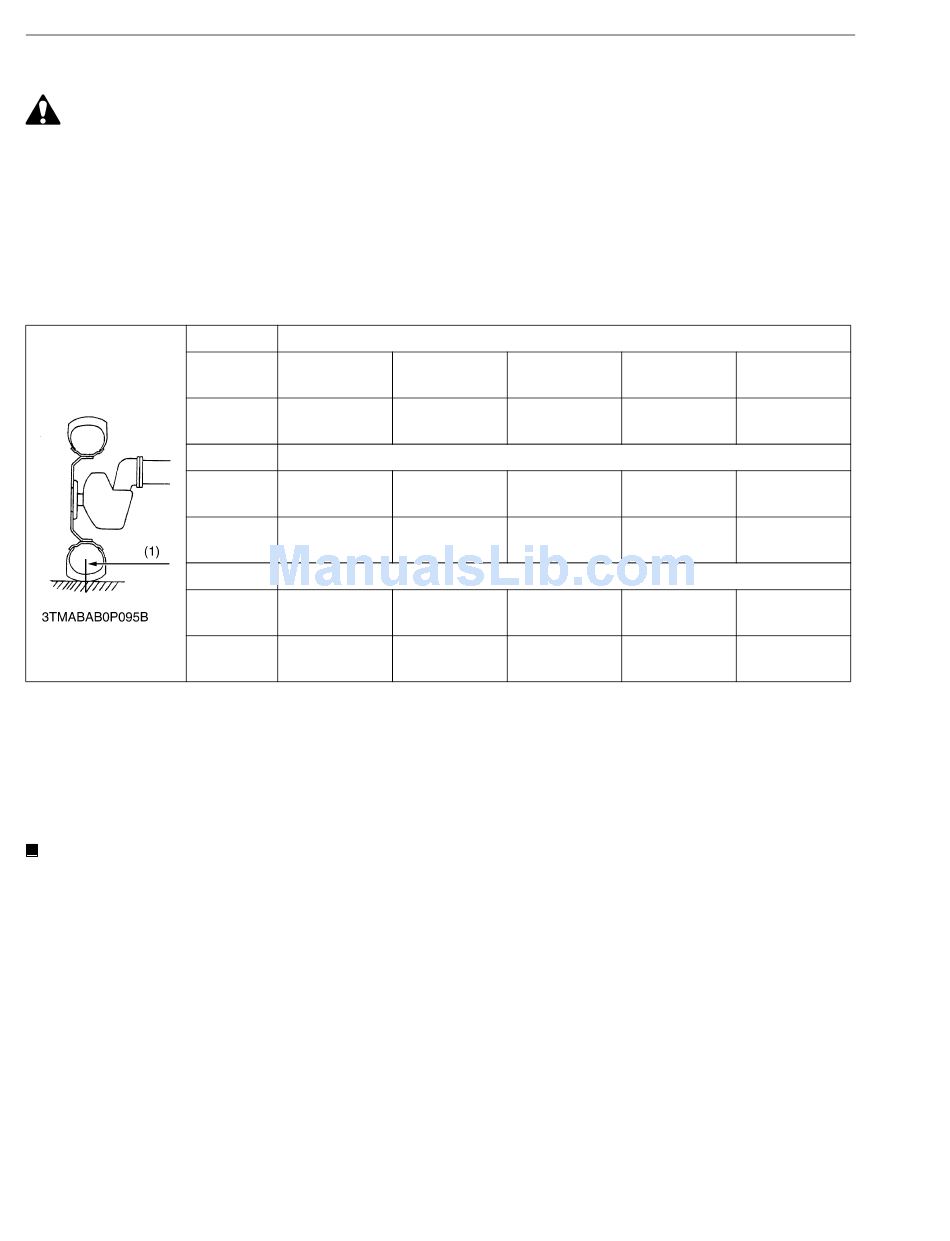

(1) Front Wheels

Front axle is not adjustable
(1) Tread

(2) Rear Wheels

Rear tread can be adjusted in 6 steps depending on the model.
To change the tread
1. Lift the rear tires off the ground.
2. Follow the illustrations below to get the desired tread width.
IMPORTANT
• If not attached as illustrated, transmission parts may be damaged.
• When re-fitting or adjusting a wheel, tighten the bolts to the following torques then recheck after driving
the tractor 200 m (200 yards) and thereafter according to service interval.
Models
7-16
Tire
Farm
1150 mm
Tread
(45.3 in.)
Models
7-16
Tire
Farm
1150 mm
Tread
(45.3 in.)
Models
Tire –
Tread –
L3130, L3430
– –
– –
L3830, L4630
8-16
–
Farm
1145 mm
–
(45.1 in.)
L5030
9.5-16
–
Farm
1135 mm
–
(44.7 in.)
G-56
G GENERAL
212/80-D15
–
Turf
1180 mm
–
(46.5 in.)
29 × 12.00-
212/80-D15
Turf 15 Turf
1180 mm 1270 mm
(46.5 in.) (50.0 in.)
29 × 12.00-
–
15 Turf
1210 mm
–
(47.6 in.)
