wsm L503 Workshop Manual page 70

L3130 · L3430 · L3830 · L4630 · L5030, WSM

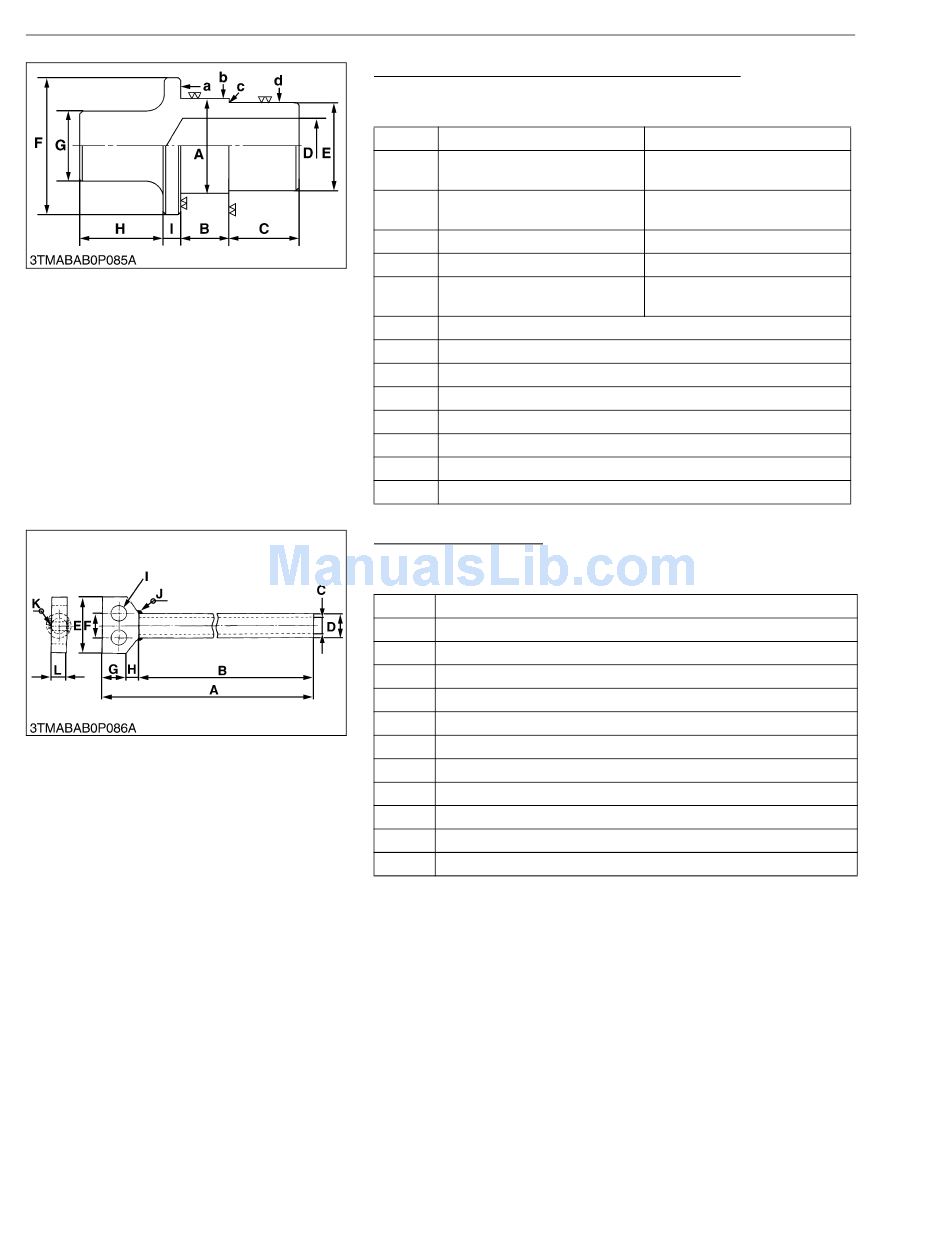

Hydraulic Arm Shaft Bushing Press-Fitting Tool
Application: Use for replacing the hydraulic arm shaft bushings in
the hydraulic cylinder body.
Right
54.7 to 54.9 mm
A
(2.1535 to 2.1614 in.)
24.5 to 25.5 mm
B
(0.9646 to 1.0039 in.)
C 40 mm (1.57 in.)
D 32 mm (1.26 in.)
49.7 to 49.9 mm
E
(1.9567 to 1.9646 in.)
F 70 mm dia. (2.76 in. dia.)
G 40 mm dia. (1.57 in. dia.)
H 50 mm (1.97 in.)
I 10 mm (0.39 in.)
6.3 μm (250 μin.)
a
6.3 μm (250 μin.)
b
6.3 μm (250 μin.)
c
6.3 μm (250 μin.)
d
Draft Control Test Bar
Application: Use for checking the lift range and floating range of
hydraulic draft control.
A 1045 mm (41.14 in.)
B 1000 mm (29.37 in.)
C 20 mm dia. (0.79 in. dia.)
D 30 mm dia. (1.18 in. dia.)
E 90 mm (3.54 in.)
F 30 mm (1.18 in.)
G 30 mm (1.18 in.)
H 15 mm (0.59 in.)
I 20 mm dia. (0.79 in. dia.)
J Weld all around
K Weld all around
L 20 mm (0.79 in.)
G-50
G GENERAL
Left
49.7 to 49.9 mm
(1.9567 to 1.9646 in.)
21.5 to 22.5 mm
(0.8465 to 0.8858 in.)
40 mm (1.57 in.)
30 mm (1.18 in.)
44.7 to 44.9 mm
(1.7598 to 1.7677 in.)
W10316550
W10625190
KiSC issued 02, 2007 A
