L3130 · L3430 · L3830 · L4630 · L5030, WSM

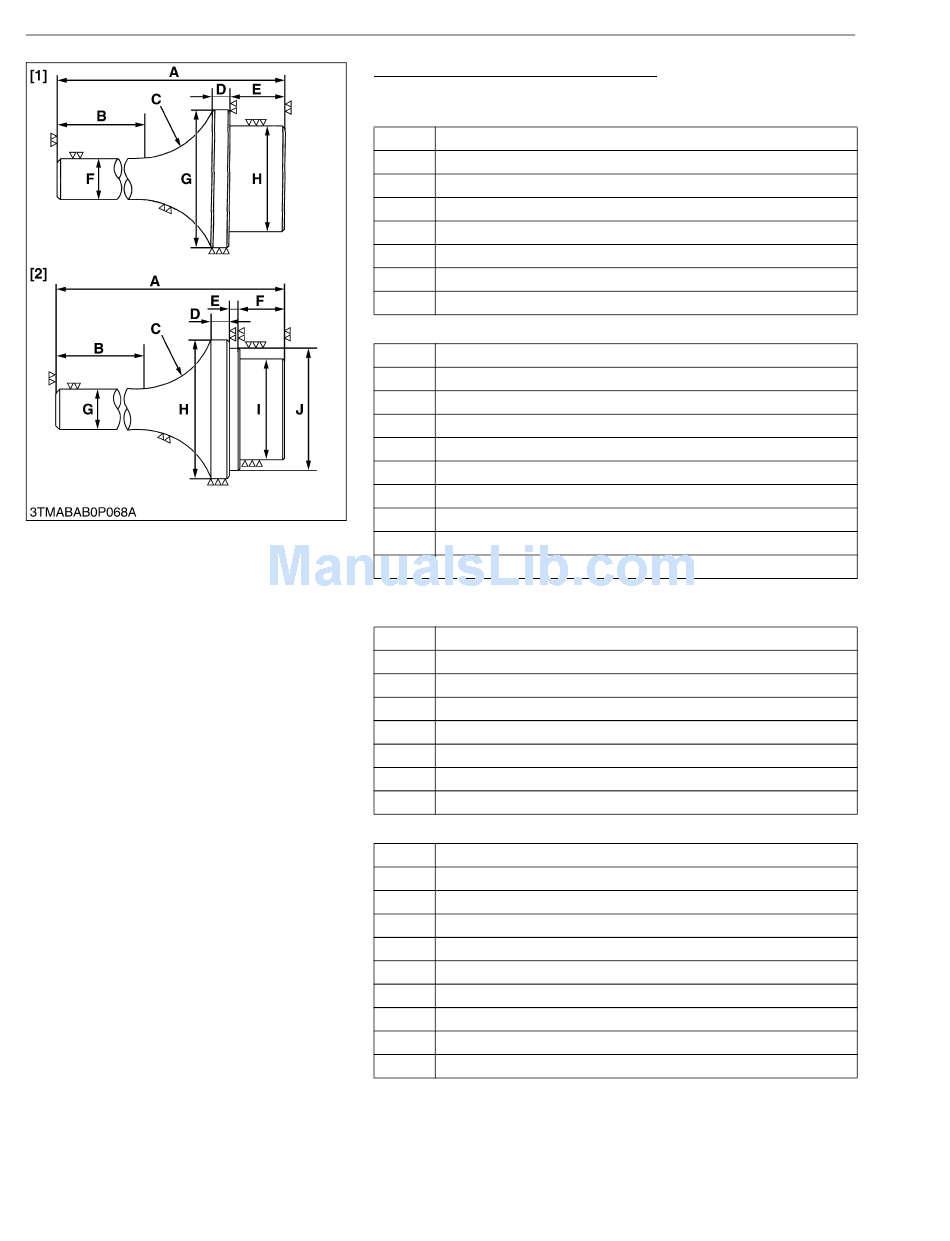

Crankshaft Bearing 1 Replacing Tool
Application: Use to press out and press fit the crankshaft bearing 1.
1. Extracting tool (D1503, D1703, V2203)
A 135 mm (5.31 in.)
B 72 mm (2.83 in.)
C R40 mm (R1.57 in.)
D 10 mm (0.39 in.)
E 20 mm (0.79 in.)
F 20 mm dia. (0.79 in. dia.)
G 56.8 to 56.9 mm dia. (2.236 to 2.240 in. dia.)
H 51.8 to 51.9 mm dia. (2.039 to 2.043 in. dia.)
2. Inserting tool (D1503, D1703, V2203)
A 130 mm (5.12 in.)
B 72 mm (2.83 in.)
C R40 mm (R1.57 in.)
D 9 mm (0.35 in.)
E 4 mm (0.16 in.)
F 20 mm (0.79 in.)
G 20 mm dia. (0.79 in. dia.)
H 68 mm dia. (2.68 in. dia.)
I 51.8 to 51.9 mm dia. (2.039 to 2.043 in. dia.)
J 56.8 to 56.9 mm dia. (2.236 to 2.240 in. dia.)
1. Extracting tool (D1803, V2403)
A 135 mm (5.31 in.)
B 72 mm (2.83 in.)
C R40 mm (R1.57 in.)
D 10 mm (0.39 in.)
E 20 mm (0.79 in.)
F 20 mm dia. (0.79 in. dia.)
G 64.8 to 64.9 mm dia. (2.551 to 2.555 in. dia.)
H 59.8 to 59.9 mm dia. (2.354 to 2.358 in. dia.)
2. Inserting tool (D1803, V2403)
A 130 mm (5.12 in.)
B 72 mm (2.83 in.)
C R40 mm (R1.57 in.)
D 9 mm (0.35 in.)
E 4 mm (0.16 in.)
F 20 mm (0.79 in.)
G 20 mm dia. (0.79 in. dia.)
H 68 mm dia. (2.68 in. dia.)
I 59.8 to 59.9 mm dia. (2.354 to 2.358 in. dia.)
J 64.8 to 64.9 mm dia. (2.551 to 2.555 in. dia.)
G-44
G GENERAL
W10261390
KiSC issued 02, 2007 A
