L3130 · L3430 · L3830 · L4630 · L5030, WSM

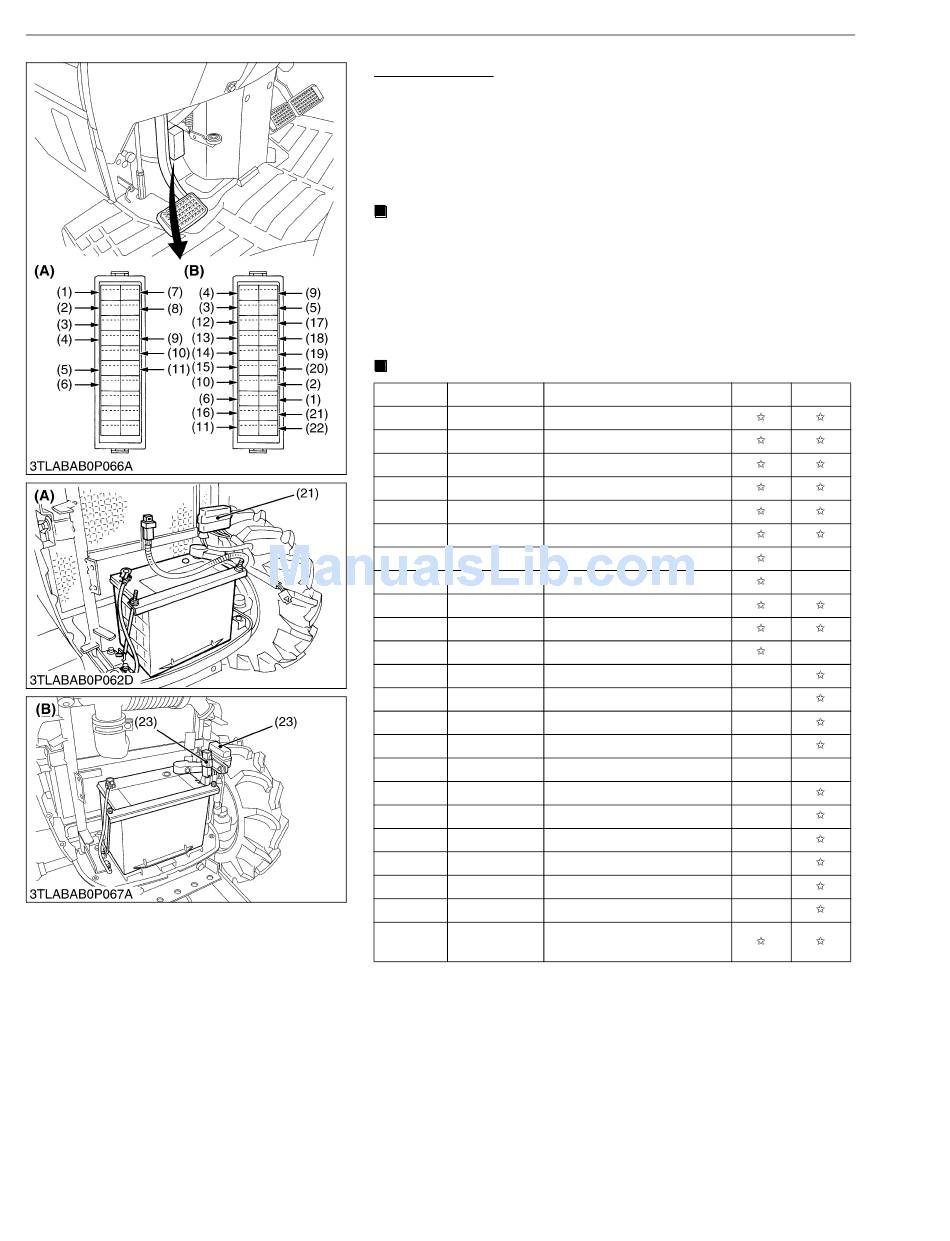

Replacing Fuse
1. The tractor electrical system is protected from potential damage
by fuses.
A blown fuse indicates that there is an overload or short
somewhere in the electrical system.
2. If any of the fuses should blow, replace with a new one of the
same capacity.
IMPORTANT
• Before replacing a blown fuse, determine why the fuse blew
and make any necessary repairs.
procedure may result in serious damage to the tractor
electrical system. Refer to troubleshooting section of this
manual.
If any of them should blow, replace with a new one of the
same capacity.
Protected Circuit
Fuse No. Capacity (A)
1 25 Head lights
2 20 Flasher
3 20 Hazard
4 5 Panel
5 7.5 Alternator
6 5 Lamp relay
7 7.5 Work light
8 5 Brake lamp switch
9 5 Key stop
10 30 Starter relay
11 7.5 Position lamp
12 5 T/M controller 1 (GST Type)
13 10 Dome lamp
14 15 Aircon blower
15 10 Radio casette
16 10 Patrol lamp
17 10 T/M controller 2 (GST Type)
18 20 Cigar lighter
19 7.5 Aircon compressor
20 30 Wiper
21 15 Work light
22 30 Defogger
Slow blow Check circuit against wrong
23
fuse battery connection.
(A) ROPS Model
G-36
G GENERAL
Failure to follow this
Protected circuit ROPS
–
–
–
–
–
–
–
–
–
–
–
(B) CABIN Model
CABIN
–
–
–
–
W1039315
KiSC issued 02, 2007 A
