L3130 · L3430 · L3830 · L4630 · L5030, WSM

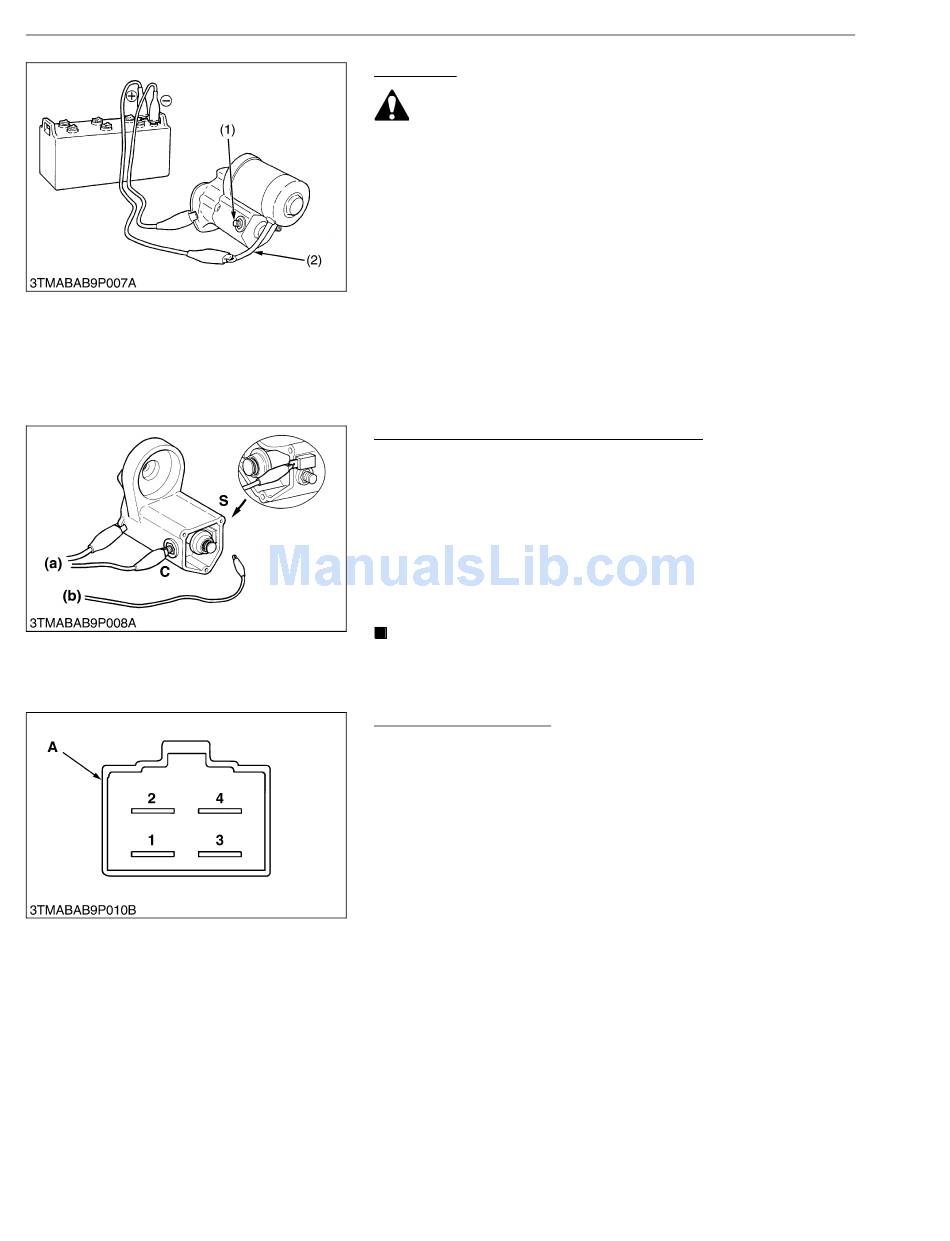

Motor Test
CAUTION
• Secure the starter to prevent it from jumping up and down
while testing the motor.
1. Disconnect the battery negative cable from the battery.
2. Disconnect the battery positive cable and the leads from the
starter B terminal.
3. Remove the starter from the engine.
4. Disconnect the connecting lead (2) from the starter C terminal
(1).
5. Connect a jumper lead from the connecting lead (2) to the battery
positive terminal post.
6. Connect a jumper lead momentarily between the starter motor
housing and the battery negative terminal post.
7. If the motor does not run, check the motor.
(1) C Terminal
Magnet Switch Test (Pull-in, Holding Coils)
1. Remove the motor from the starter housing.
2. Prepare a 12 V battery for the test.
3. Connect jumper leads from the battery negative terminal to the
housing and the starter C terminal.
4. The plunger should be attached and the pinion gear should pop
out when a jumper lead is connected from the battery positive
terminal to the S terminal. It's a correct.
5. Disconnect the jumper lead to the starter C terminal. Then the
pinion gear should remain popped out. It's a correct.
IMPORTANT
• Testing time must be 3 to 5 sec..
(a) To Negative Terminal
Checking Starter Relay
1. Remove the panel cover and meter panel. (See page 9-S23.)
2. Remove the starter relay.
3. Apply battery voltage between the terminal 3 and the terminal 4,
and check the continuity of between the terminal 1 and the
terminal 2.
4. If the continuity is not established, renew the starter relay.
A : Connector of Starter Relay
9-S38
ELECTRICAL SYSTEM
(2) Connecting Lead
W10142670
(b) To Positive Terminal
W10146900
W1026991
KiSC issued 02, 2007 A
