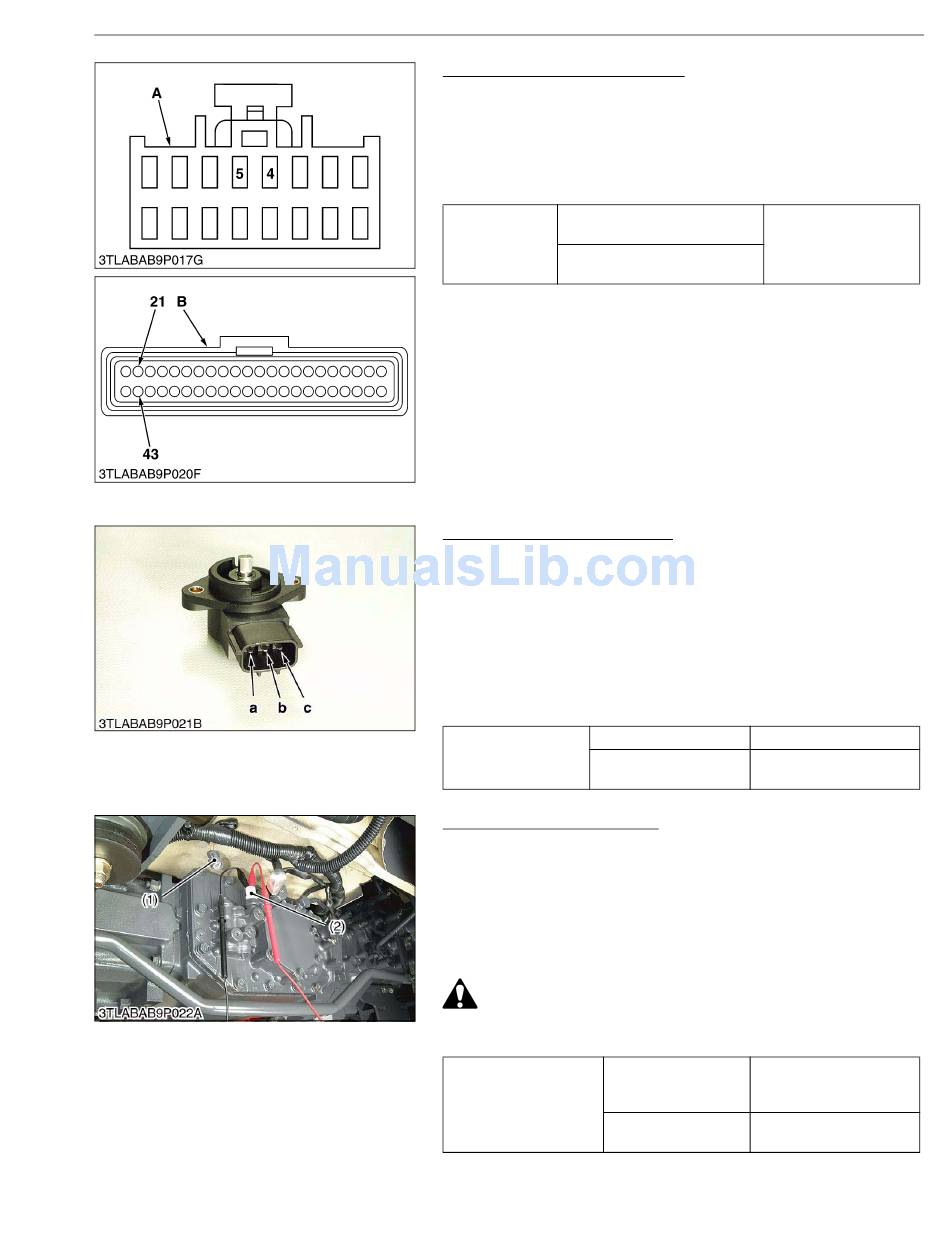

(C) Checking Sensor and Switch
IntelliPanel and ECU Continuity
1. Disconnect the connector B (16P) from IntelliPanel. (See page
9-S23.)
2. Measure the resistance between terminal 4 of panel connector
and terminal 21 of ECU connector, and between terminal 5 of
panel connector and terminal 43.
3. If 0 Ω is not indicated, the wiring harness is faulty.
Terminal 4 of panel connector
-Terminal 21 of ECU connector
Resistance
Terminal 5 of panel connector
-Terminal 43 of ECU connector
A : Panel Connector B of Wire
Harness SIde
GST Lever Sensor Resistance
1. Measure the resistance between terminal a and c when the shaft
is fully turned left.
2. Then, check resistance between terminal a and b while slowly
turning the sensor shaft.
3. It is OK if the resistance value approximates to the value shown
in the table below.
(Reference)
• The change of resistance can be checking easily when an analog
tester is employed.
Terminal a - Terminal c
Resistance
Terminal a - Terminal b
Pressure Switch Resistance
1. Disconnect the pressure switch connector (1).
2. Connect the circuit tester pins to each terminal of pressure switch
(2).
3. Start the engine and depress the clutch pedal.
4. Check the resistance at time when shuttle lever or GST lever is
shifted.
5. It is OK if the resistance comes to have shown in the table below.
CAUTION
• Be sure to depress the clutch pedal so that the tractor
should not move while shifting each lever.
When the shuttle
lever or GST lever is
Resistance between
shifted
terminals
Both levers are at
Neutral
(1) Pressure Switch Connector
9-S31
ELECTRICAL SYSTEM
0 Ω
B : ECU Connector B of Wire Harness
SIde
W1041490
1.6 to 2.4 kΩ
Resistance is normal if
smoothly changing
W1041711
Continuity exists
0 Ω
(2) Pressure Switch
