L3130 · L3430 · L3830 · L4630 · L5030, WSM

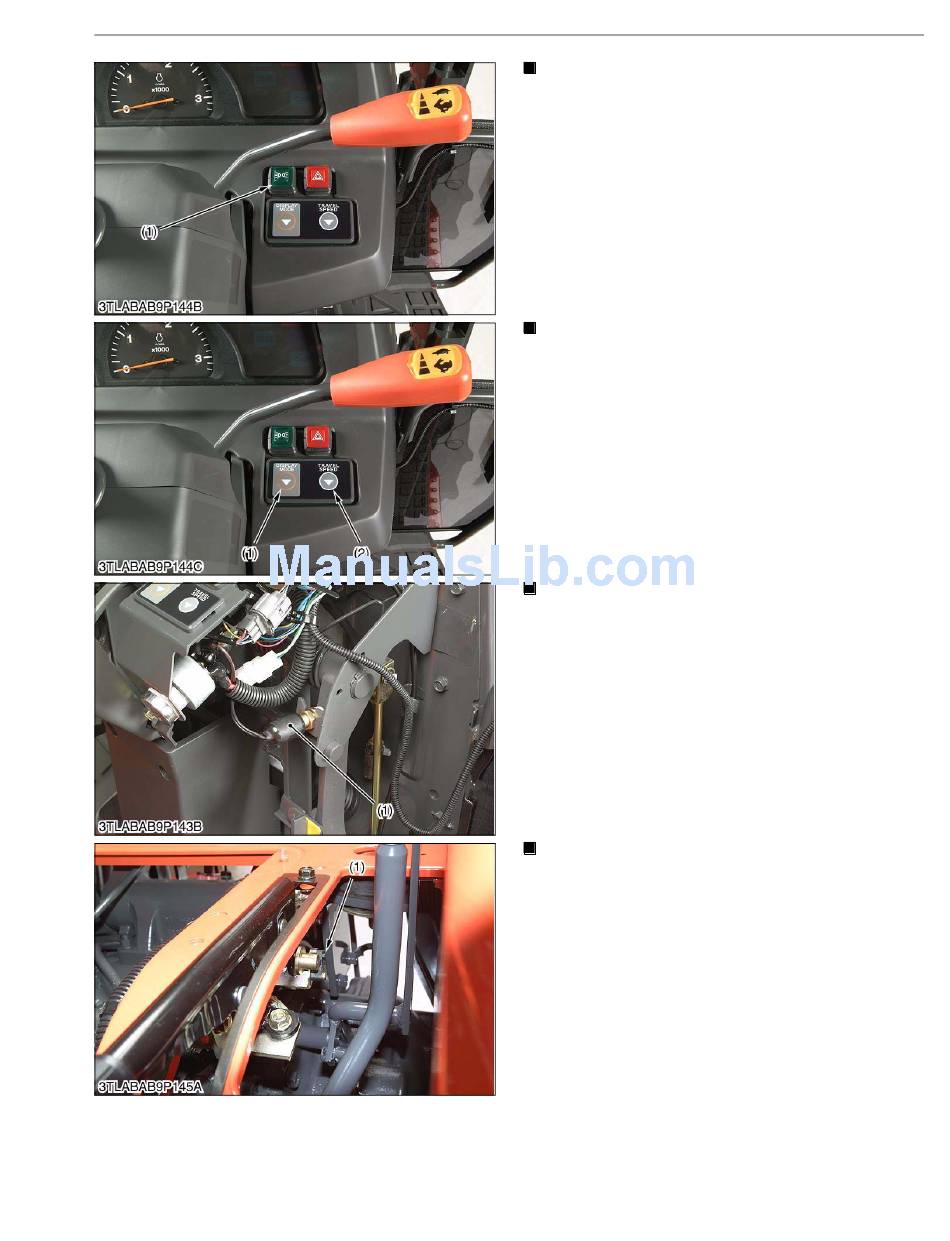

Position Switch
Position switch (1) is used to lighting the position
lamp. The lamp in this switch is lighted up when this
switch is ON.
(1) Position Switch
Display Mode Switch and Travel Speed Switch
These switches are located at the right of the
IntelliPanel and both are of tact type. Usually, the display
mode switch (1) is used at the switching of display
indication, and the traveling speed switch (2) is used to
switching to the traveling speed display as well as at data
input and fine adjustment.
(1) Display Mode Switch
Brake Lamp Switch
This switch is mounted on the brake pedal. When the
brake pedal is depressed, this switch is turned on and the
brake lamp is lighting.
(1) Brake Lamp Switch
Parking Brake Switch
This switch (1) is turned on and off interlocked with
the parking brake lever. It is switched on when the
parking brake lever is pulled up, thereby sending a signal
to light up the pilot lamp at the IntelliPanel.
(1) Parking Brake Switch
9-M11
ELECTRICAL SYSTEM
W1019828
(2) Traveling Speed Switch
W1014375
W1020505
W1014449
KiSC issued 02, 2007 A
