wsm L503 Workshop Manual page 43

L3130 · L3430 · L3830 · L4630 · L5030, WSM

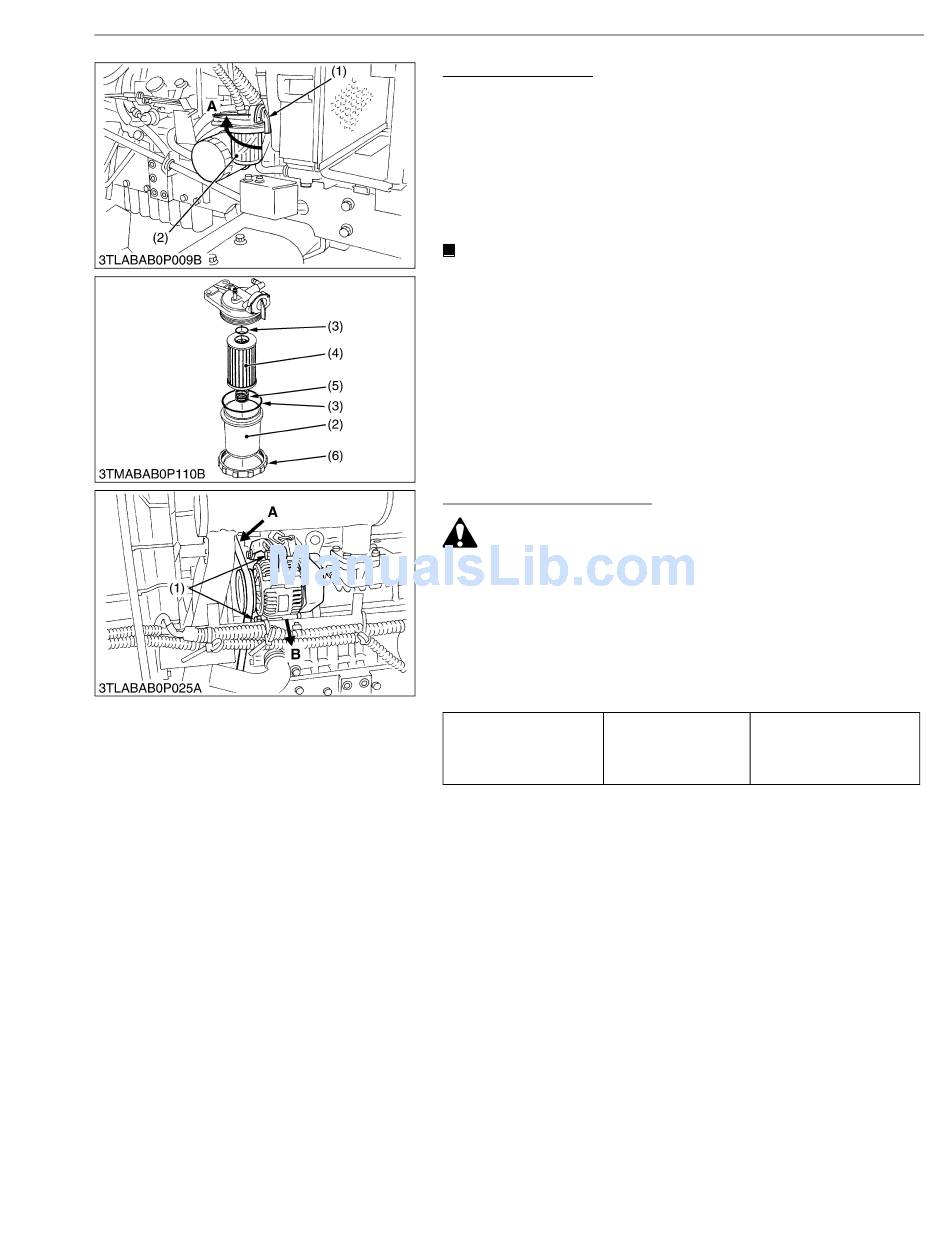

Cleaning Fuel Filter
This job should not be done in the field, but in a clean place.
1. Close the fuel filter cock (1).
2. Unscrew the screw ring and remove the fuel filter bowl (2), and
rinse the inside with kerosene.
3. Take out the filter element (4) and dip it in the kerosene to rinse.
4. After cleaning, reassemble the fuel filter, keeping out dust and
dirt.
5. Bleed the fuel system. (See page G-34.)
IMPORTANT
• If dust and dirt enters the fuel system the fuel pump and
injection nozzles are subject to premature wear. To prevent
this, be sure to clean the fuel filter and element bowl
periodically.
(1) Fuel Cock
(2) Fuel Filter Bowl
(3) O-ring
Adjusting Fan Belt Tension
CAUTION
• Be sure to stop the engine before checking fan belt tension.
1. Stop the engine and remove the key.
2. Apply moderate thumb pressure to belt between pulleys.
3. If tension is incorrect, loosen the alternator mounting bolts and
using a lever placed between the alternator and the engine block,
pull the alternator out until the deflection of the belt falls within the
factory specifications.
4. Replace fan belt if it is damaged.
Fan belt tension Factory spec.
(1) Alternator Mounting Bolt
G-23
G GENERAL
(4) Filter Element
(5) Spring
(6) Screw Ring
A : Close
W1078193
A deflection of between 7
to 9 mm (0.28 to 0.34 in.)
when the belt is pressed
in the middle of the span.
A : Check the belt tension
B : To Tighten
W10326270
KiSC issued 02, 2007 A
