L3130 · L3430 · L3830 · L4630 · L5030, WSM

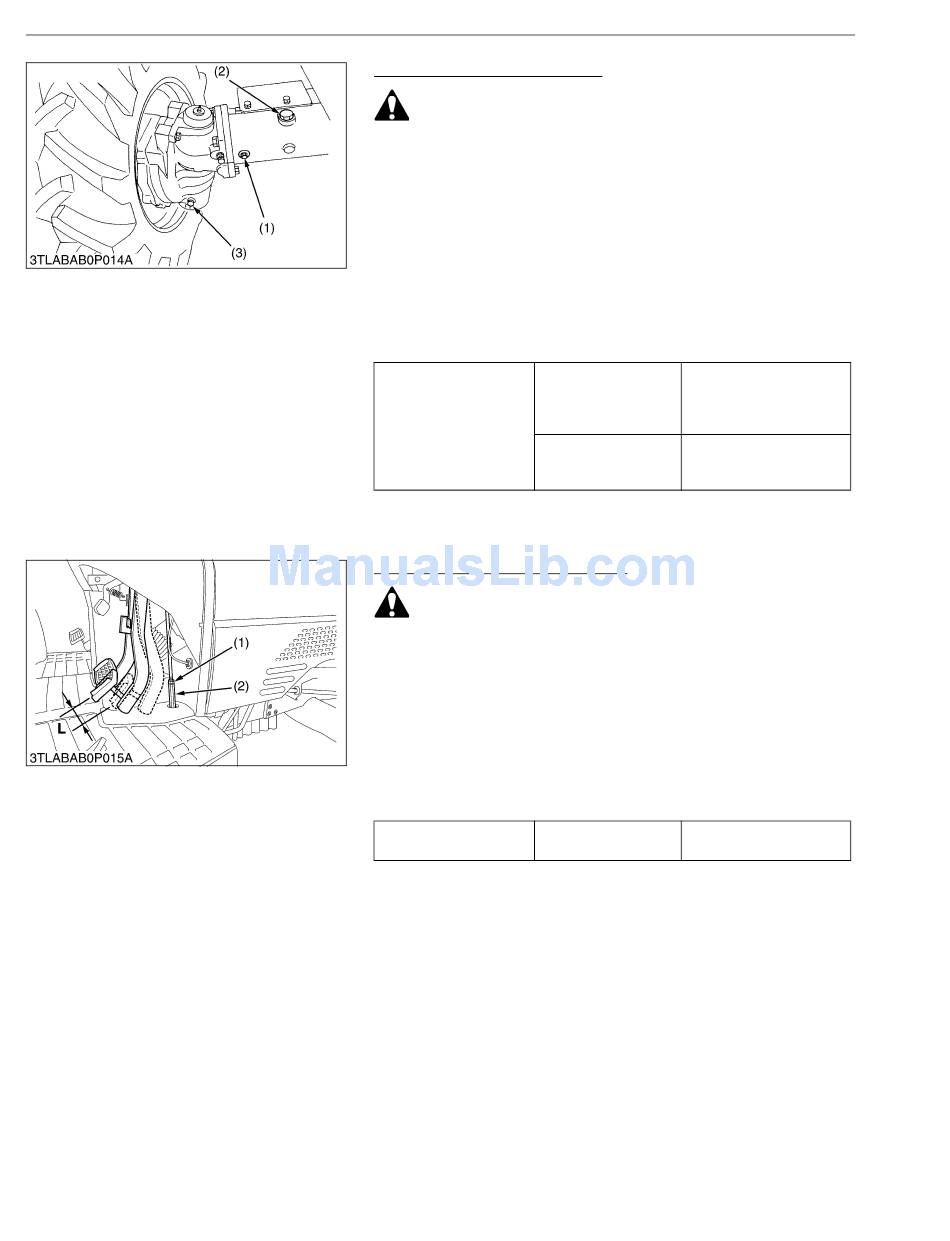

Changing Front Axle Case Oil
CAUTION
• Be sure to stop the engine before changing the front axle
case oil.
• Allow engine to cool down sufficiently, oil can be hot and
can burn.
1. Remove the right and left drain plugs (3) and filling plug (2) at the
front axle case and drain the oil completely.
2. After draining, reinstall the drain plugs (3).
3. Remove the right and left check plugs (1).
4. Fill new oil from filling port with specified amount of oil.
Refer to "LUBRICANTS, FUEL AND COOLANT". (See page
G-7, 8.)
5. Reinstall the filling plug (2) and check plug (1).
L3130
L3430
L3830
Front axle case oil
L4630
capacity
L5030
(1) Check Plug
(2) Filling Plug
Adjuting Brake Pedal Free Travel
CAUTION
• Stop the engine and chock the wheels before checking
brake pedal.
1. Release the parking brake.
2. Slightly depress the brake pedals and measure free travel (L) at
top of pedal stroke.
3. If the measurement is not within the factory specifications, loosen
the lock nut (1) and turn the turnbuckle (2) to adjust the rod length
within acceptable limits.
4. Retighten the lock nut (1) securely.
Keep the free travel in the right and left brake pedals equal.
Brake pedal free travel
Factory spec.
"L"
(1) Lock Nut
(2) Turnbuckle
G-18
G GENERAL
6.5 L
6.9 U.S.qts
5.7 Imp.qts
6.0 L
6.3 U.S.qts
5.3 Imp.qts
(3) Drain Plug
W10300640
15 to 20 mm
0.59 to 0.79 in.
L : Free Travel
W10293350
KiSC issued 02, 2007 A
